Spring Boot Statistics

Dashboard for Spring Boot2 Statistics(by micrometer-prometheus).

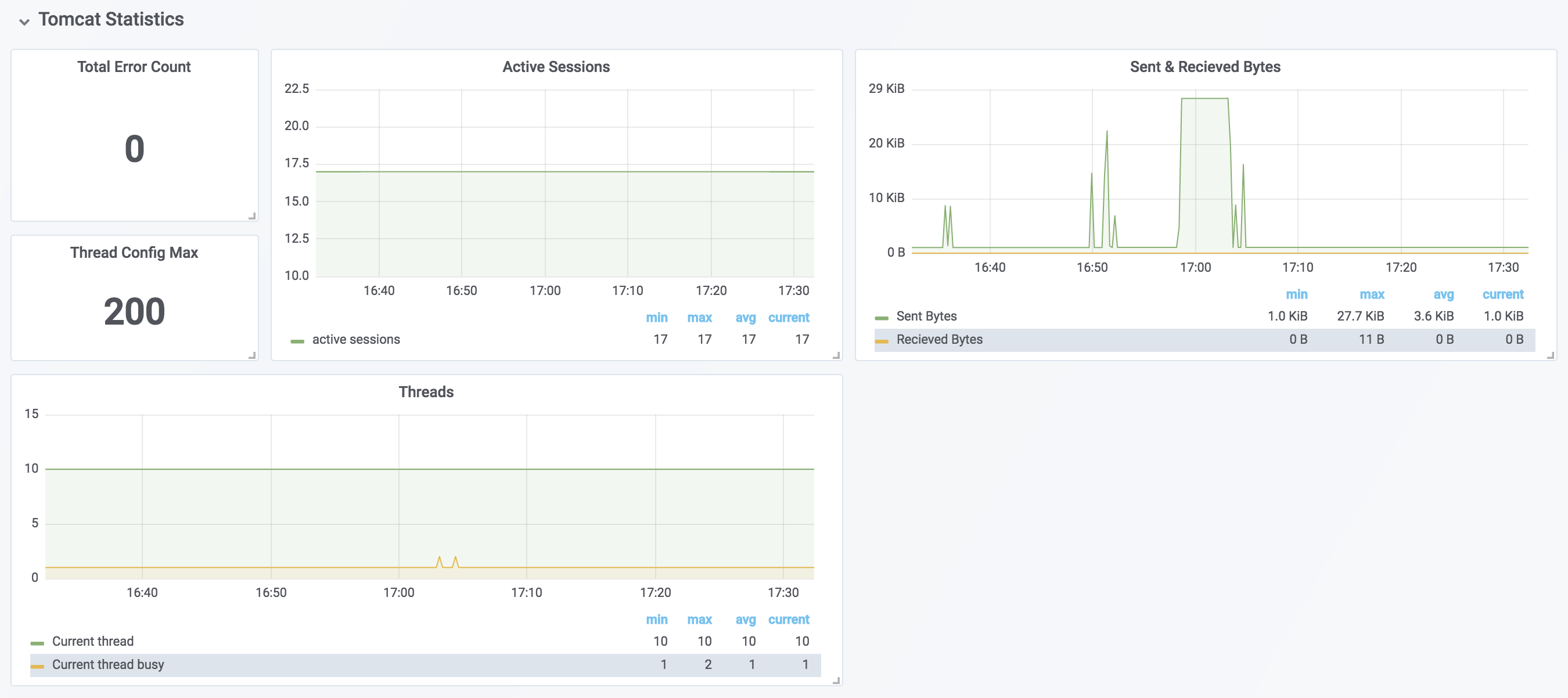

Spring Boot Statistics screenshot 1

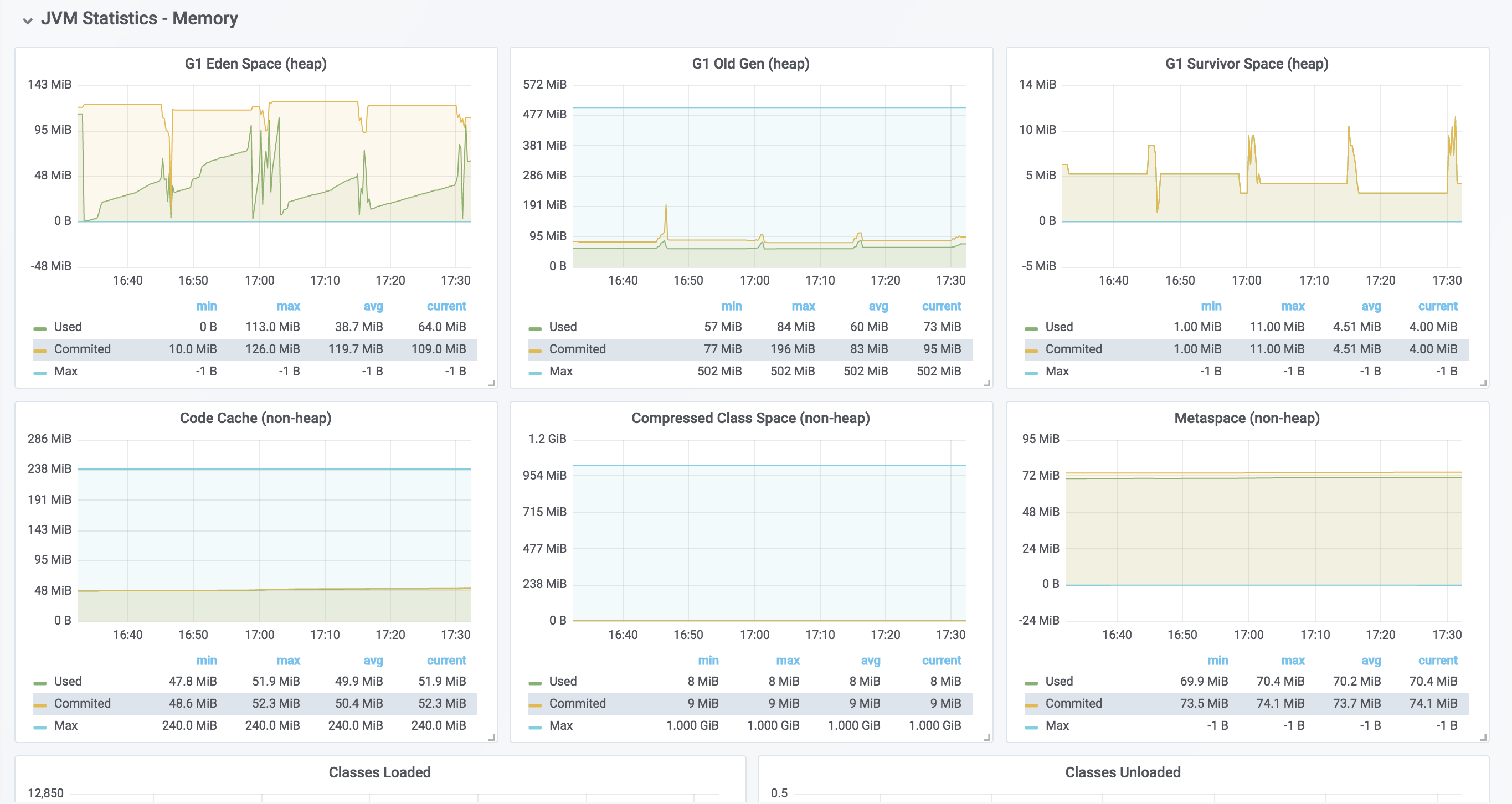

Spring Boot Statistics screenshot 2

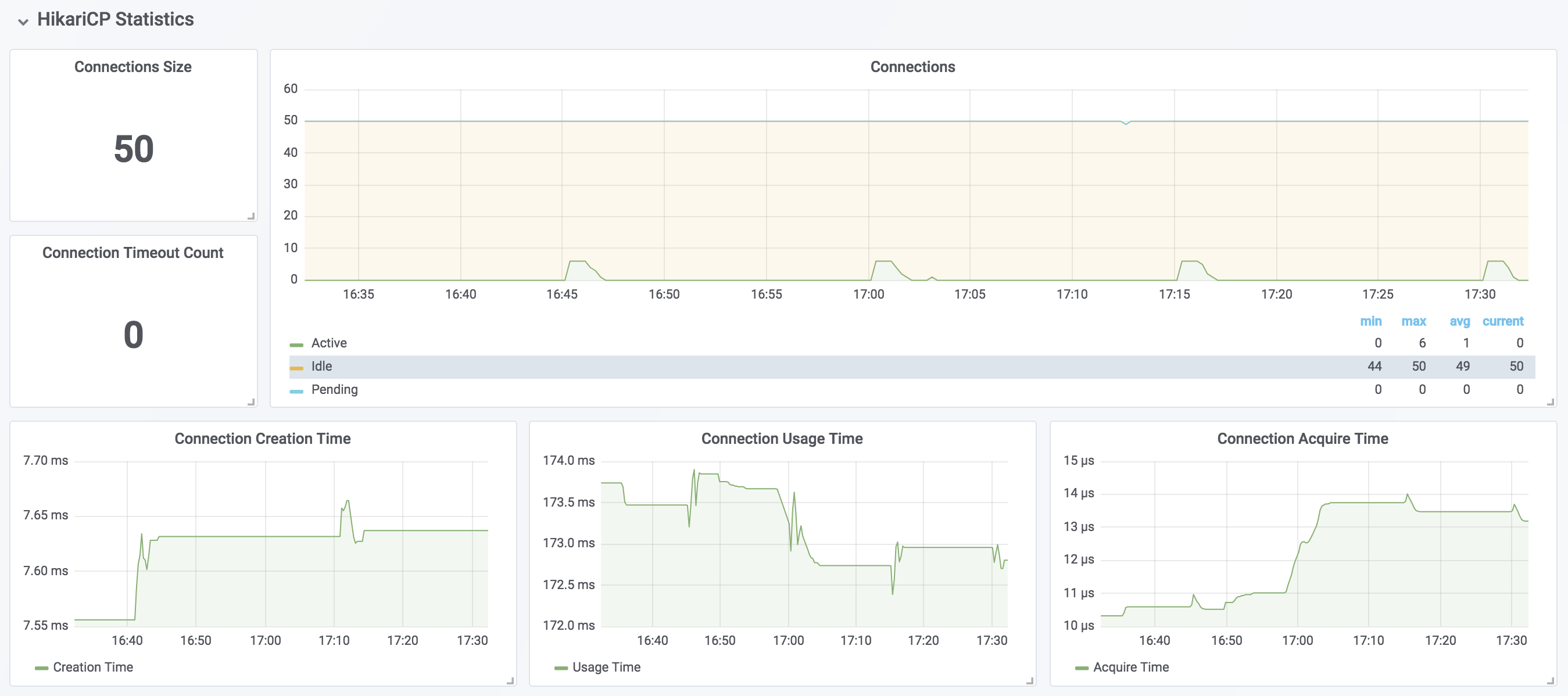

Spring Boot Statistics screenshot 3

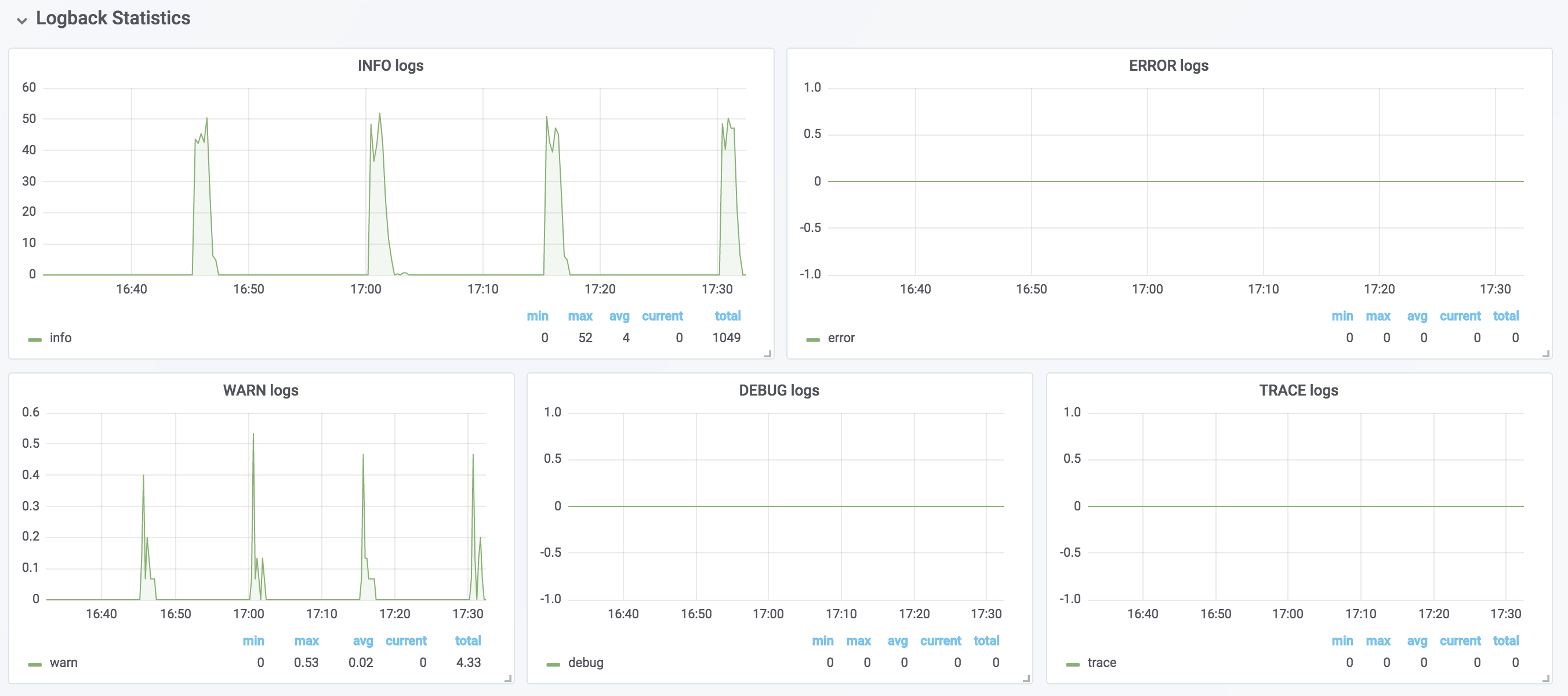

Spring Boot Statistics screenshot 4

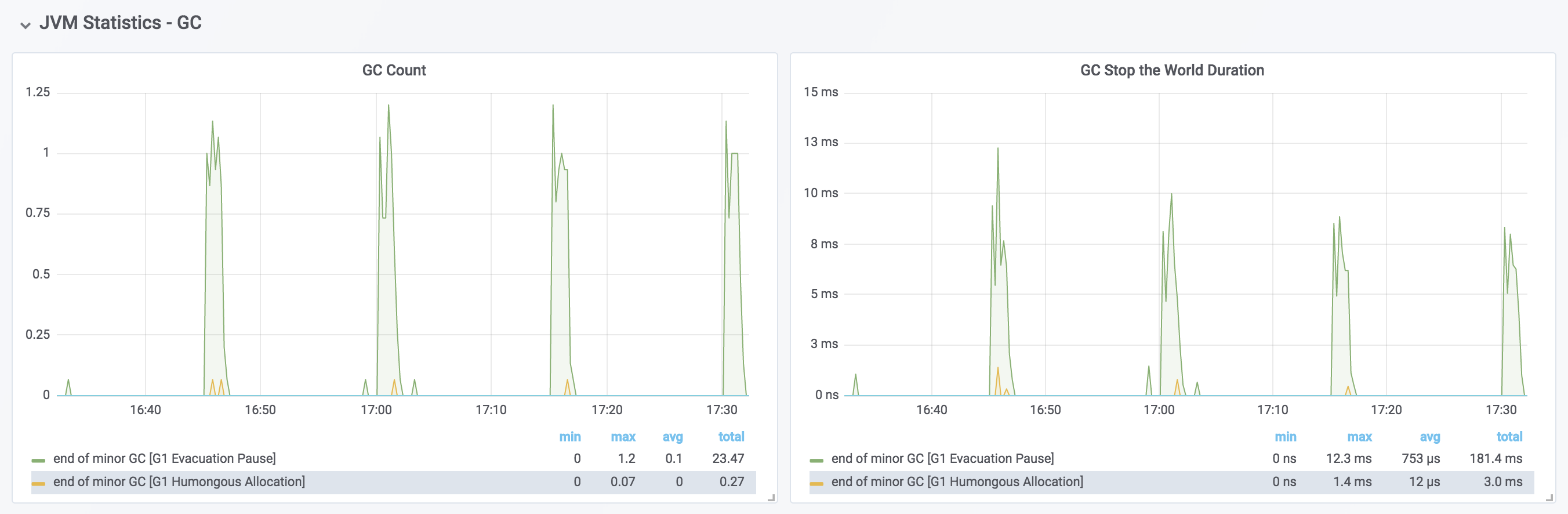

Spring Boot Statistics screenshot 5

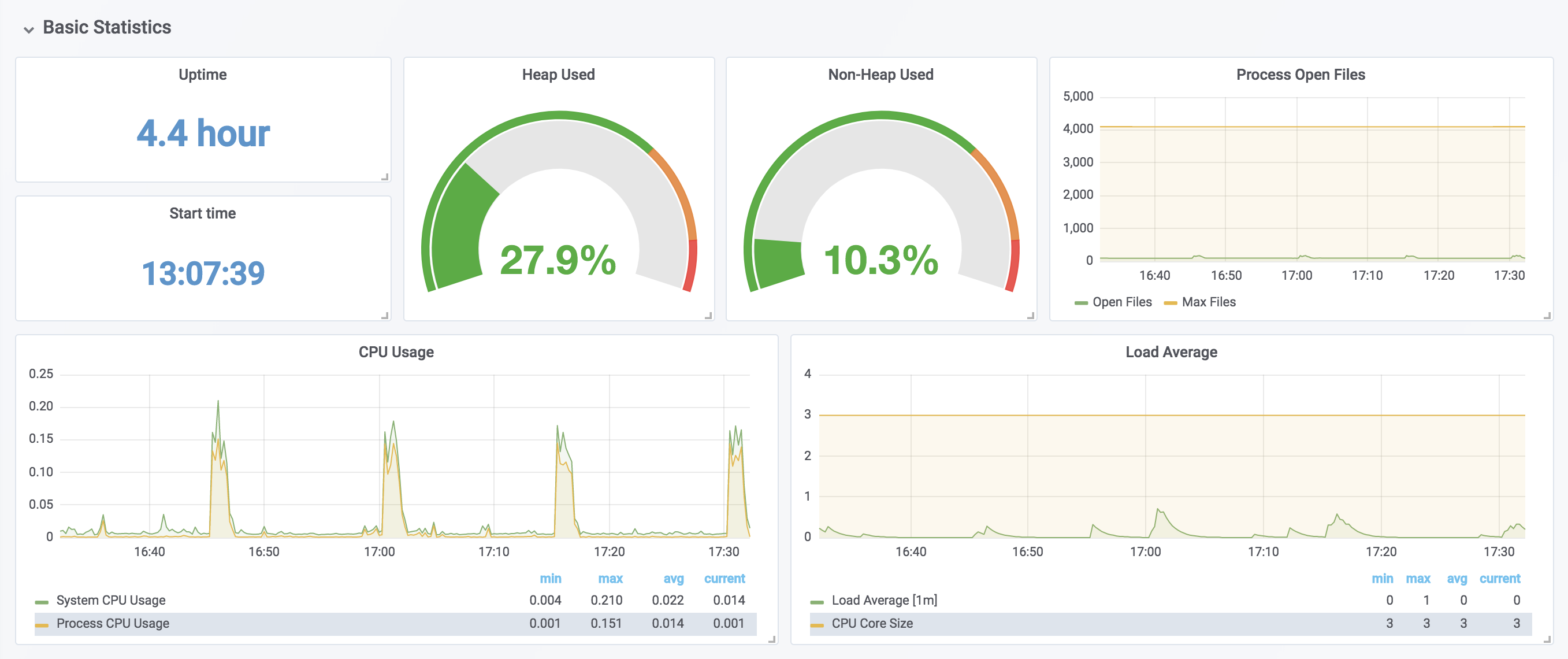

Spring Boot Statistics screenshot 6

Exporter

This dashboard uses the following exporter metrics.

Variables

This dashboard requires the following Variables.

  • $instance - Instance Name
  • $application - Spring Boot Application Name
  • $hikaricp - HikariCP Connection Pool Name

$application should be marked with prometheus.yml label or with Spring bean(See below).

java
@Bean
MeterRegistryCustomizer<MeterRegistry> metricsCommonTags() {
  return registry -> registry.config().commonTags("application", "MYAPPNAME");
}
Revisions
RevisionDescriptionCreated
Spring Boot

Spring Boot

by Grafana Labs
Grafana Labs solution

Easily monitor Spring Boot with Grafana Cloud's out-of-the-box monitoring solution.

Learn more

Get this dashboard

Import the dashboard template

or

Download JSON

Datasource
Dependencies
