UPS Dashboard

Dashboard to monitor APC (Schneider Electric) UPS Management cards.

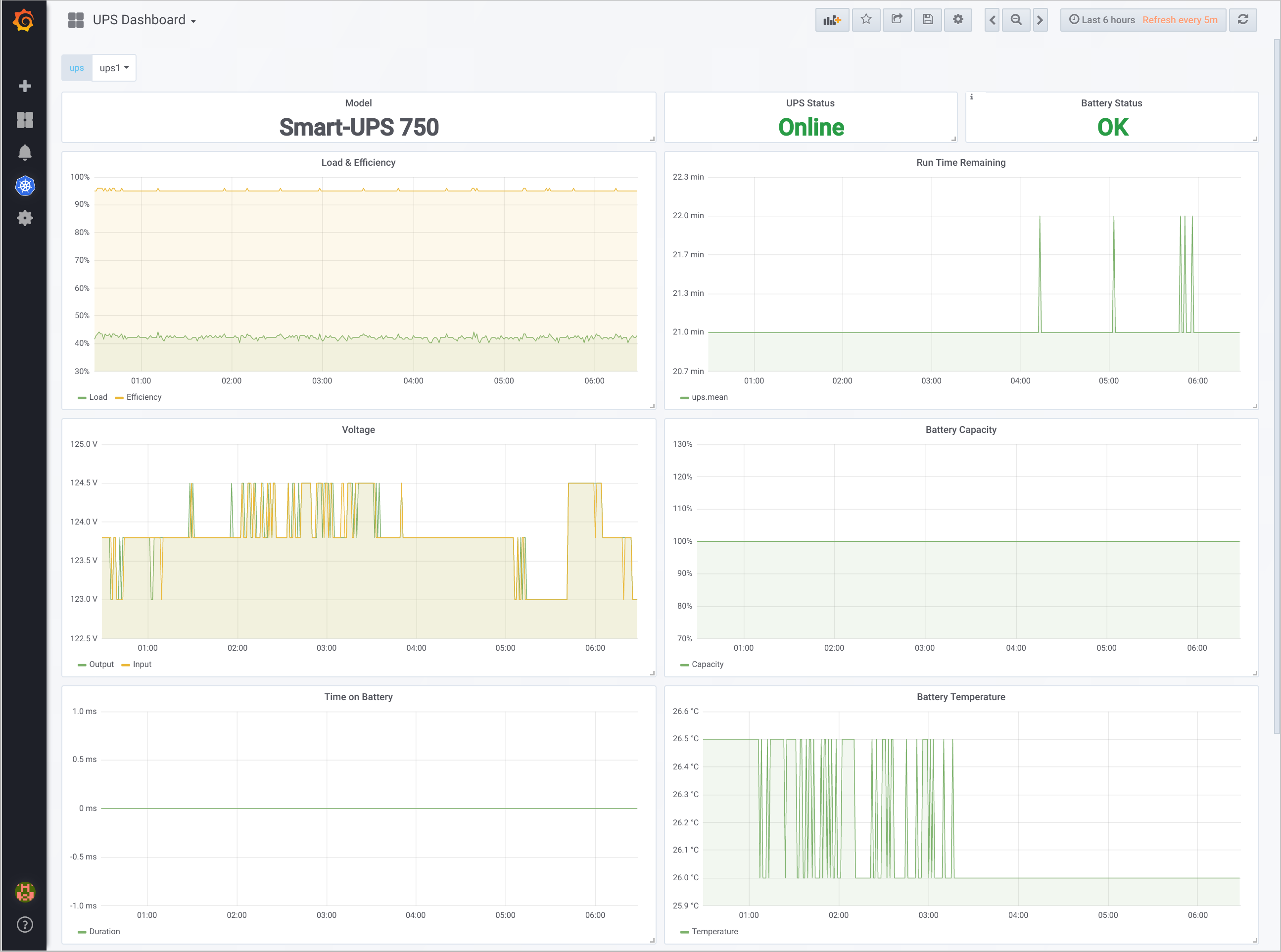

The UPS dashboard shows the following

  • UPS Model
  • UPS and Battery Status
  • Graphs for:
    • Load and Efficiency
    • Run Time Remaining
    • Voltage (both input and output)
    • Battery Charge Capacity
    • Time On Battery
    • Battery Temperature (Celcius)

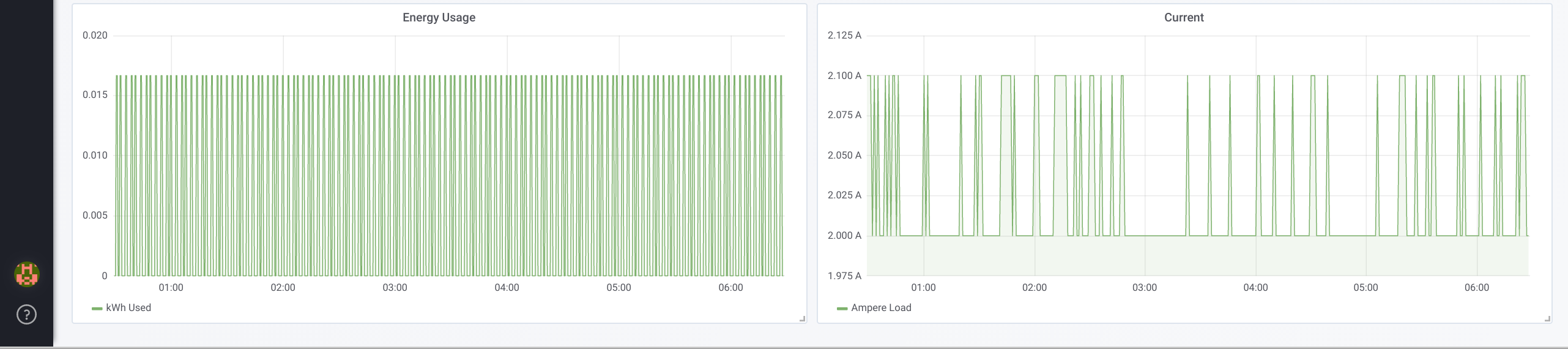

    • Energy Usage (kWh)
    • Current (Ampere Load)

All graphs, where possible, use high precision counters.
