Prometheus2.0 (by FUSAKLA)

Dashboard providing insight to Prometheus monitoring system status and it's runtime info.

Prometheus2.0 (by FUSAKLA) screenshot 1
Prometheus2.0 (by FUSAKLA) screenshot 2
Prometheus2.0 (by FUSAKLA) screenshot 3
Prometheus2.0 (by FUSAKLA) screenshot 4
Prometheus2.0 (by FUSAKLA) screenshot 5

Prometheus 2.0 Grafana dashboard

Dashboard aiming on operating multiple Prometheus instances. It should give you generic view of your monitoring cluster status but also in case of any issues provide deep insight into Prometheus internal metrics.

Most of the graphs are grouped into rows thematically, which are collapsed so they won’t be loaded until you expand them. Bear in mind that some of those could be more query intensive so better try them out on smaller time range first.

Github repository https://github.com/FUSAKLA/Prometheus2-grafana-dashboard

Installation

There are two ways to install this dashboard

  1. Copy the JSON definition of dashboard and paste it in the Import dialog in Grafana
  2. Load the dashboard directly form Grafana.com website using dashboard ID 3681 or on link https://grafana.com/dashboards/3681

Provisioning

If you use dashboard provisioning, there is unfortunately an issue with loading the dashboard which uses variables. This could cause issues such as unexpected character inside braces: '$'. Hopefully this will get fixed in Grafana soon. Until then you need to modify the manifest and replace the VAR_DATASOURCE and VAR_CUSTOM_LABEL_NAME on your own. Sorry for the inconvenience :/

Usage

  • The constant type variable custom_label_name allows you to identify the Prometheus instance by additional label. By default it’s identified by instance and job (default value of the custom label).
  • Queries using increase or rate use the interval variable Aggregation interval as a range vector selector. Title of graph should always show the interval value.
  • All panels which describes latency mostly shows quantile. This is controlled by the variable Quantile so make use of it.
  • Some panels uses time interval override to longer value, this can be controlled by the Long term interval variable.
  • Beware that some collapsed rows could be query expensive on the datasource (depends on complexity of observed Prometheus config or number of those instances). Better make sure to pick only one particular instance before expanding those rows.

Screenshots

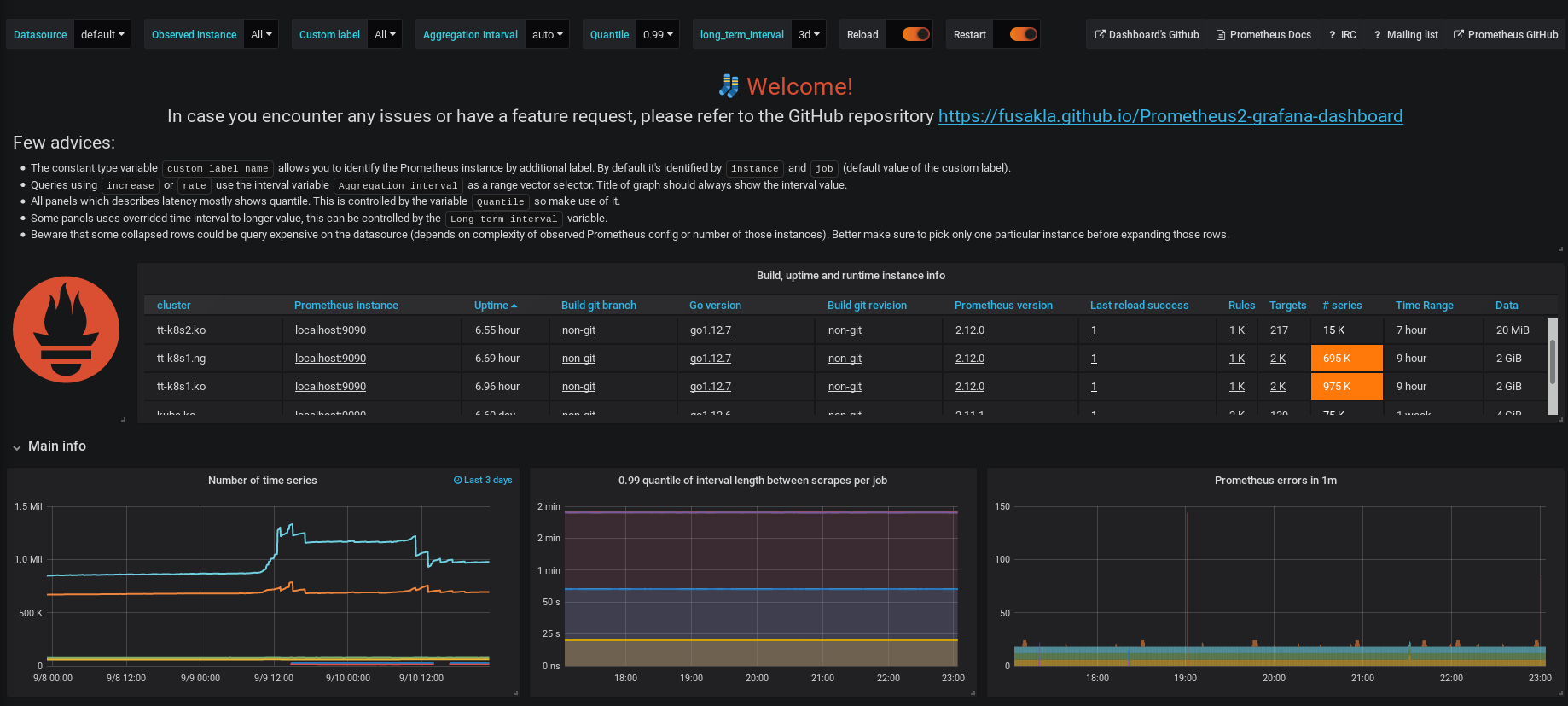

Top of dashboard with main info

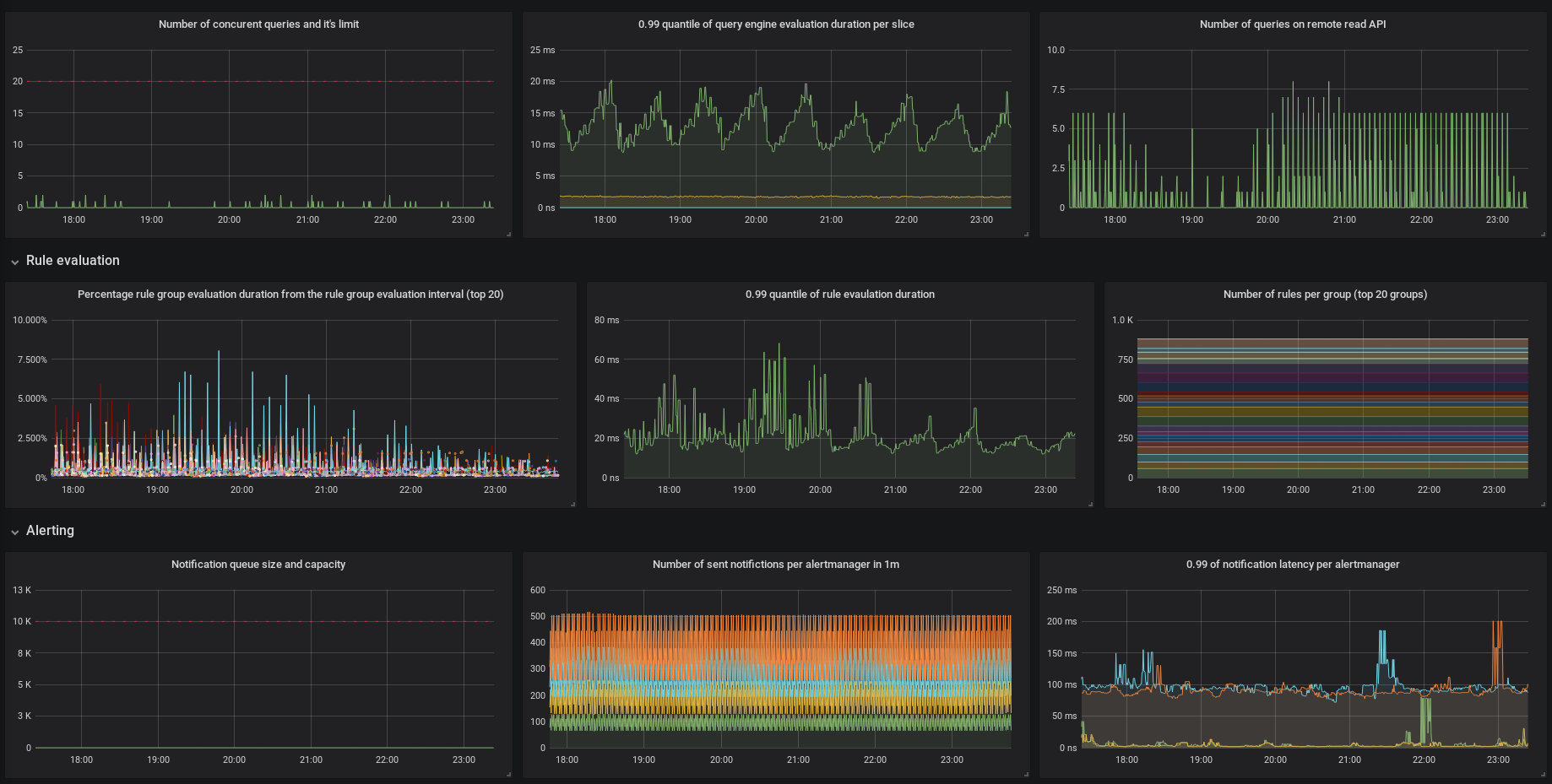

Numebr of requests and latencies

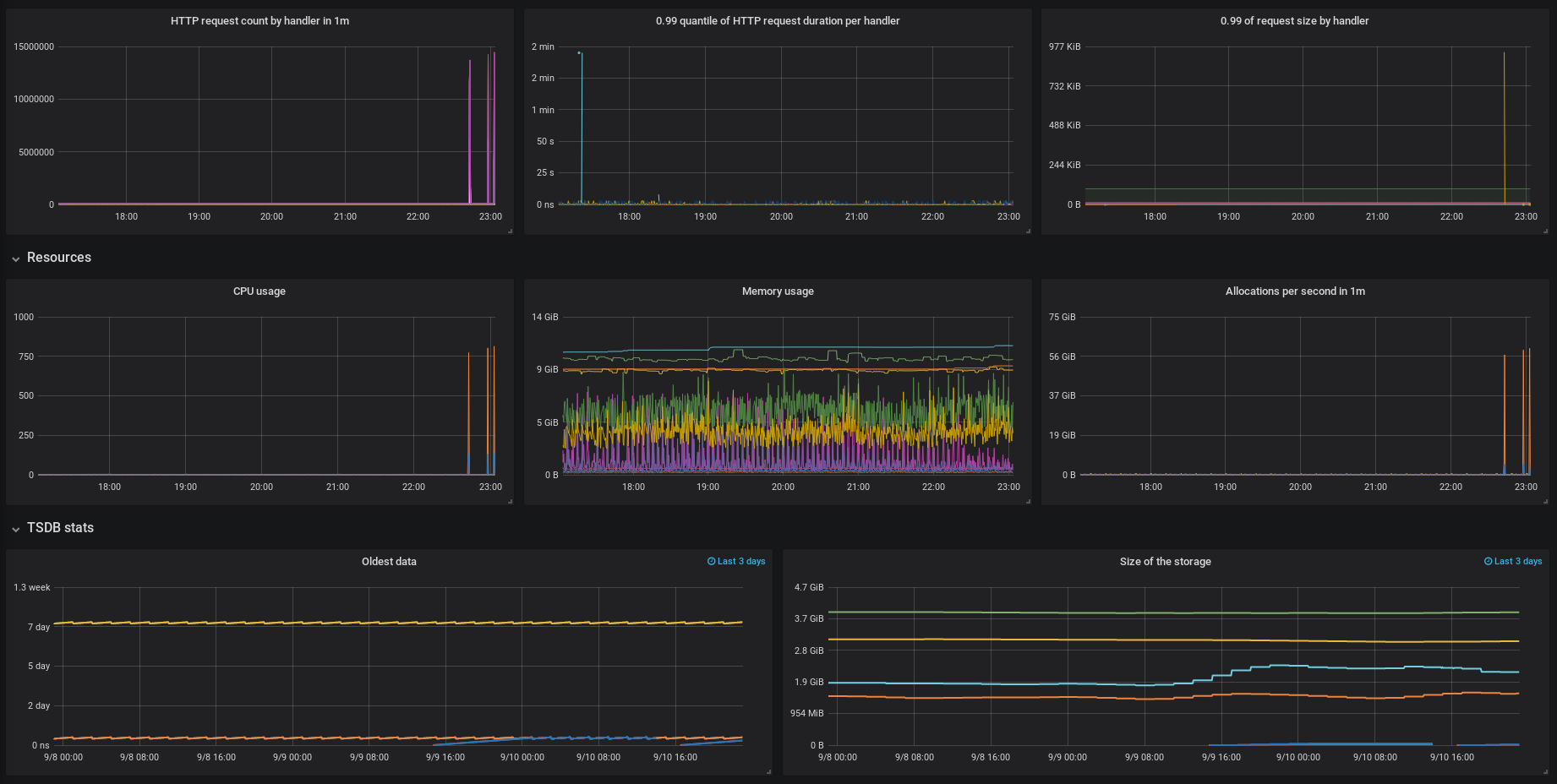

Resources usage data

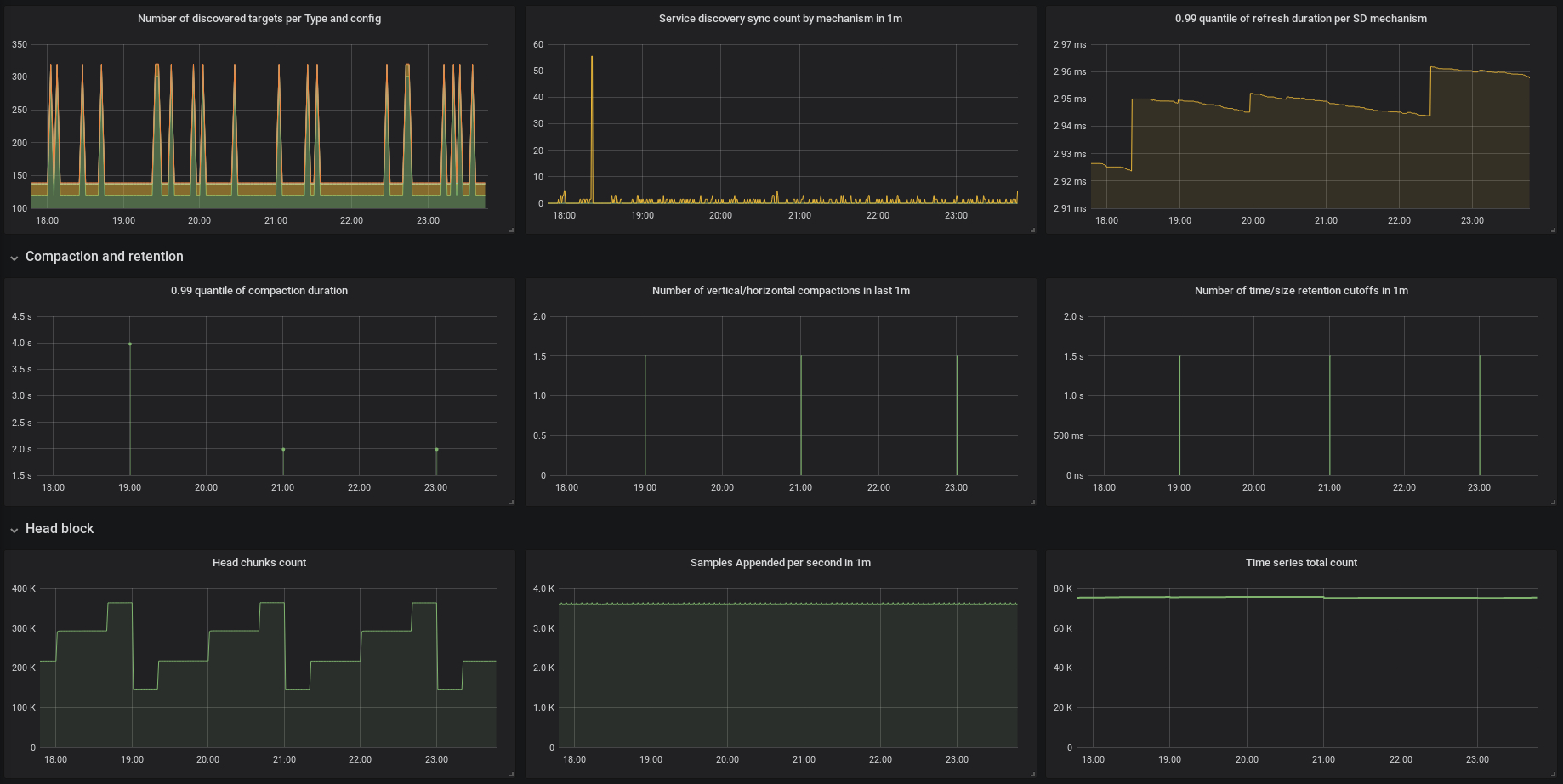

Service discovery metrics

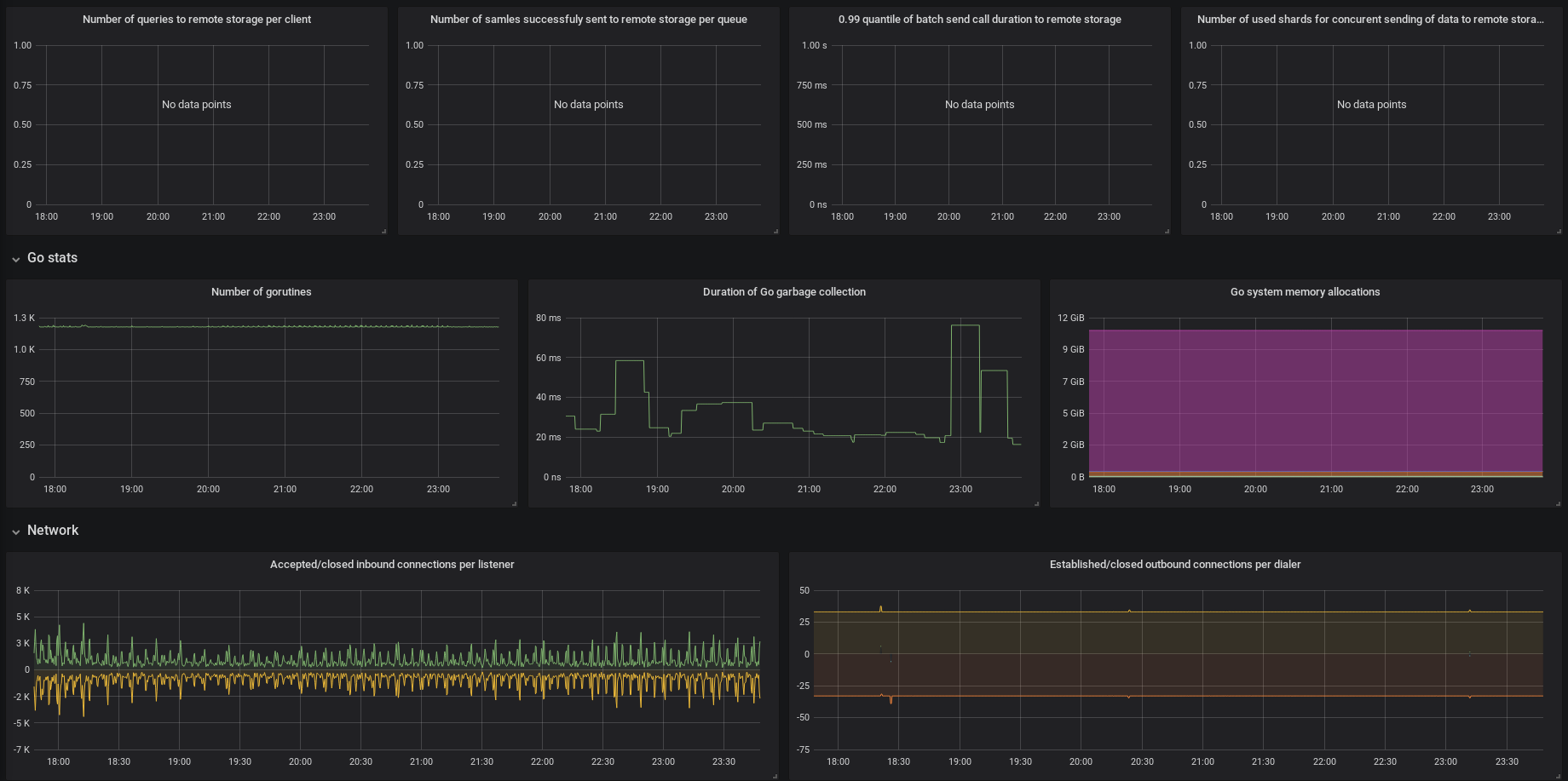

Network usage data

Updating the dashboard

There is a script to show difference between metrics of running Prometheus instance and those used by the dashboard.

  1. Run the Prometheus instance for example docker run -d -p 9090:9090 prom/prometheus:master.
  2. You need curl and jq, so please make sure you have those installed.
  3. Run the script ./inspect_metrics.sh.
  4. You should get an output with listing of differences.

Issues and contributing

If you encounter any issues with the dashboard or would like to enhance it anyhow, please raise an issue on the github repo and I’d be happy to discuss it!
