ADS-B Receiver Monitor (dump1090 stats)

ADS-B receiver health monitor for Telegraf-scraped dump1090-fa /stats.json data. Expects: InfluxDB v2 bucket containing measurement `dump1090_stats` with fields like `last1min_messages`, `last1min_local_peak_signal`, `last1min_local_noise`, `last1min_cpu_demod`, etc. (the flattened output of dump1090's stats.json). Devices are differentiated by the `host` tag — set the bucket variable to your InfluxDB bucket name after import. Multi-device setups (multiple Pis) show each as a separate series automatically.

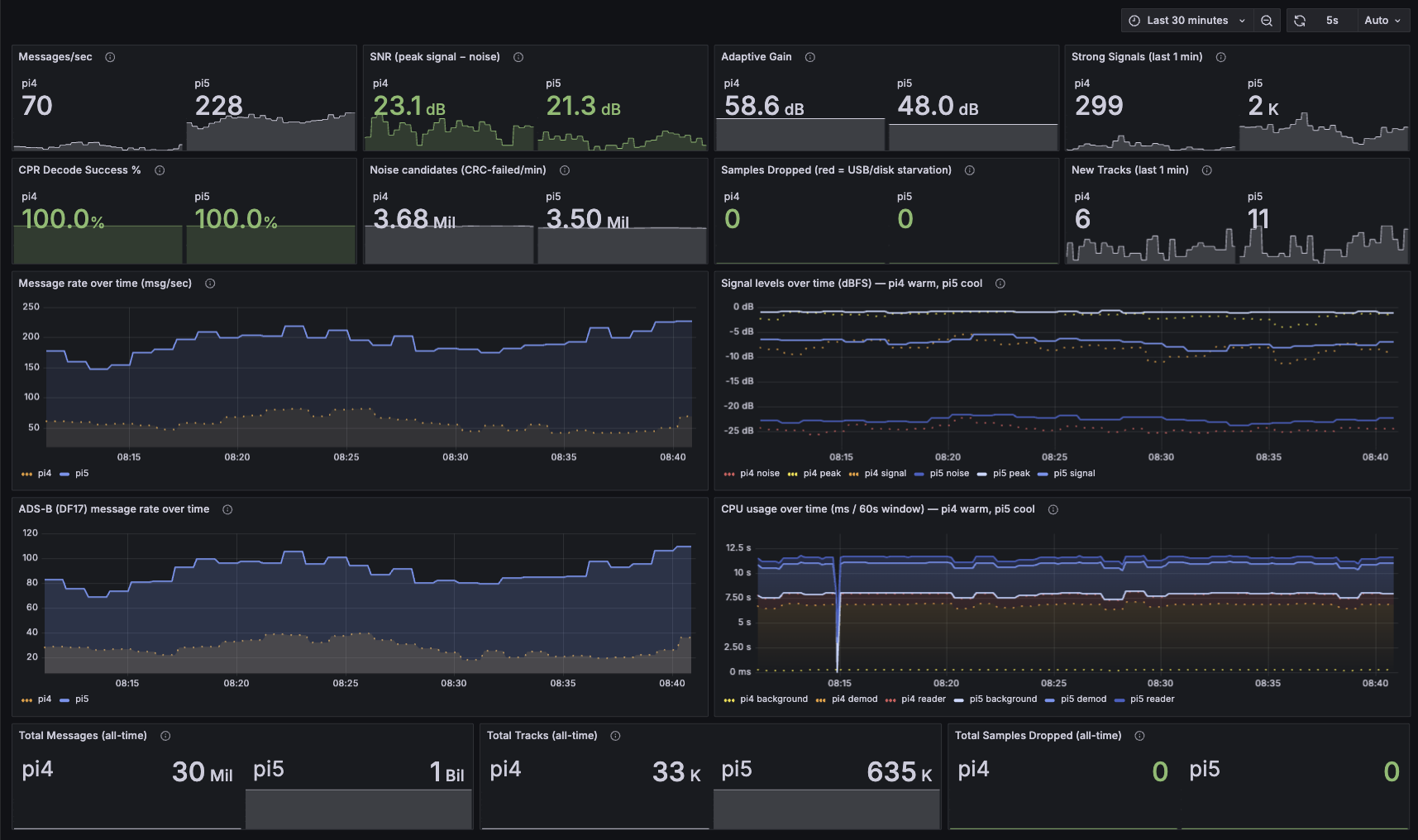

ADS-B Receiver Monitor (dump1090 stats) screenshot 1
The ADS-B Receiver Monitor (dump1090 stats) dashboard uses the influxdb data source to create a Grafana dashboard with the stat and timeseries panels.
