Netzbremse

Visualizes speedtest results from the netzbremse-measurement tool (https://github.com/AKVorrat/netzbremse-measurement) by AKVorrat. Shows download/upload speed, latency, and jitter over time. Requires Loki and Grafana Alloy see the repository for the Alloy configuration and setup instructions.

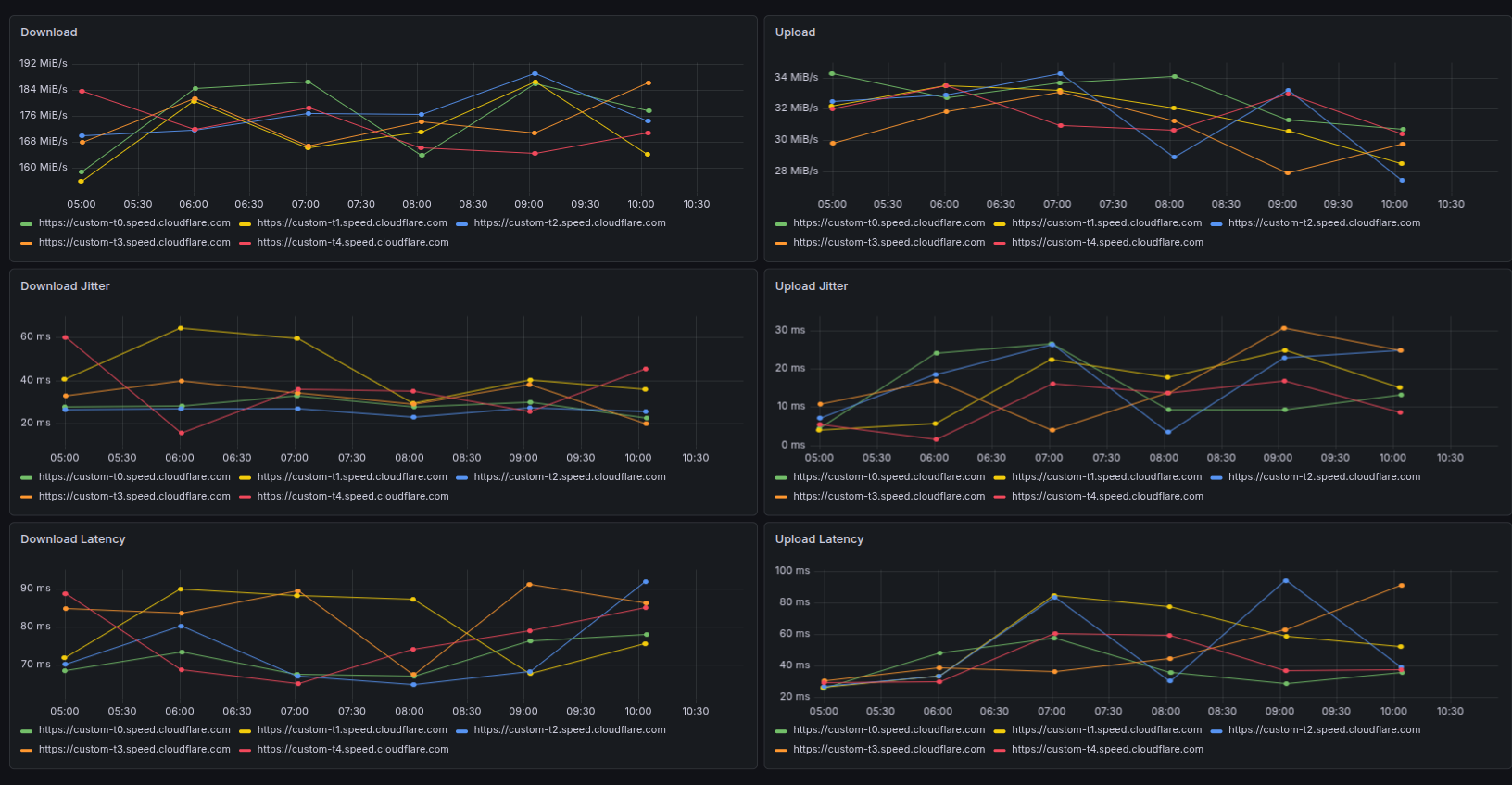

Netzbremse screenshot 1

Netzbremse Measurement Dashboard

Visualizes speedtest results from the netzbremse-measurement tool by AKVorrat.

Panels

  • Download / Upload speed over time
  • Latency & Jitter (base, under load download, under load upload)
  • Filterable by endpoint and success status

Requirements

  • Loki data source
  • Grafana Alloy scraping the JSON result files from the speedtest container

Setup

See the grafana_dashboard.md in the repository for the full Alloy configuration and setup instructions.

Revisions
RevisionDescriptionCreated
