Printers - Single View Dashboard
Individual view for network printers
Thank you to xander1402, ID 9958, the maker of the original dashboard!
Requirements:
- InfluxDB 2.0
- Telegraf
- SNMP enabled and configured on your printers
Updates:
- Updated all queries to InfluxDB v2 (Flux)
- Overhauled dashboard to focus on viewing one printer at a time
- Created override values for certain models to display data on graphs properly
- List by hostname instead of IP address
- Show IP address within row instead
- Dynamically change colour of gradiant bar graph depending on status of object being tracked
- Dynamically change colour of printer cover status if door open or closed
Tested with the following printer models:

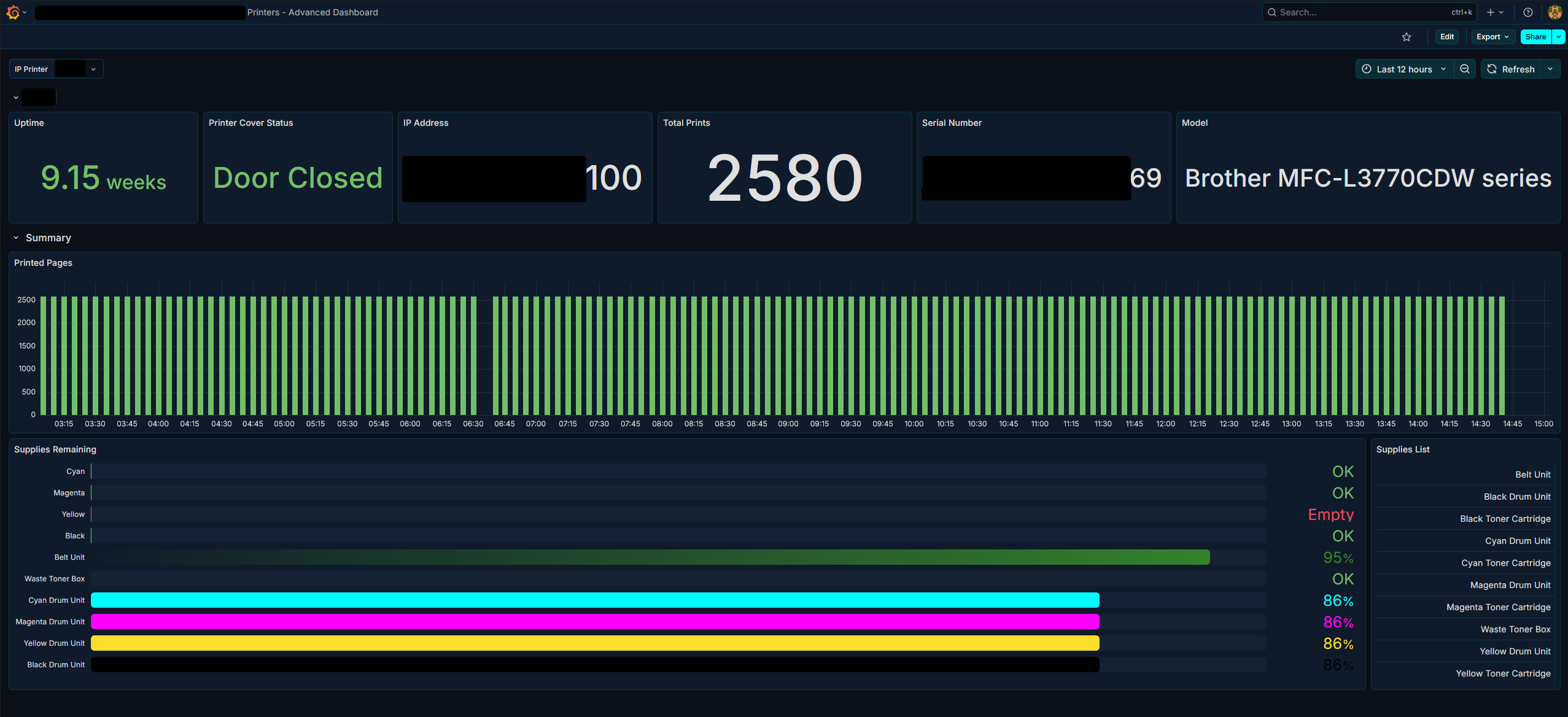

- Brother MFC-L3770CDW

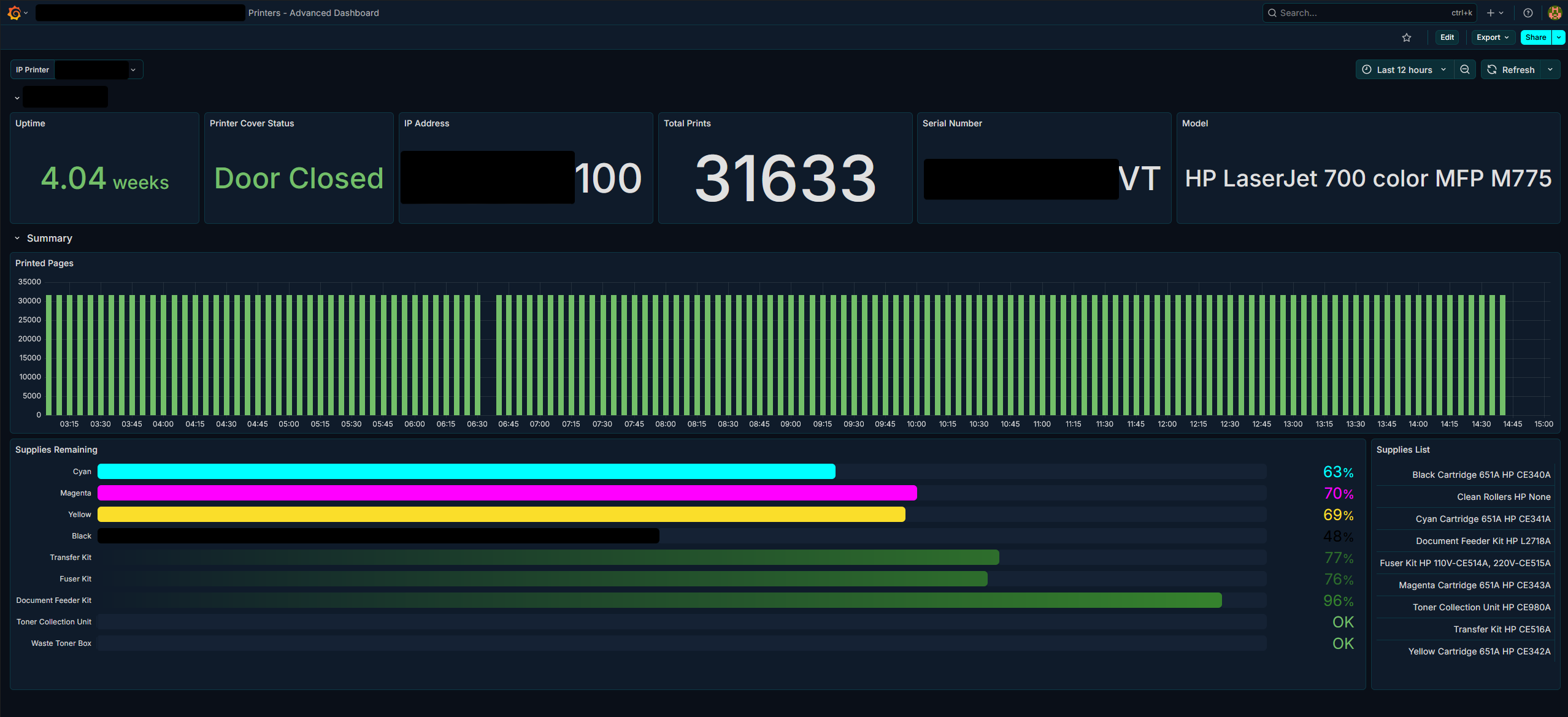

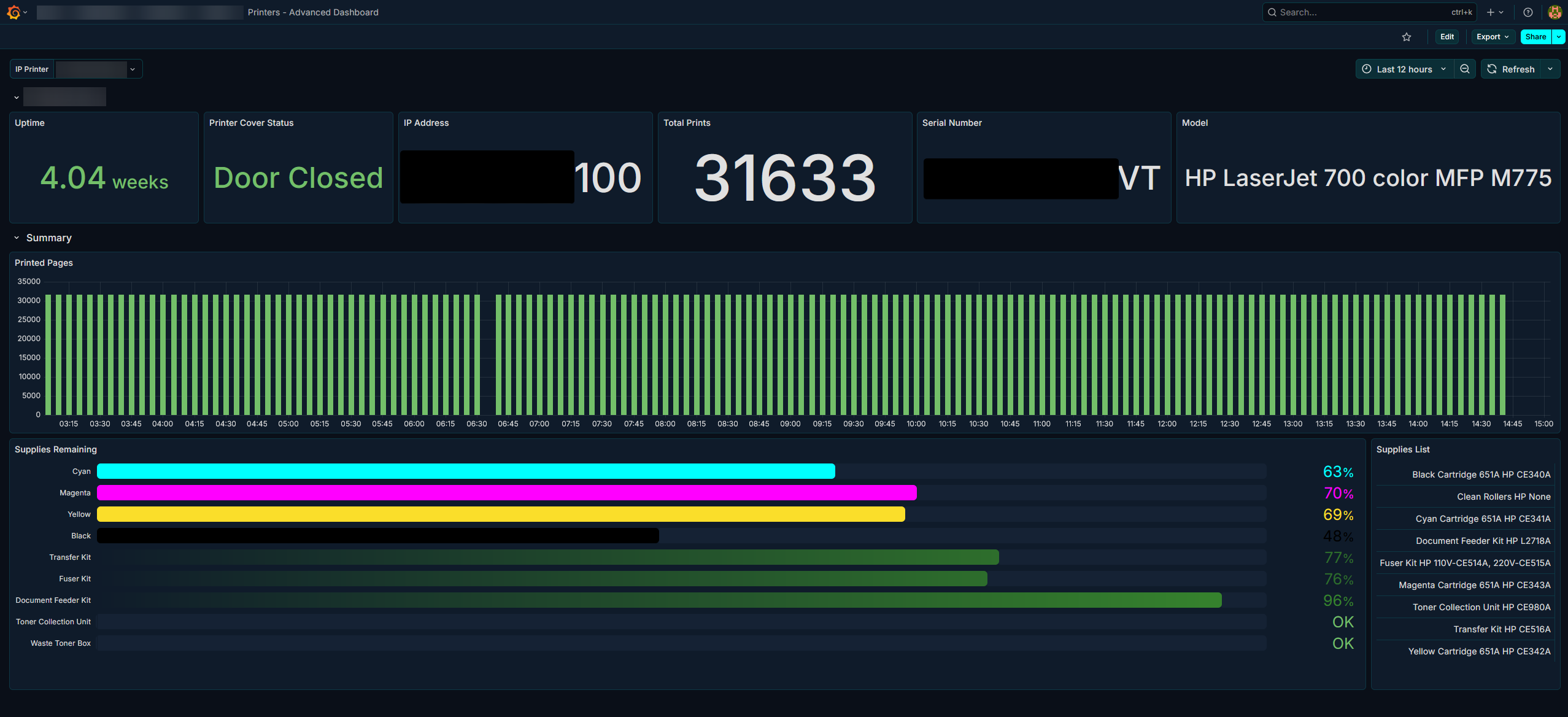

- HP Laserjet 700 color MFP M775dn
- HP Color LaserJet MFP M477fnw
- Brother MFC-L8900CDW
Data source config
Collector type:
Collector plugins:
Collector config:
