HPE Storage TOP 5 volume
Provides a birds eye view of a HPE storage top 5 volumes.

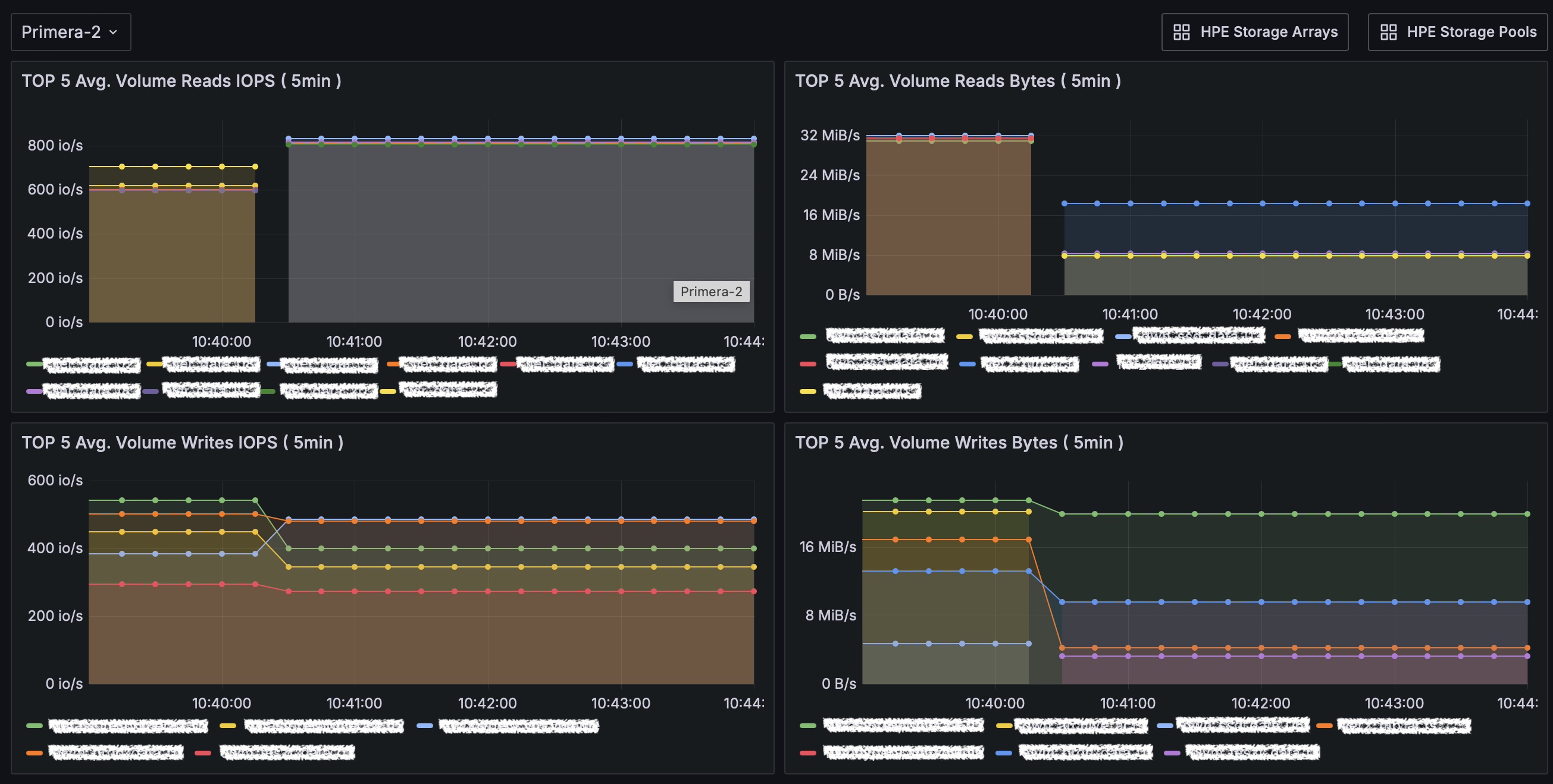

This dashboard displays an overview of a HPE storage top 5 volume using the HPE Storage Array Exporter for Prometheus scrape target.
Requirements
Scrape target label named “array” with the storage array name or designation. The source metrics needs to be normalized with the following metric_relabel_configs for the scrape target. // metric_relabel_configs:
- source_labels: [name] action: labelmap regex: “cpg|pool” replacement: “storagepool”
- source_labels: [name] regex: “^hpe(primera|nimble|3par|alletra6000|alletra9000)(.*)” target_label: “name” replacement: “hpe$2”
- source_labels: [name] regex: “^hpe_(pool|cpg)(.*)” target_label: “name” replacement: “hpe_storagepool$2” // Resources
This dashboard utilize the officially supported exporter for HPE storage systems.
HPE Storage Array Exporter for Prometheus
Data source config
Collector type:
Collector plugins:
Collector config:
