Libvirt / OpenStack - VMs - Combined

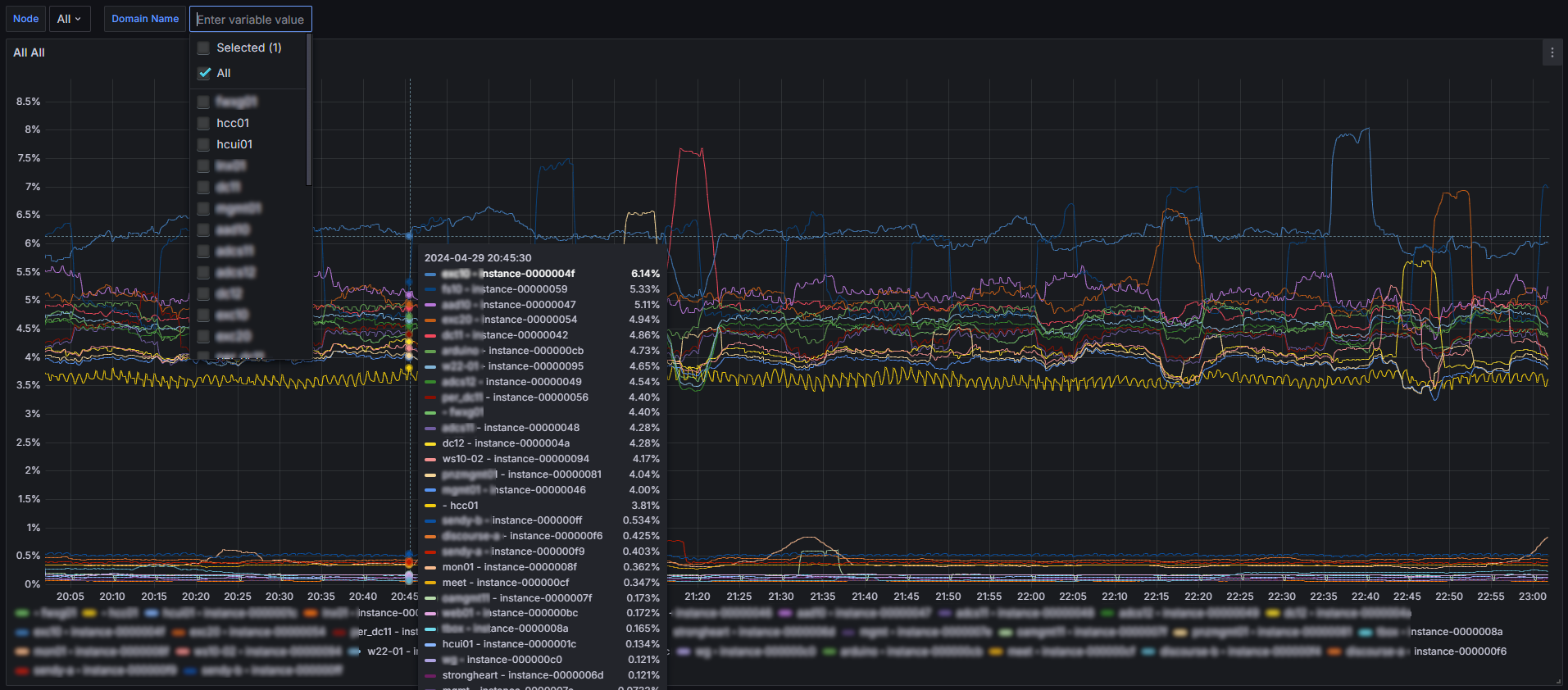

A time series dashboard showing % of host CPU time for multiple libvirt instances which are being managed by OpenStack Nova
An initial libvirt dashboard. So far just showing % of physical host CPU time. I’m not 100% sure I’ve got it right but the numbers line up with top.
- This dashboard relies on the libvirt exporter: https://github.com/Tinkoff/libvirt-exporter.
- Tested on Ubuntu 22.04 running in docker as per: https://hub.docker.com/r/alekseizakharov/libvirt-exporter.
- It also relies on node exporter, to get the number of physical cores in the host.
This exporter exports details about the libvirt VMs including OpenStack Nova metadata. But it could easily be modified for non-nova environments. I hope to add a few more to this in the future.
Disclaimer: total Prometheus/Grafana newbie.
See Also: https://grafana.com/grafana/dashboards/20979-vms-individual/
- https://blog.rhysgoodwin.com/it/openstack-ceph-hyperconverged/
