Kubernetes / Networking / Pod Flows (Workload)
NOTE: requires Advanced Container Networking Services (standard offering) to be enabled. See aka.ms/acns for more info.

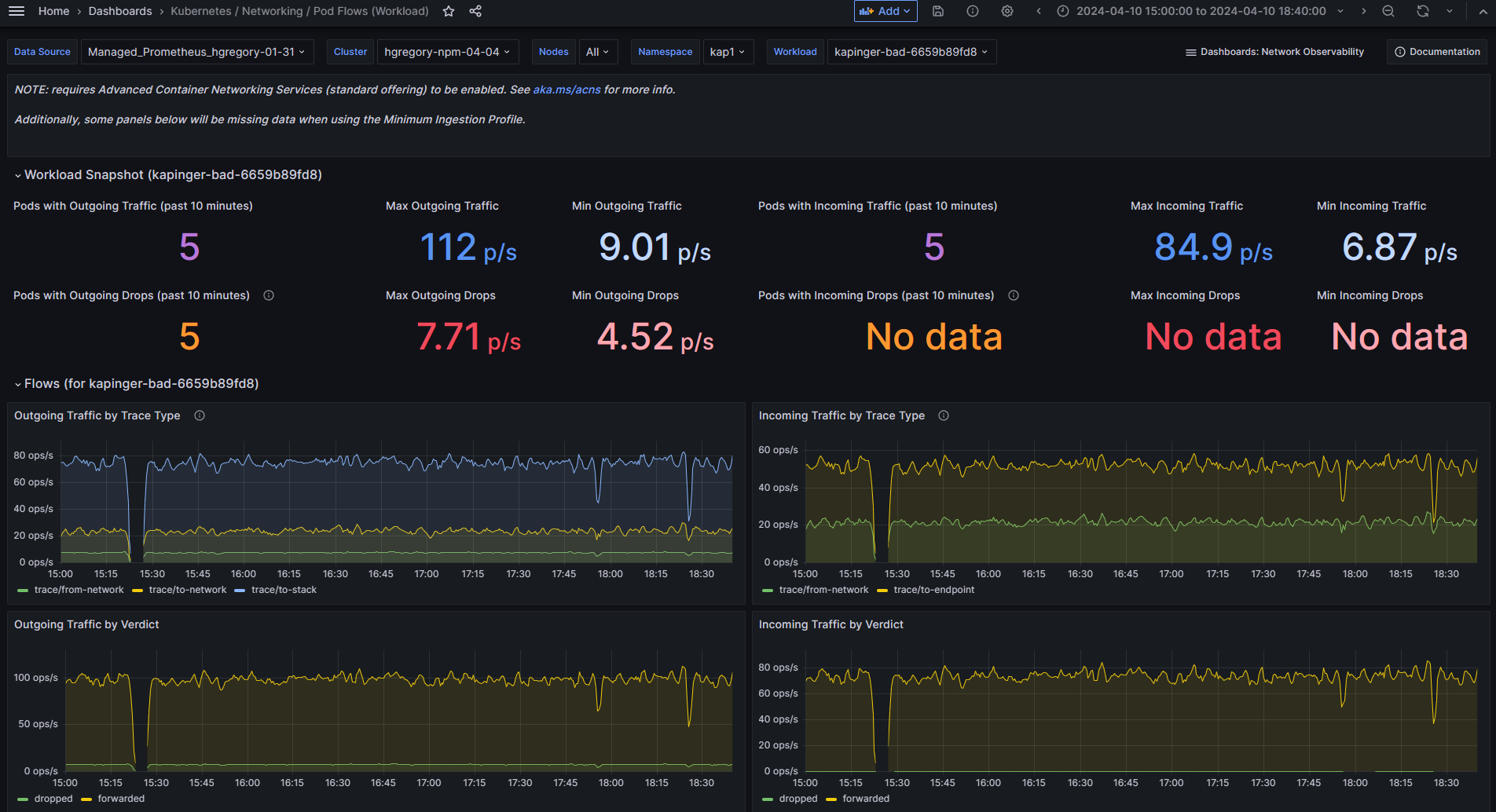

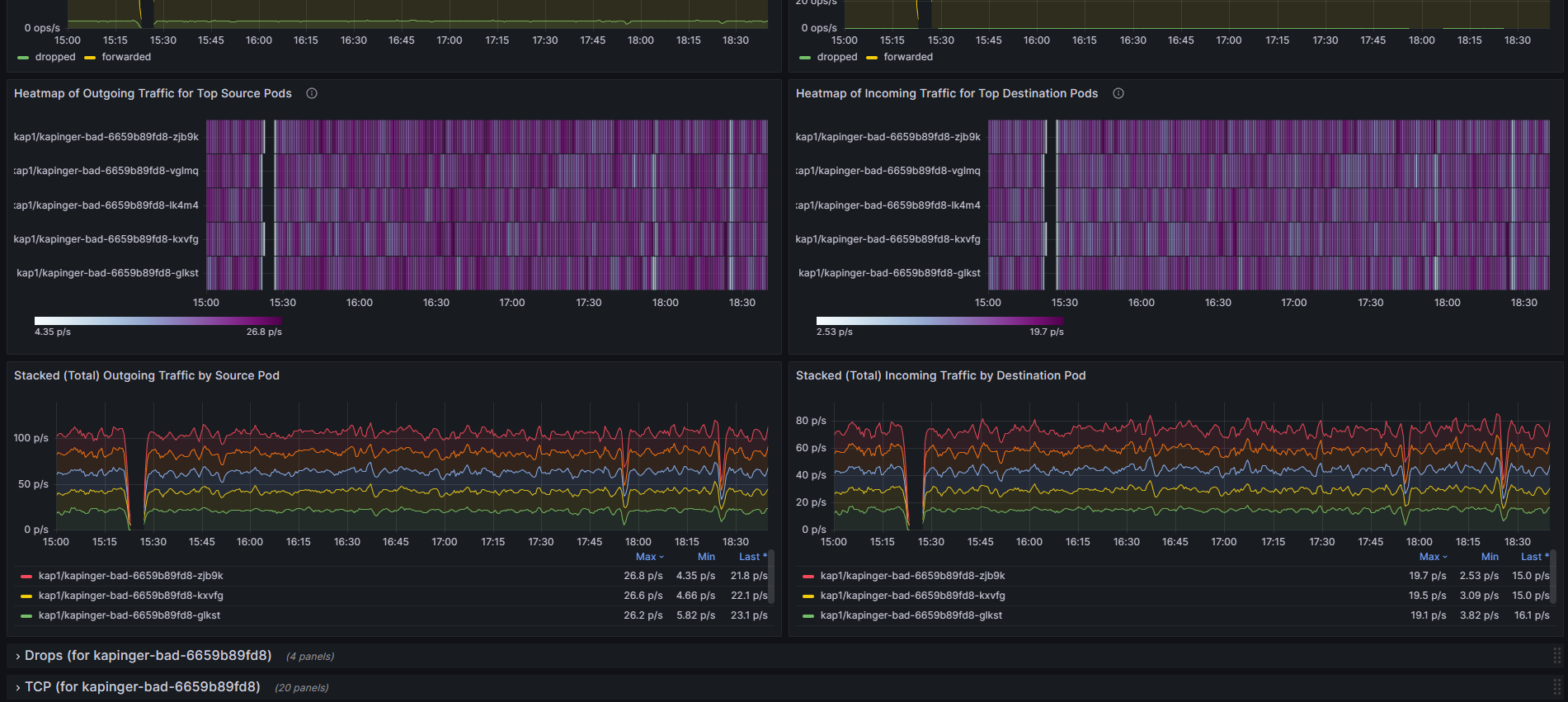

Shows L4/L7 packet flows to/from the specified workload (e.g. Pods of a Deployment or DaemonSet).

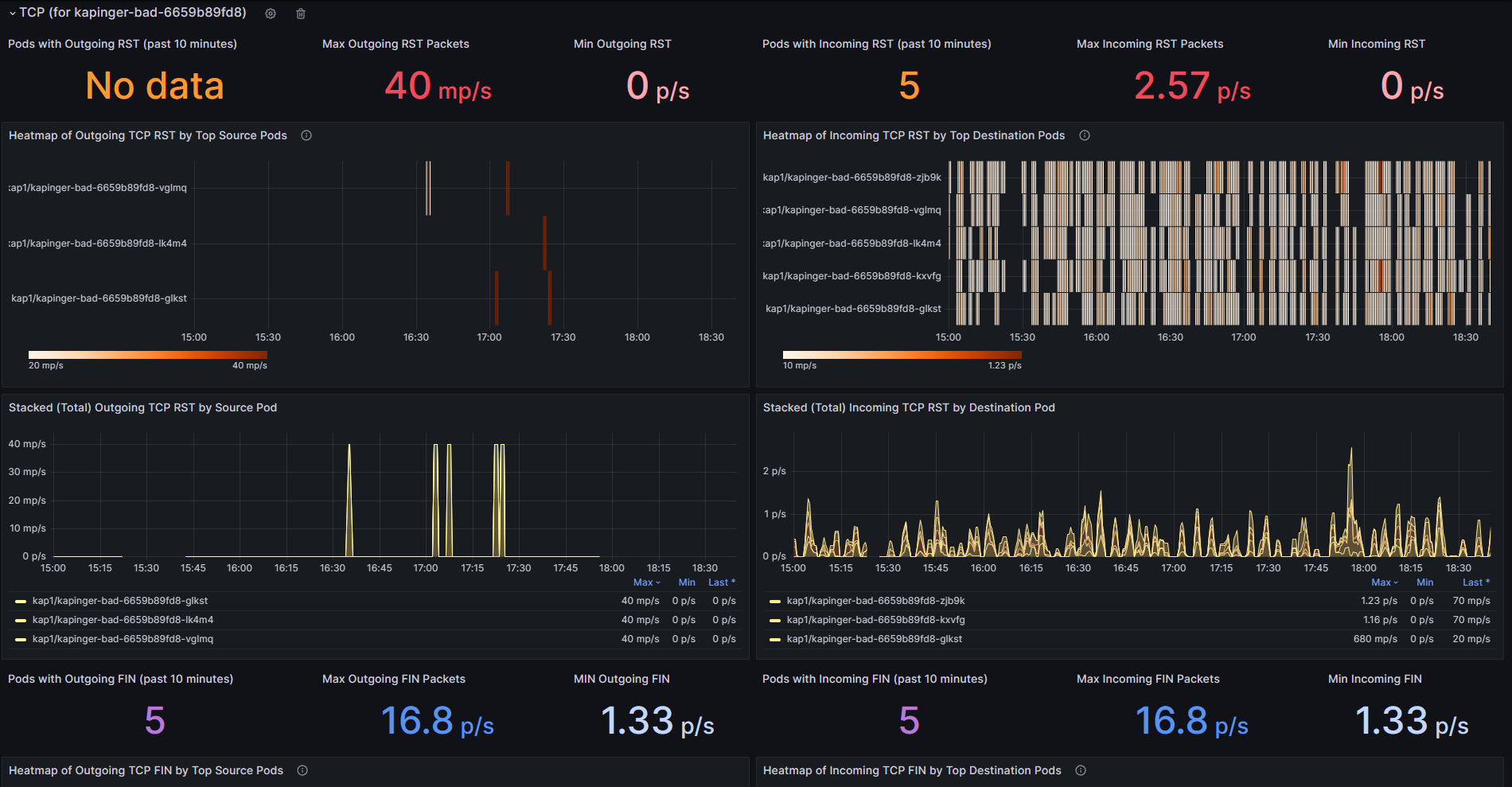

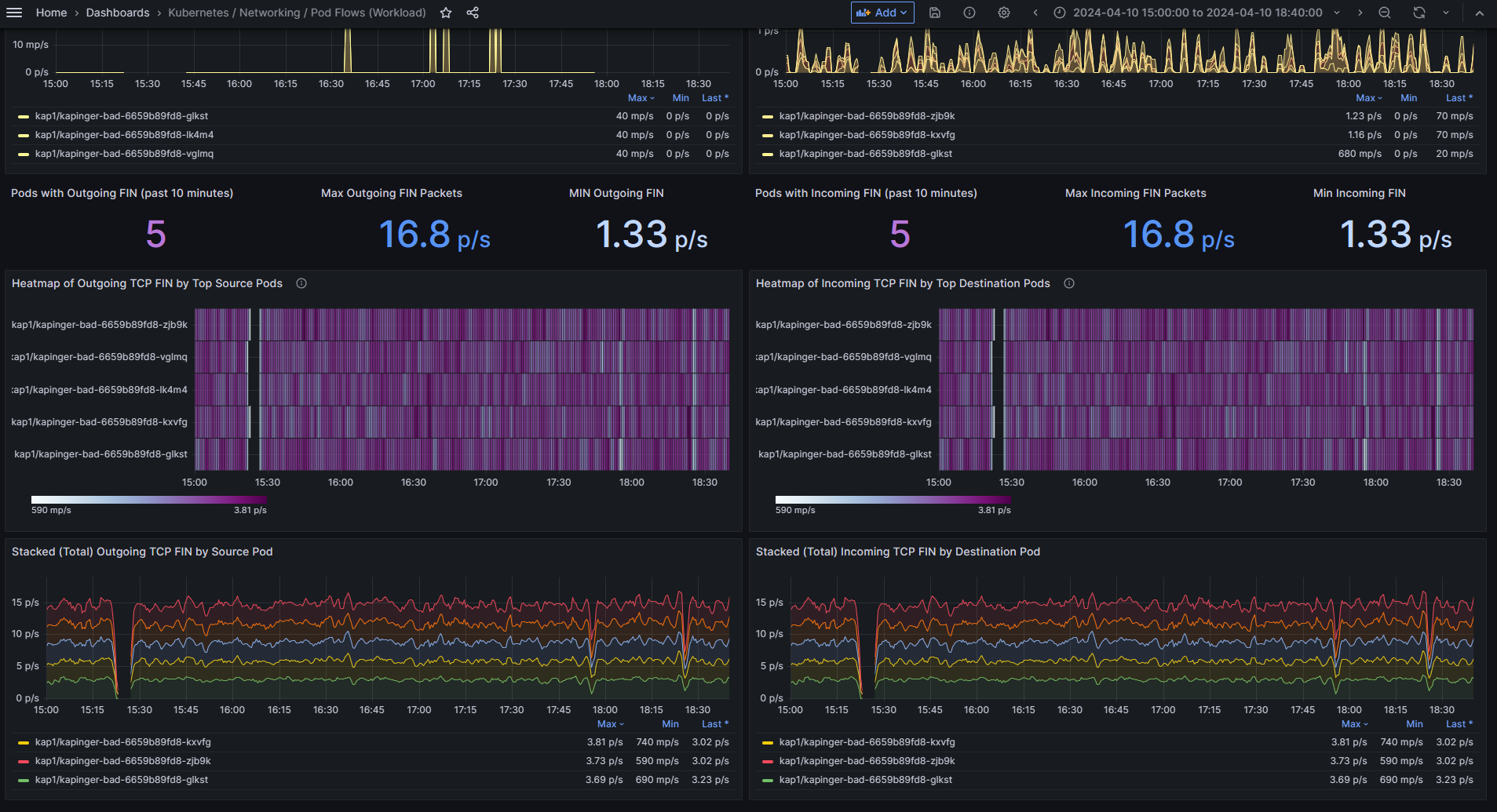

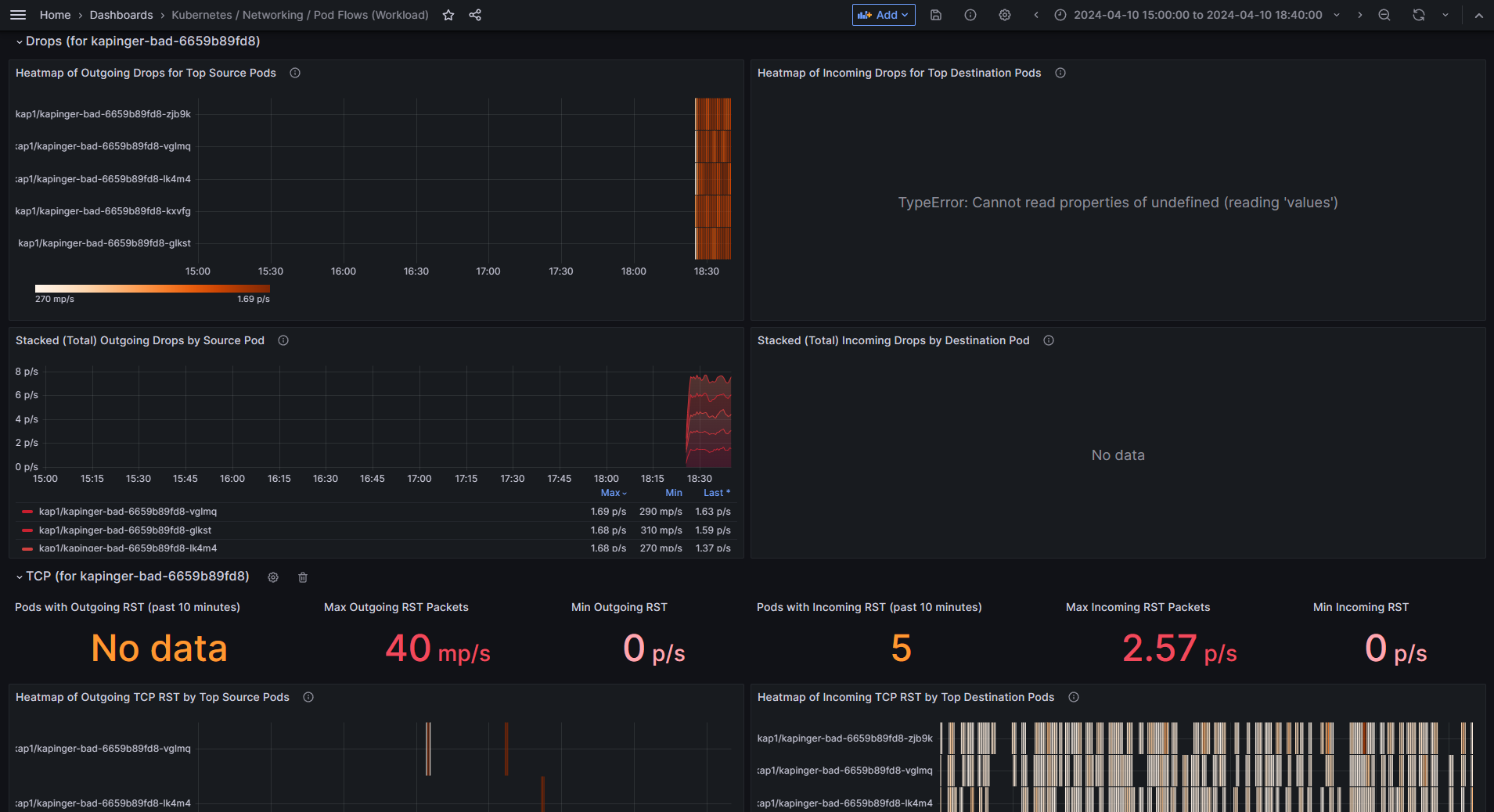

The snapshots serve to summarize traffic flow for namespaces. In general, there’s Pod-level info on packet forwards, drops, and TCP Flags (e.g. TCP resets).
