Default EMQX 5.0 Grafana Monitoring Dashboard Template

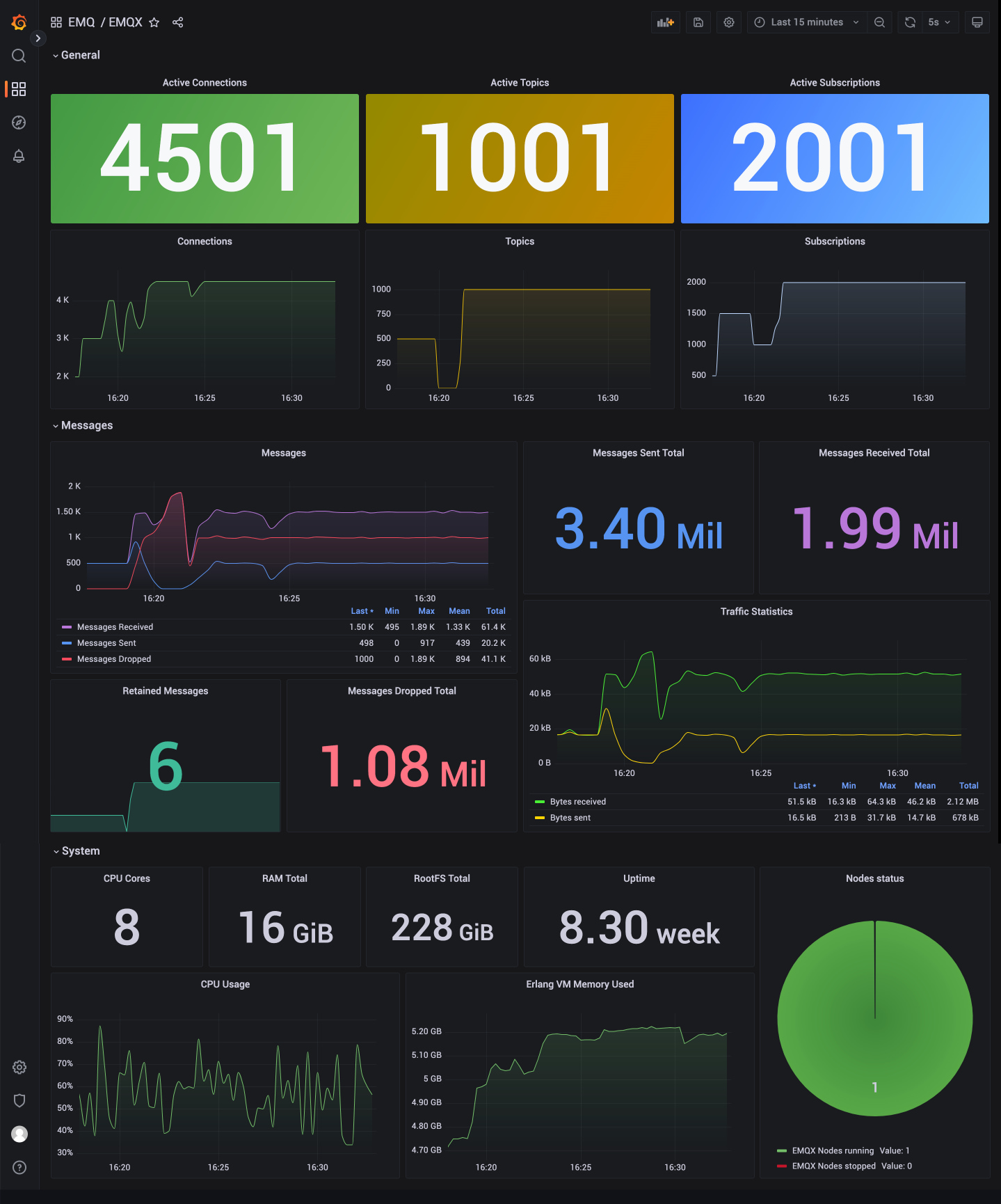

EMQX screenshot 1

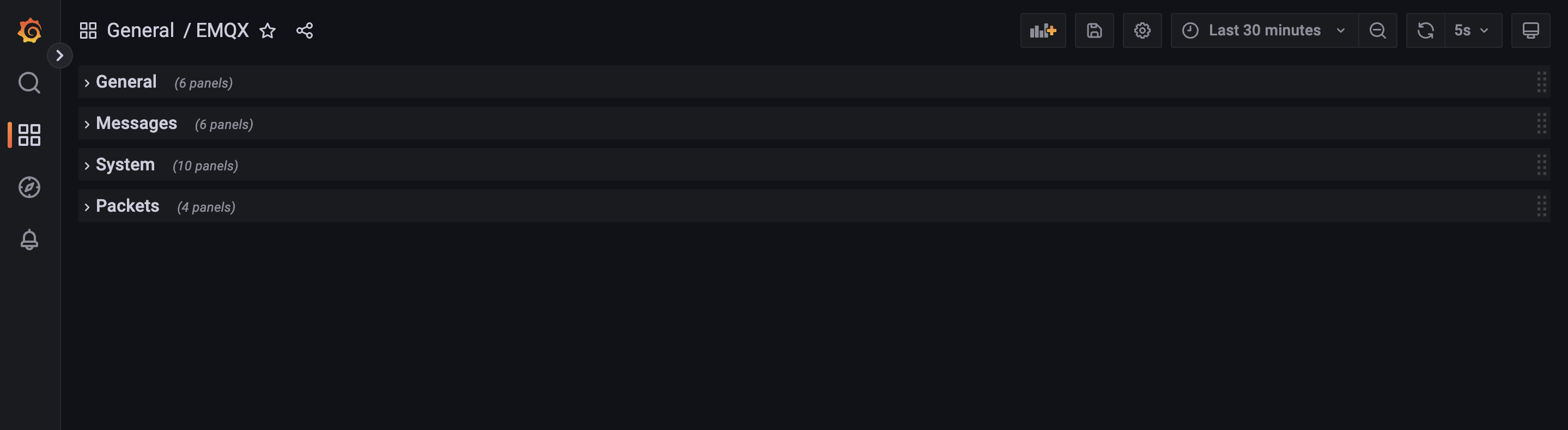

EMQX screenshot 2


EMQX is the most scalable and popular open-source MQTT broker with a high performance that connects 100M+ IoT devices in 1 cluster at 1ms latency. Move and process millions of MQTT messages per second.

The EMQX v5.0 has been verified in test scenarios to scale to 100 million concurrent device connections, which is a critically important milestone for IoT designers. It also comes with plenty of exciting new features and huge performance improvements, including a more powerful rule engine, enhanced security management, Mria database extension, and much more to enhance the scalability of IoT applications.

During the last several years, EMQX has gained popularity among IoT companies and is used by more than 20,000 global users from over 50 countries, with more than 100 million IoT device connections supported worldwide.

For more information, please visit EMQX homepage.

Get Started

EMQX Cloud

The simplest way to set up EMQX is to create a managed deployment with EMQX Cloud. You can try EMQX Cloud for free, no credit card required.

Run EMQX using Docker

docker run -d --name emqx -p 1883:1883 -p 8083:8083 -p 8084:8084 -p 8883:8883 -p 18083:18083 emqx/emqx:latest

Next, follow the getting started guide to tour the EMQX features.

Run EMQX cluster on Kubernetes

For details: EMQX Operator.

More installation options

If you prefer to install and manage EMQX, you can download the latest version from

For more installation options, see the EMQX installation documentation.

Metrics Displayed

After you install EMQX, you can view the basic metrics or custom the metrics and display them in the Grafana dashboard. Below are the metrics displayed in the dashboard.

  • General, including the number of connections, topics, and subscriptions.
  • Messages, including the number of messages published and received and the number of messages published and received per second.
  • System, including the number of processes, CPU and Erlang VM memory, etc.
  • Packet, including the number of packets connected, published, received, etc.

Note: This Dashboard template is available for EMQX 5.0


Get this dashboard

Import the dashboard template


Download JSON
