Grafana Dashboard for Veeam Backup for Salesforce

Grafana Dashboard for Veeam Backup for Salesforce v1 - (Grafana 8.x / InfluxDB v2.x)

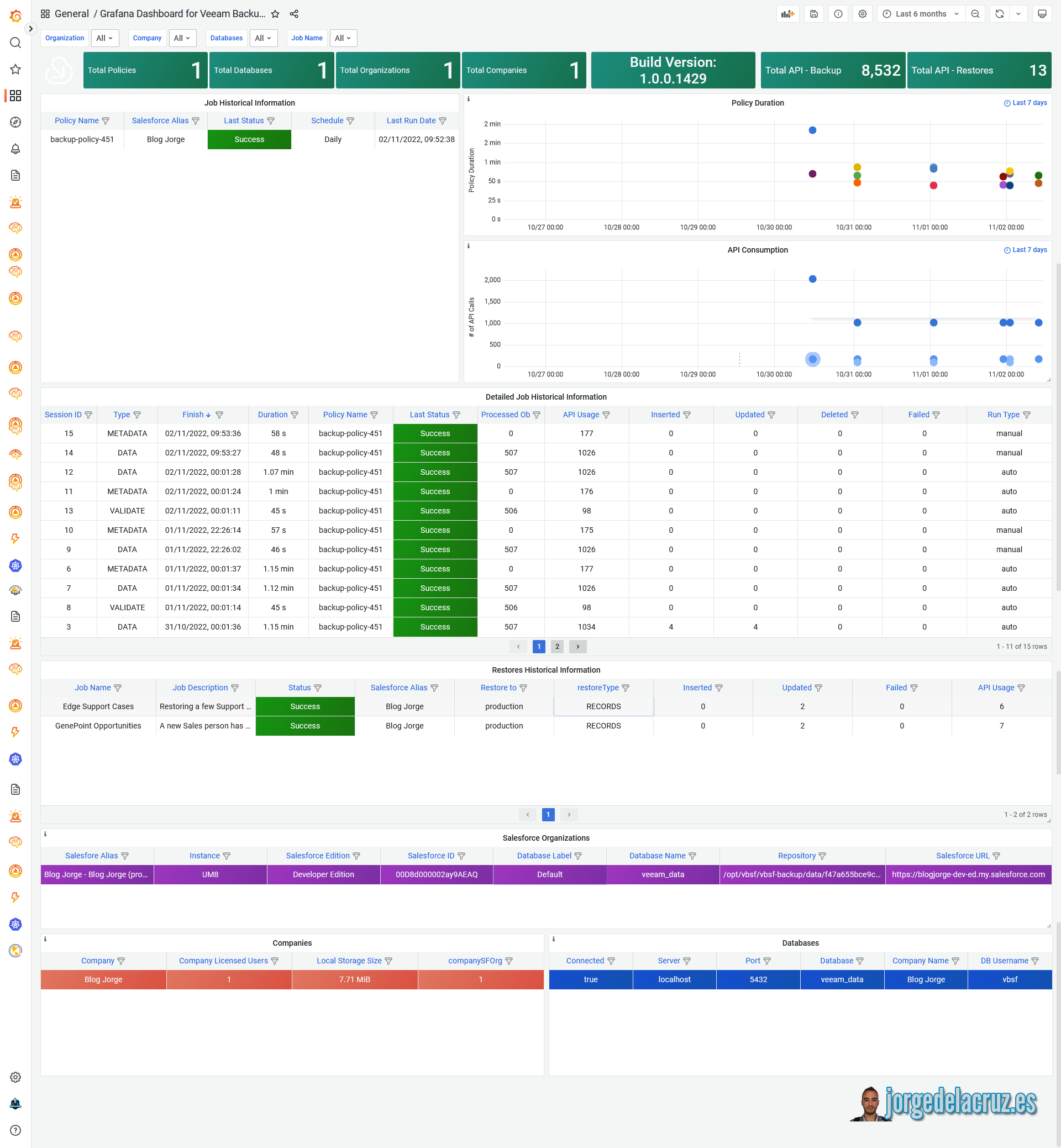

Grafana Dashboard for Veeam Backup for Salesforce screenshot 1

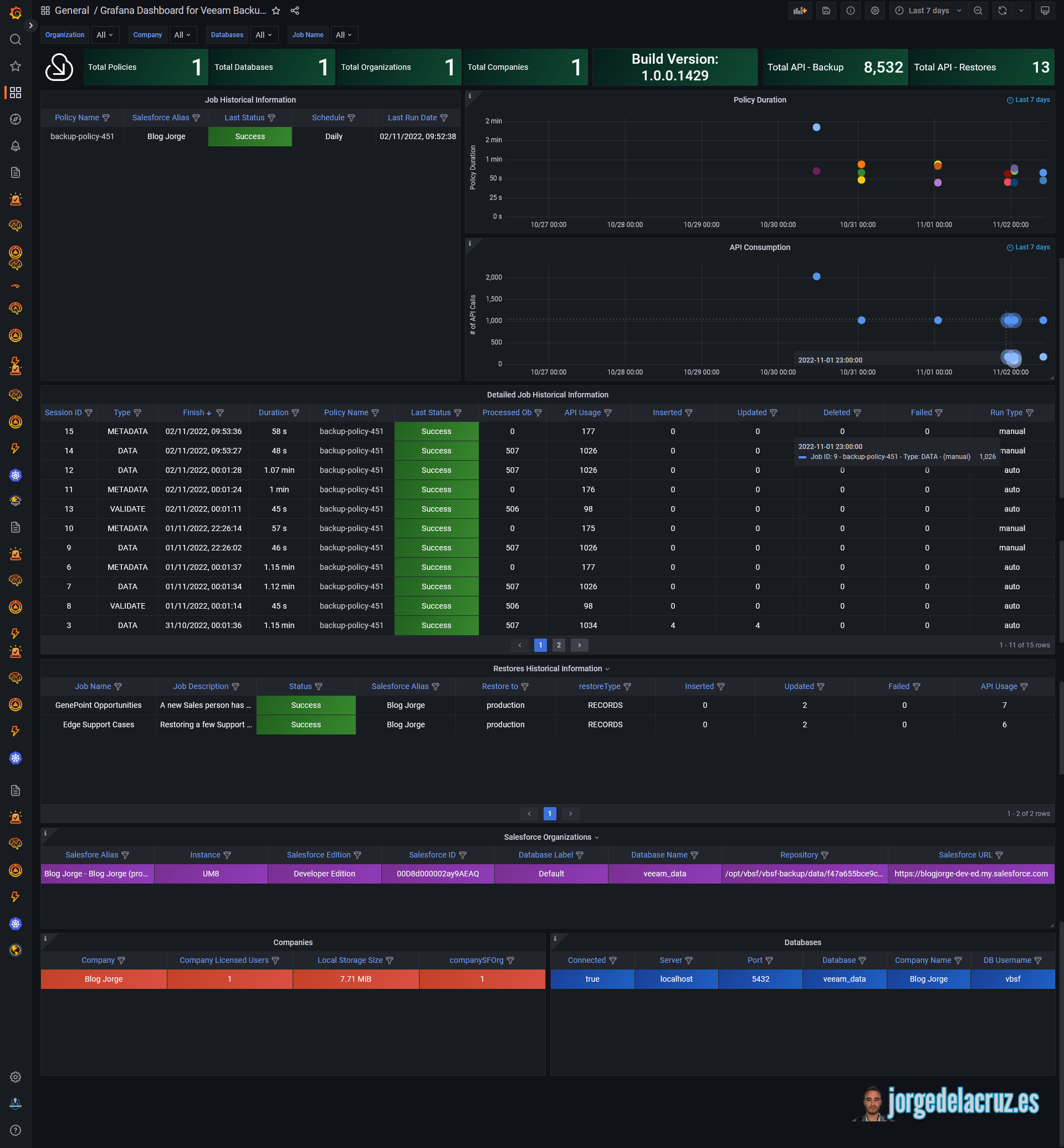

Grafana Dashboard for Veeam Backup for Salesforce screenshot 2

Just download the latest Veeam Backup for Salesforce script version from GitHub https://raw.githubusercontent.com/jorgedlcruz/veeam-backup-salesforce-grafana/main/grafana_influxdb_veeam_backup_salesforce.sh](https://raw.githubusercontent.com/jorgedlcruz/veeam-backup-salesforce-grafana/main/grafana_influxdb_veeam_backup_salesforce.sh) and change the Configuration section within your details:

# Configurations
##
# Endpoint URL for InfluxDB
##
veeamInfluxDBURL="http://YOURINFLUXSERVERIP" #Your InfluxDB Server, http://FQDN or https://FQDN if using SSL
veeamInfluxDBPort="8086" #Default Port
veeamInfluxDBBucket="veeam" # InfluxDB bucket name (not ID)
veeamInfluxDBToken="TOKEN" # InfluxDB access token with read/write privileges for the bucket
veeamInfluxDBOrg="ORG NAME" # InfluxDB organisation name (not ID)

# Endpoint URL for login action
veeamUsername="YOURVEEAMBACKUPUSER"
veeamPassword="YOURVEEAMBACKUPPASS"
veeamBackupSalesforceServer="https://YOURVEEAMBACKUPIP"
veeamBackupSalesforcePort="443" #Default Port

Once the changes are done, make the script executable with chmod:

chmod +x grafana_influxdb_veeam_backup_salesforce.sh

The output of the command should be something like the next, without errors:

Writing veeam_salesforce_jobslogs to InfluxDB
HTTP/2 204
date: Wed, 02 Nov 2022 10:38:58 GMT
trace-id: 4c0280f82196faa0
trace-sampled: false
strict-transport-security: max-age=15724800; includeSubDomains
x-influxdb-request-id: 4d65d754099599ded69f5f0ce99e7d08
x-influxdb-build: Cloud

If so, please now add this script to your crontab, like for example every 30 minutes:

*/30 * * * * /home/oper/ grafana_influxdb_veeam_backup_salesforce.sh >> /var/log/grafana_influxdb_veeam_backup_salesforce.log 2>&1

Then download or import this Dashboard to your Grafana, and you should see something similar to the next: alt tag
