Aipix Mediaserver Dashboard


InfluxDB dashboard to collect metrics from Aipix Mediaserver
Last updated: 22 days ago

Start with Grafana Cloud and the new FREE tier. Includes 10K series Prometheus or Graphite Metrics and 50gb Loki Logs

Downloads: 4

Reviews: 0

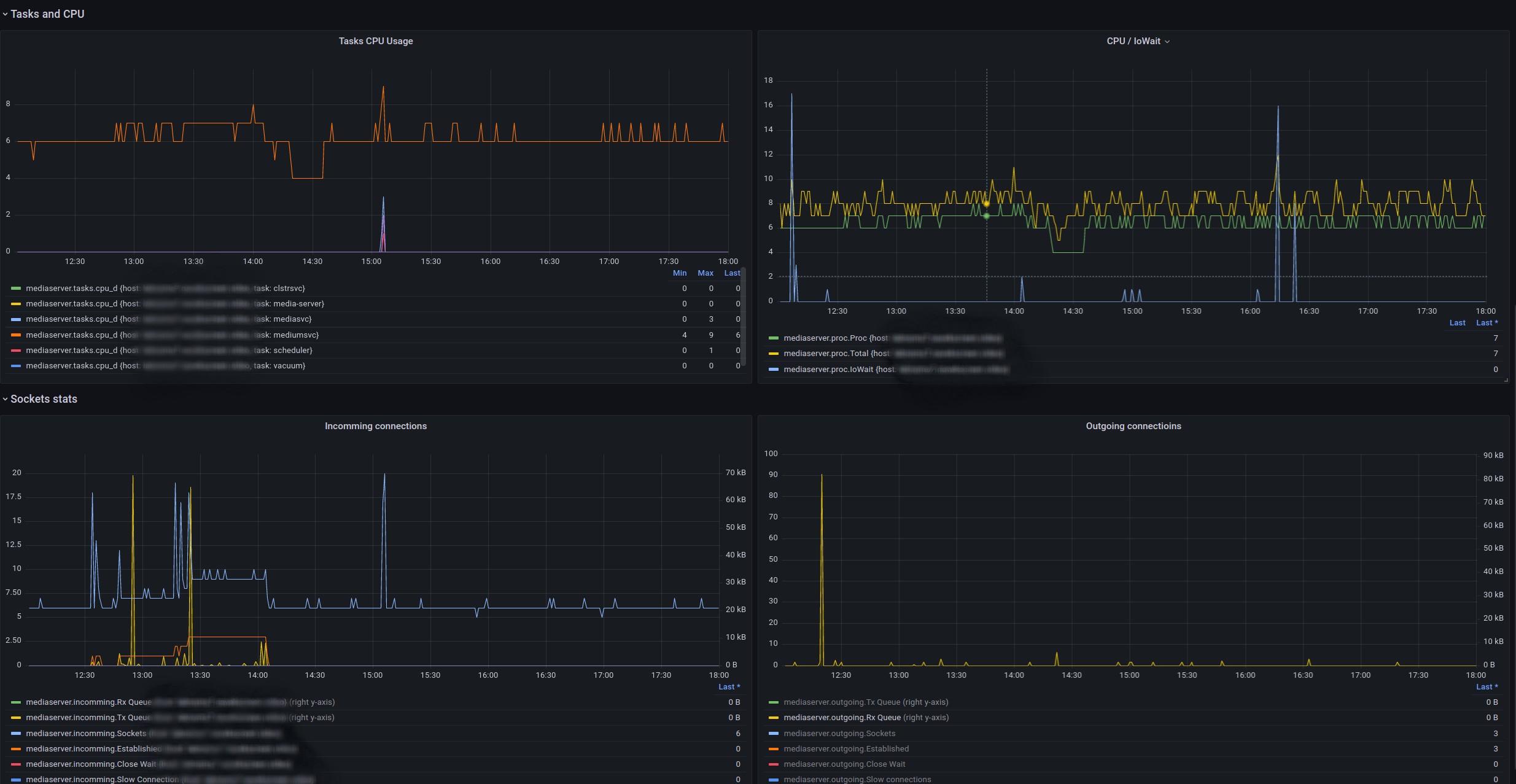

  • Screenshot from 2022-06-09 18-01-04.jpg
    Screenshot from 2022-06-09 18-01-04.jpg

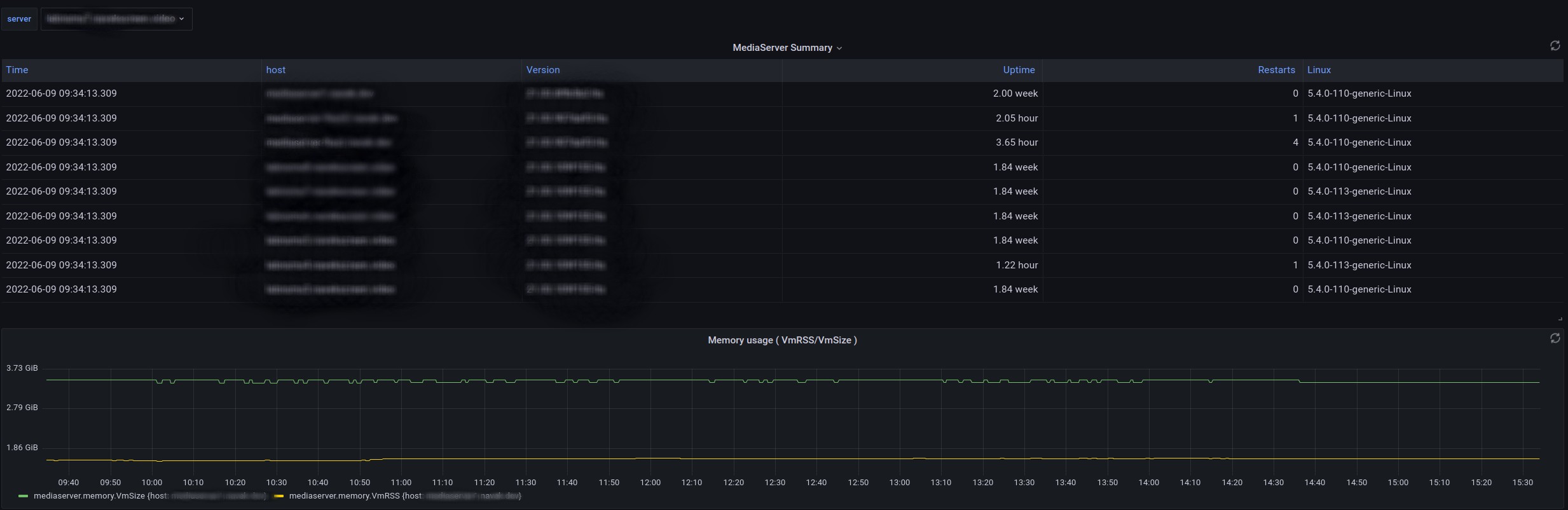

  • Screenshot from 2022-06-09 18-00-15.jpg
    Screenshot from 2022-06-09 18-00-15.jpg


Collector source files can be found on the GitHub Page:

How To Use

  • Install and setup Telegraf, InfluxDB, and Grafana to work with eachother.
  • Use the provided mediaserver-collector.conf file.
  • Clone Git repository with collector:
git clone /etc/telegraf/telegraf.d/inputs
  • Restart Telegraf.
  • Import the dashboard json file (or use Grafana Dashboard ID) to add the dashboard and panels to Grafana, selecting your own InfluxDB database after clicking "Import".
  • Enjoy!


Collected metrics:

  1. Mediaserver summary
    • current time
    • mediaserver hostname
    • mediaserver version
    • mediaserver uptime
    • number of mediaserver restarts
    • OS version of host mediaserver is installed at
  2. Memory usage
    • VmSize – size of available for use memory
    • VmRss – size of used memory
  3. Tasks usage
    • mediasvc – customer service streams
    • mediumsvc – streams capturing cameras
    • websvc – API\Cpanel
    • scheduler\vacuum\cluster – auxiliary
  4. CPU usage
  5. Sockets connections (incoming/outgoing)
    • RxQueue – number of unreceived data
    • TxQueue – send queue
    • Sockets – total open sockets
    • Established – number of established connections
    • Close Wait – semi-closed connections
    • Slow Connection – slow connections, delivery takes more than 100 milliseconds

Collector Configuration Details

Сreate a new file under /etc/telegraf/telegraf.d/mediaserver-collector.conf and add the next:

commands = [
     "/etc/telegraf/telegraf.d/inputs/ io",
     "/etc/telegraf/telegraf.d/inputs/ memory",
     "/etc/telegraf/telegraf.d/inputs/ proc",
     "/etc/telegraf/telegraf.d/inputs/ tasks",
     "/etc/telegraf/telegraf.d/inputs/ sockets",
timeout = "10s"
interval = "60s"
data_format = "influx"
