Tarantool Data Grid dashboard

Dashboard for Tarantool Data Grid ver. 2 application monitoring, based on grafonnet library.

About project

This dashboard is based on grafonnet library. Sources are available in project’s GitHub page.

Configuration

The dashboard is designed to work with TDG + Prometheus + Grafana cluster.

TDG configuration

The dashboard is designed to work with Tarantool Data Grid (ver. 2) cluster.

TDG must be configured to have a prometheus metrics endpoint for Prometheus (refer to cartridge.roles.metrics role page for instructions).

Dashboard

Metrics used in dashboard are based on Tarantool metrics module and TDG metrics. Time series are grouped by alias parameter, so you can use this dashboard to monitor a cluster of Tarantool instances.

Dashboard contains the following sections:

  • Cluster overview
  • Tarantool network activity
  • Tarantool memtx allocation overview
  • Tarantool vinyl statistics
  • Tarantool CPU statistics
  • Tarantool runtime overview
  • Tarantool LuaJit statistics
  • Tarantool operations statistics
  • TDG Kafka common statistics
  • TDG Kafka brokers statistics
  • TDG Kafka topics statistics
  • TDG Kafka consumer statistics
  • TDG Kafka producer statistics
  • TDG expirationd statistics
  • TDG tuples statistics
  • TDG file connectors statistics
  • TDG GraphQL requests
  • TDG IProto requests
  • TDG REST API requests
  • TDG tasks statistics

Cluster overview

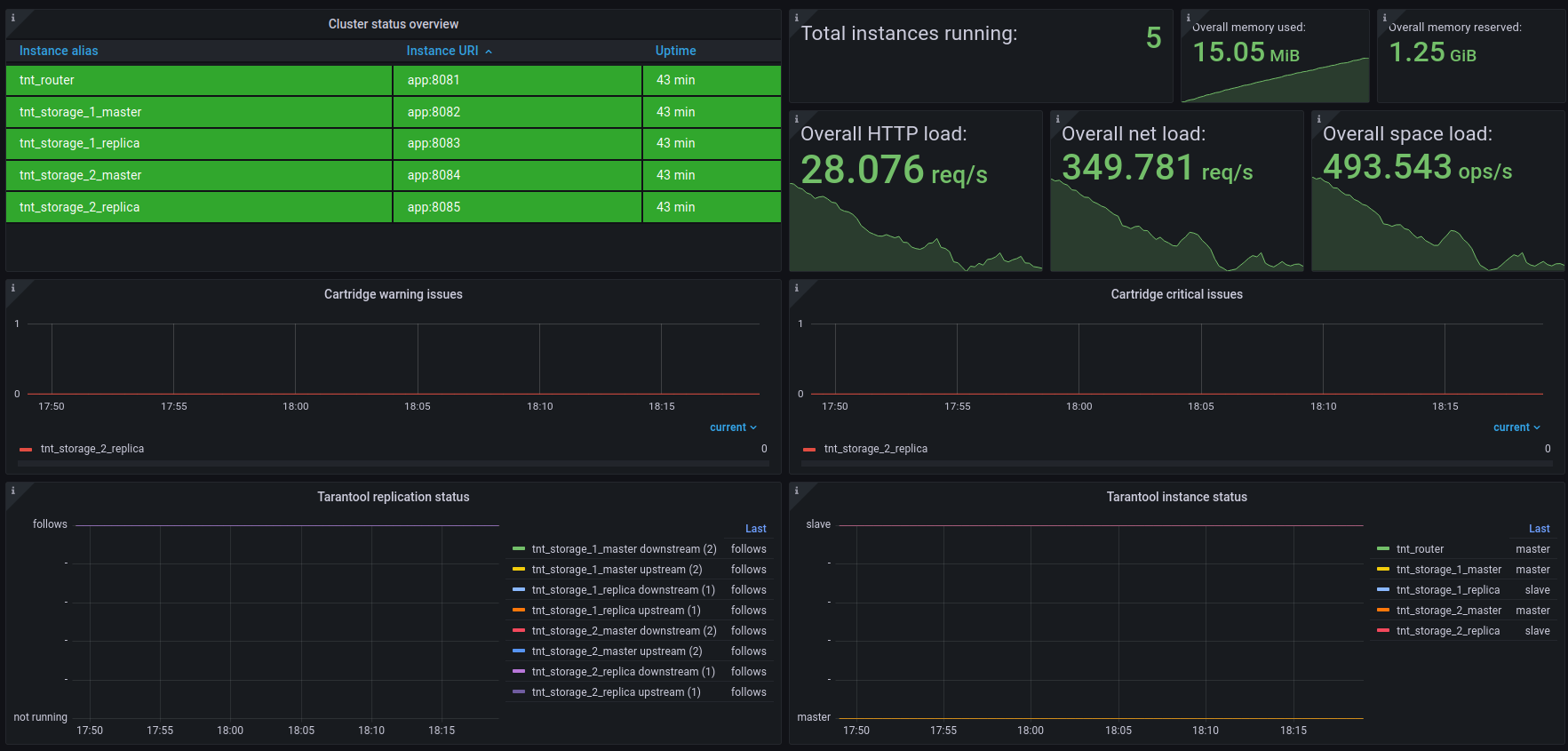

Contains several cluster overview panels, providing some aggregated info on cluster instances health, overall load and memory stats. Also contains panels on Cartridge issues count, replication lag and status, read only status and instances clock delta.

Tarantool network activity

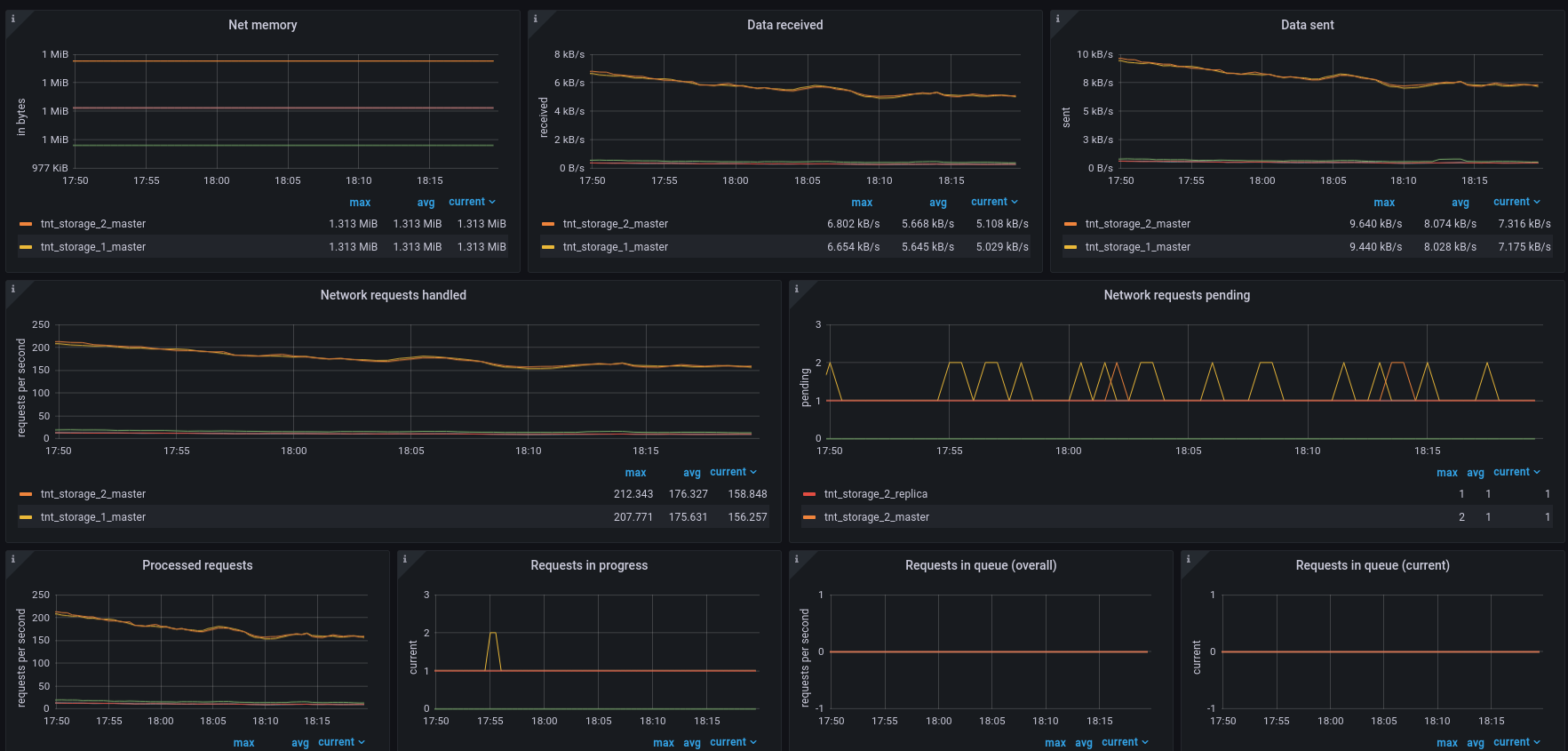

Overview of instances network activity. Displays input and output data load, as well as network connections, detailed requests stats and memory consumption.

Tarantool memtx allocation overview

Overview of Tarantool memtx memory allocation (tuples and indexes). Contains short instruction on memory allocation monitoring. You can read more about slab here.

Tarantool vinyl statistics

Overview of Tarantool vinyl memory and disk allocation, vinyl scheduler process and transaction statistics. You can read more about vinyl engine here.

Tarantool CPU statistics

Contains CPU process time statistics for each instance and separate thread load.

Tarantool runtime overview

Metrics related to runtime. Contains Lua and transaction memory panels, fiber statistics panels and event loop panel.

Tarantool LuaJit statistics

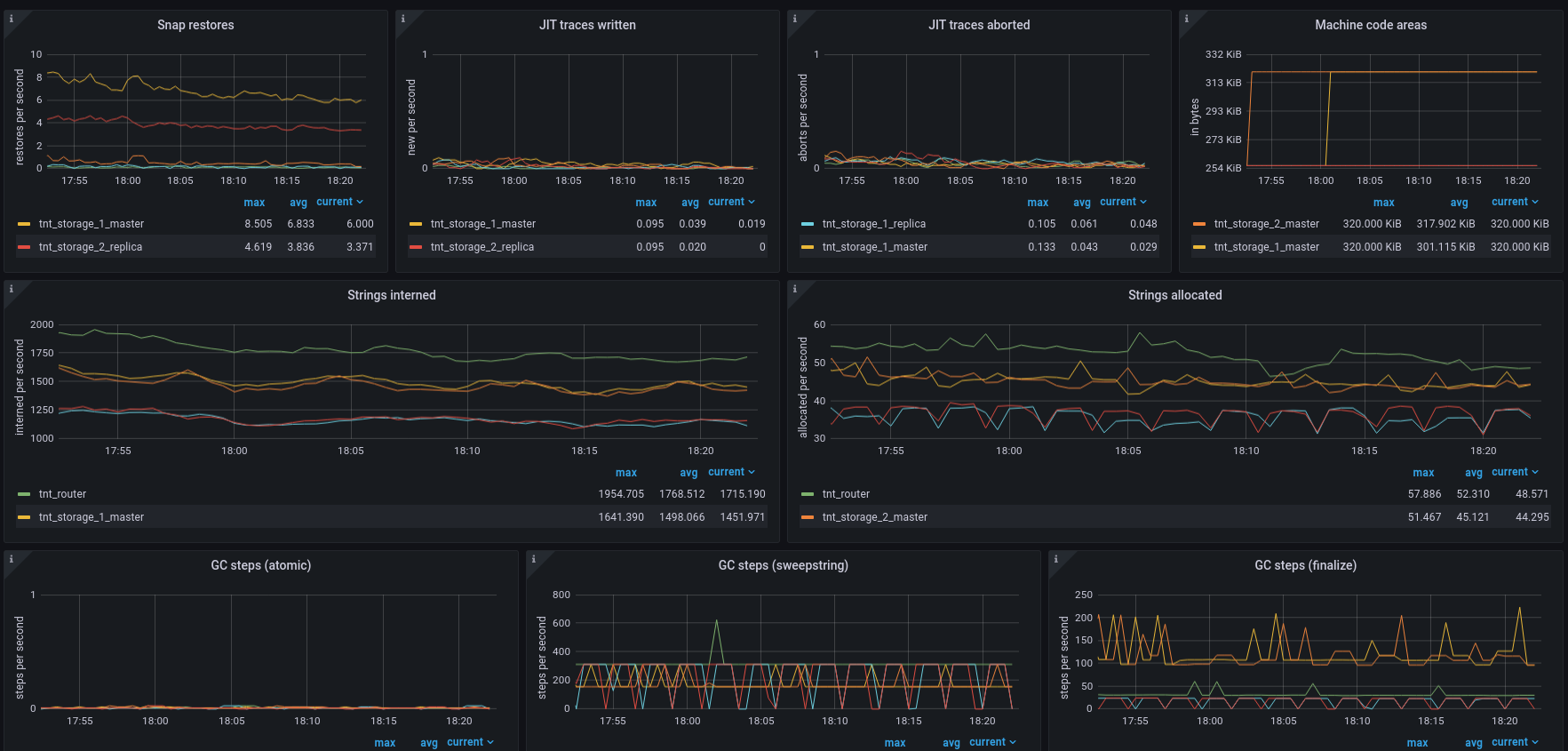

Detailed Lua runtime overview. Contains panels about objects allocation and garbage collect, memory consumption and LuaJit traces info.

Tarantool operations statistics

Overview of operations on Tarantool spaces (select, update, etc.) aggregated over all Tarantool spaces, as well as other operations activity (eval, call, auth, errors and SQL calls).

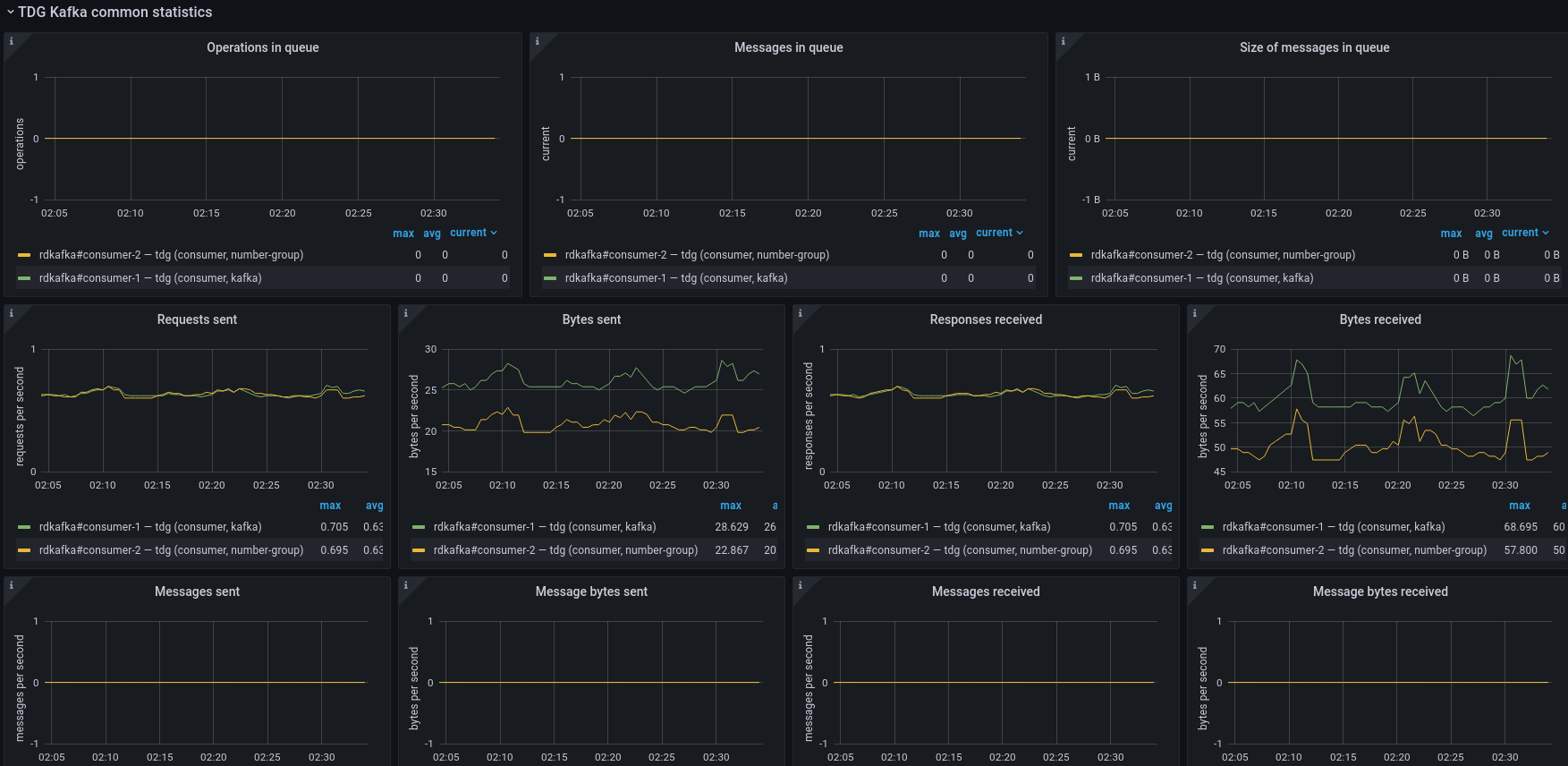

TDG Kafka common statistics

TDG Kafka connector common statistics. See librdkafka “top-level” statistics section for details.

TDG Kafka brokers statistics

TDG Kafka connector brokers statistics. See librdkafka “brokers” statistics section for details.

TDG Kafka topics statistics

TDG Kafka connector topics statistics. See librdkafka “topics” statistics section for details.

TDG Kafka consumer statistics

TDG Kafka connector consumer statistics. See librdkafka “cgrp” statistics section for details.

TDG Kafka producer statistics

TDG Kafka connector producer statistics. See librdkafka “eos” statistics section for details.

TDG expirationd statistics

TDG expirationd module statistics.

TDG tuples statistics

Tuple find operations statistics.

TDG file connectors statistics

File connectors overall and current process statistics.

TDG GraphQL requests

TDG API GraphQL requests statistics.

TDG IProto requests

TDG API IProto net.box calls statistics.

TDG REST API requests

TDG REST API requests statistics.

TDG tasks statistics

TDG tasks, jobs and system tasks statistics.

Contributing

Project is open-sourced, so you can freely file an issue with suggestion or bug report to our GitHub page.
