5 - APM Upstream Dependencies
Map of upstream service dependencies for a specific service and operation
APM Overview dashboard offered by Promscale on top of traces by leveraging SQL and TimescaleDB capabilities.
This dashboard contains:

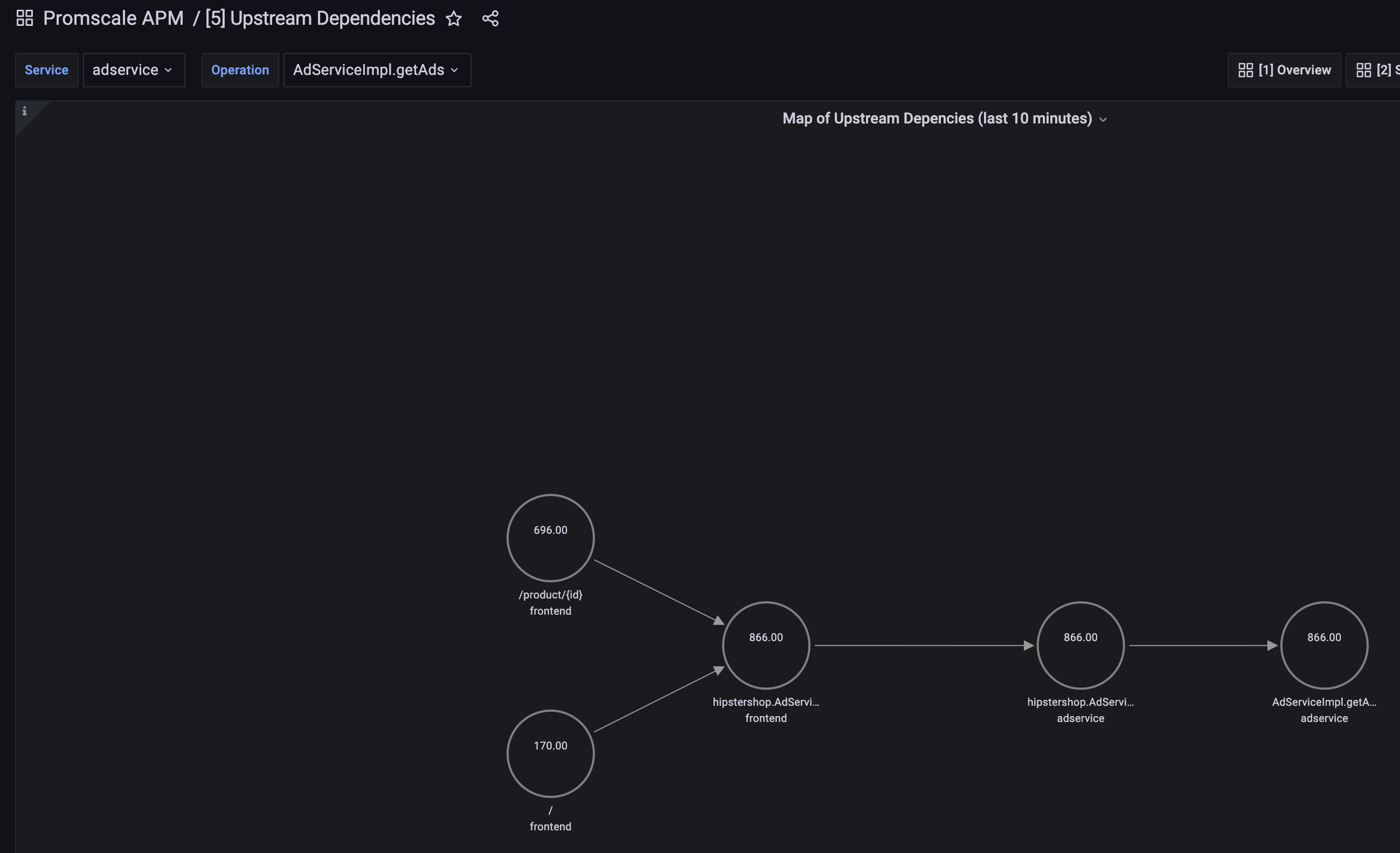

- Map of Upstream Dependencies representing nodes and edges here nodes are services and edges are connections between services. This panel represents all upstream dependencies for the selected service and operation.
Data source config
Collector type:
Collector plugins:
Collector config:
