FMADIO PCAP2JSON Dashboard

Visualisation of granular network metadata

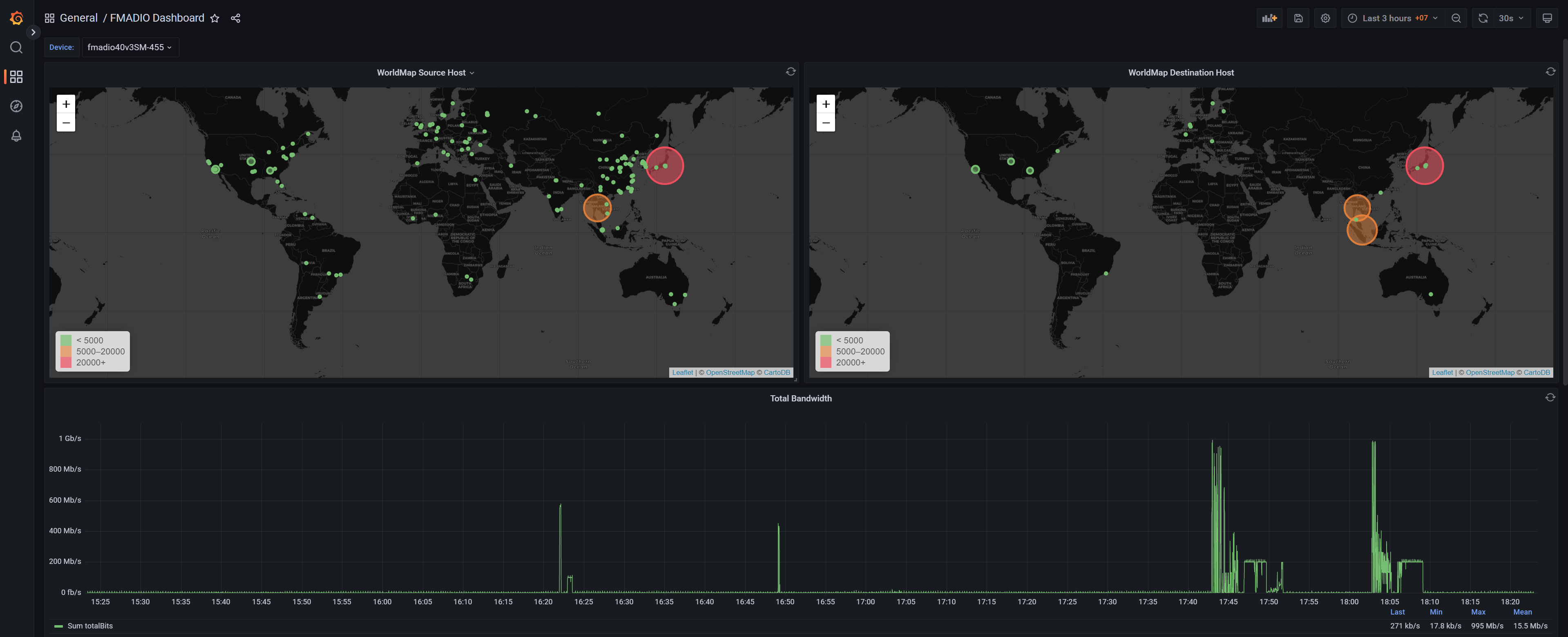

FMADIO PCAP2JSON Dashboard screenshot 1

FMADIO PCAP2JSON Dashboard is for visualising granular metadata produced by FMADIO 10G 40G 100G Packet Capture Appliances running the PCAP2JSON module

PCAP2JSON produces high granularity Netflow-like metadata at up to 60Gbps and exports as JSON documents direct to Elasticsearch or other software. This dashboard visualises that data from Elasticsearch.

Metrics reported include:

  • MAC addresses
  • IP addresses
  • Protocols
  • Ports
  • Applications
  • GeoIP locations
  • VLANs
  • Data and Packet rates
  • TCP flags
  • TCP Zero Windows

More info FMADIO 10G 40G 100G Packet Capture
