JMeter_Promethius_Grafana

Dashboard

A grafana dashboard to inspect jmeter metrics via prometheus
Last updated: 10 months ago

Start with Grafana Cloud and the new FREE tier. Includes 10K series Prometheus or Graphite Metrics and 50gb Loki Logs

Downloads: 107

Reviews: 0

  • J1.PNG
  • D3.PNG
  • D2.PNG
  • D1.PNG

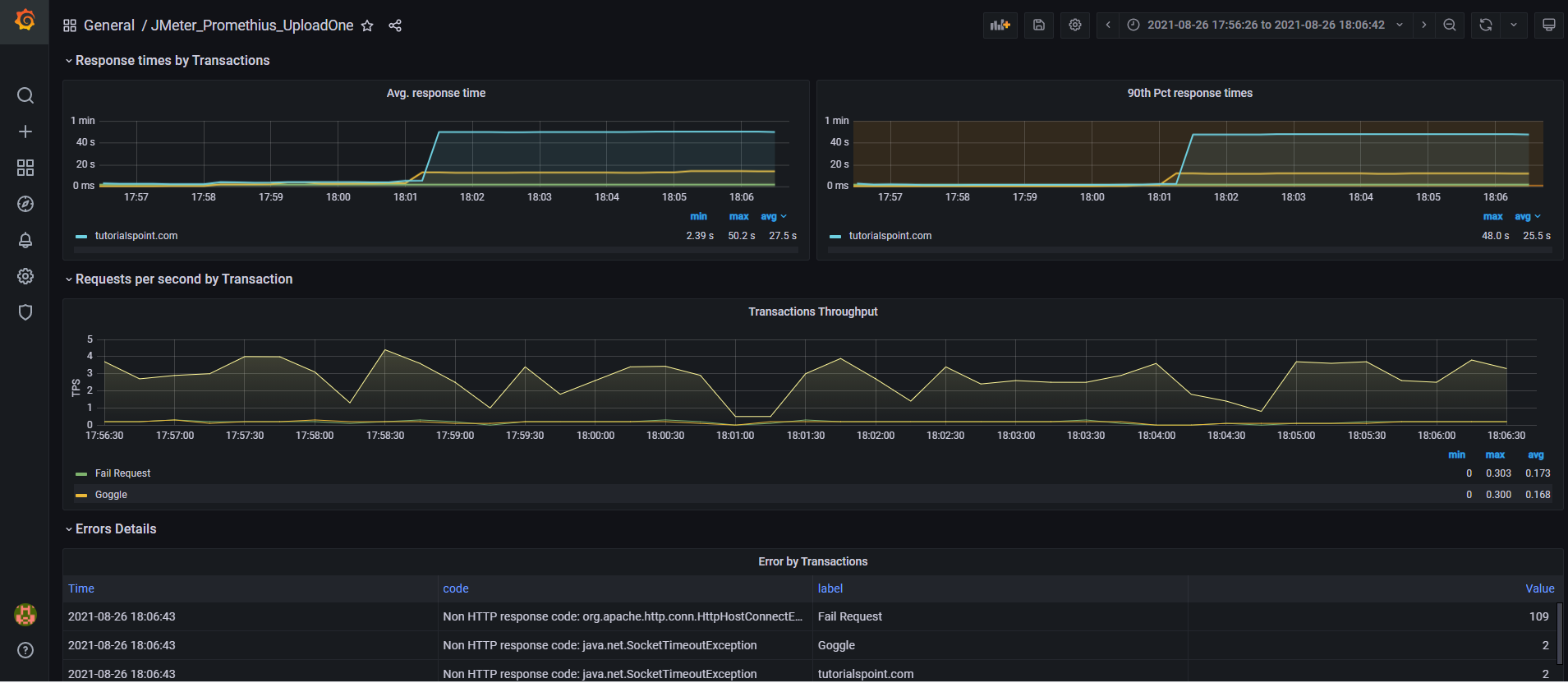

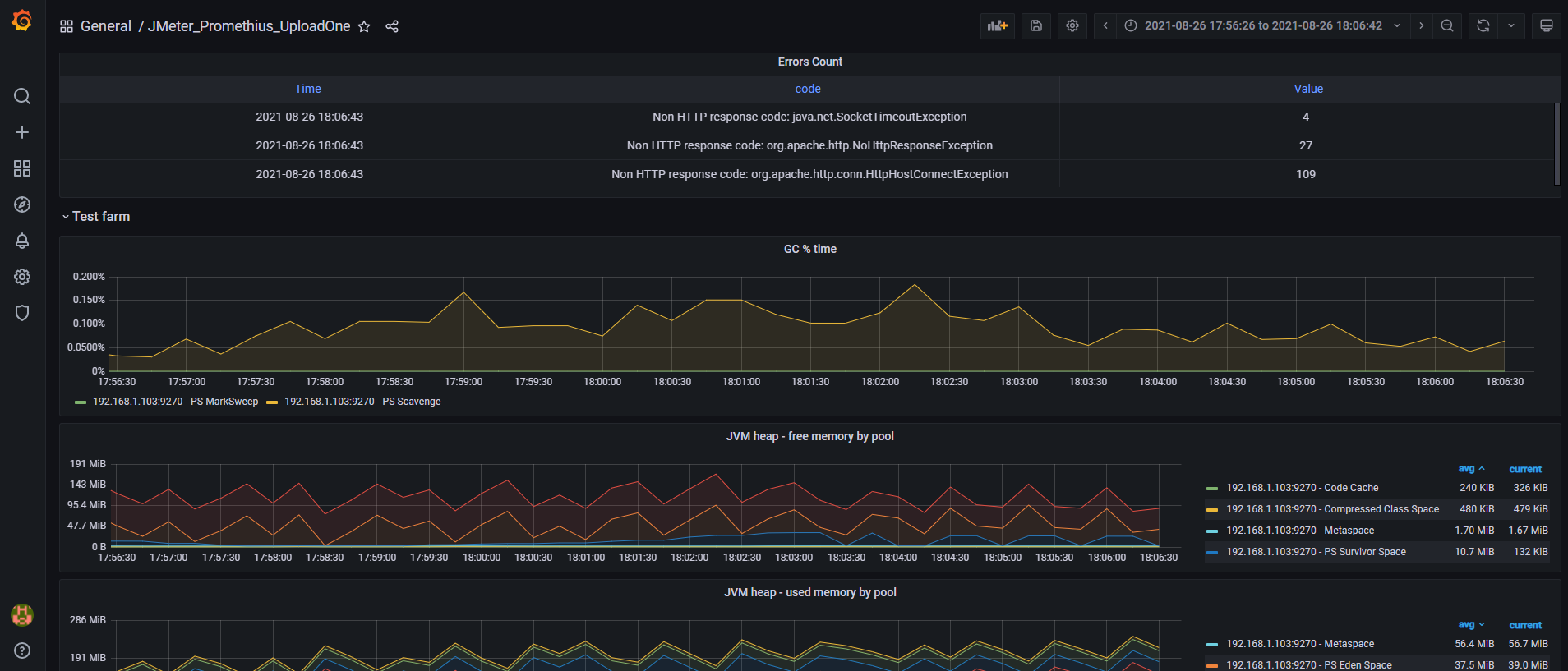

This is initial version of Dashboard using Prometheus .

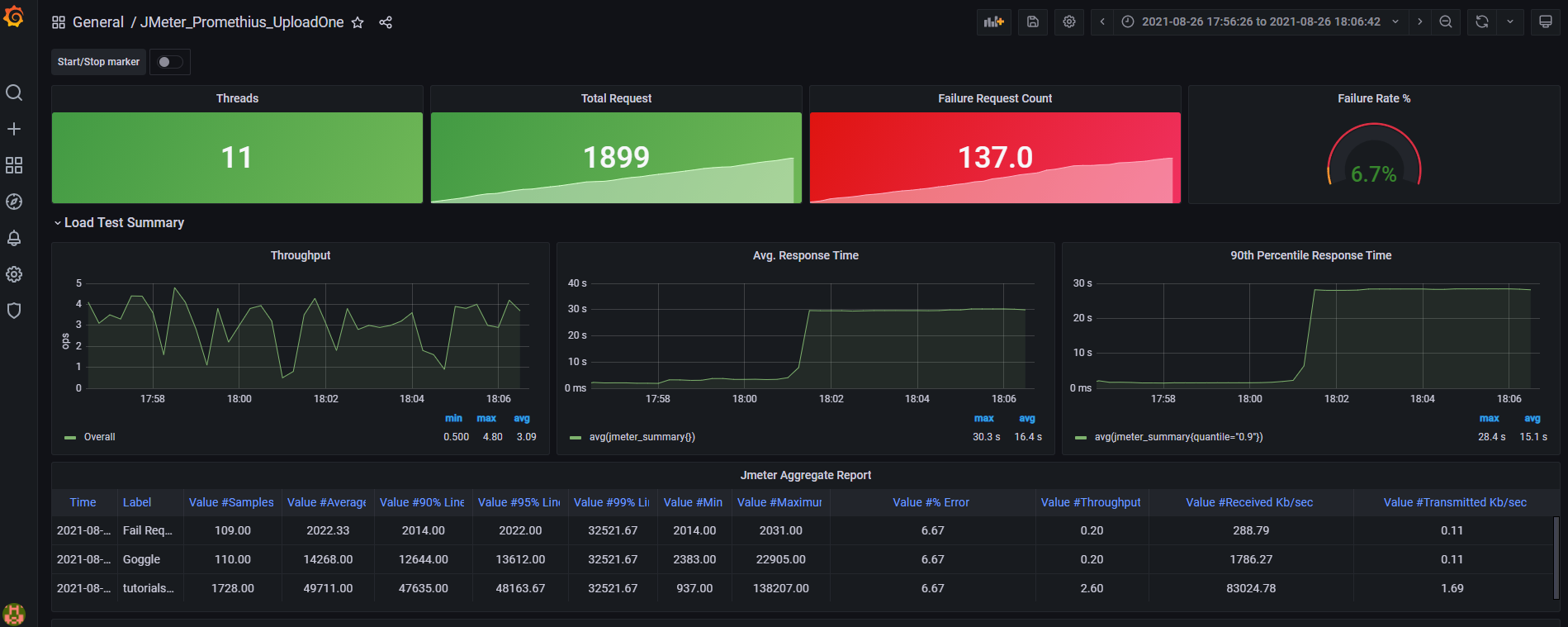

It has full of metrices which required to monitor at client side included Jmeter aggregate report as well

Prometheus and Grafana running on different different servers .

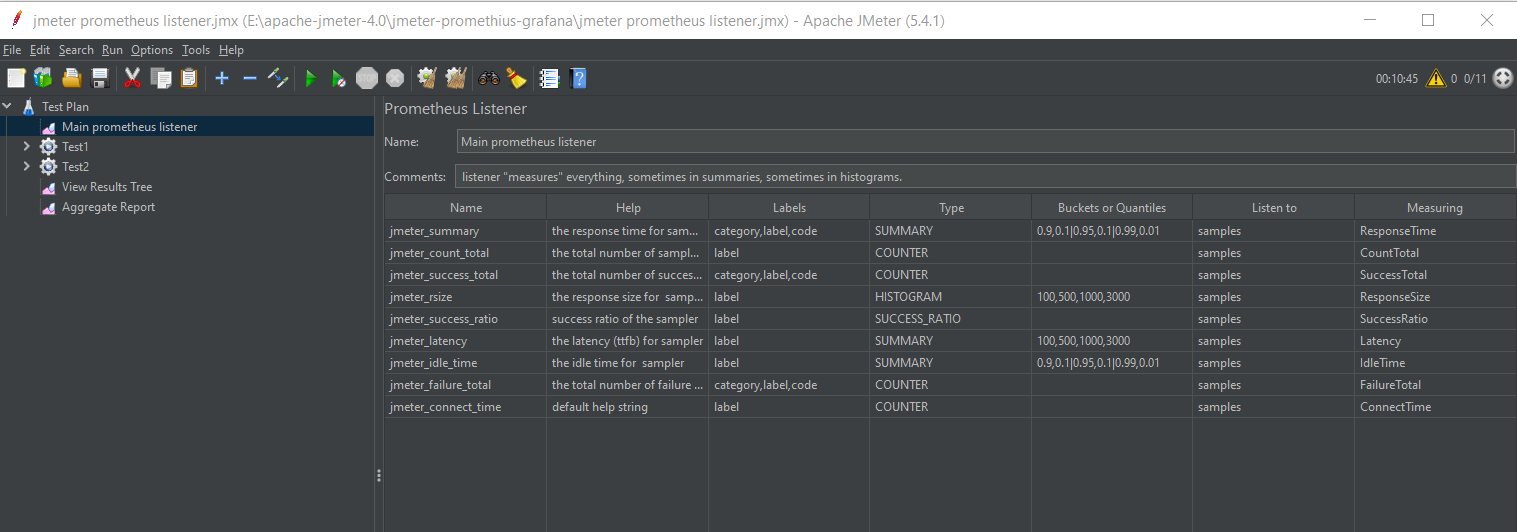

Put below changes in JMeter user.properties file in jmeter at /bin #server.rmi.ssl.disable=false #The port the http server will bind to prometheus.port=9270
#The ip the http server will bind to. Containers may need 0.0.0.0 . prometheus.ip=0.0.0.0 #The delay (in seconds) the http server will wait before being destroyed prometheus.delay=0
#True or false value to save and collect jmeter thread metrics prometheus.save.threads=true
#The name of the metric describing jmeter threads prometheus.save.threads.name=jmeter_threads
#Collect metrics from the JVM prometheus.save.jvm=true

Note : little data discrepancy you can find ..working on that

Email : vinaykr253@gmail.com

Get this dashboard:
14927
