HPE Storage Volume Details
Provides a drill-down overview of a volume.

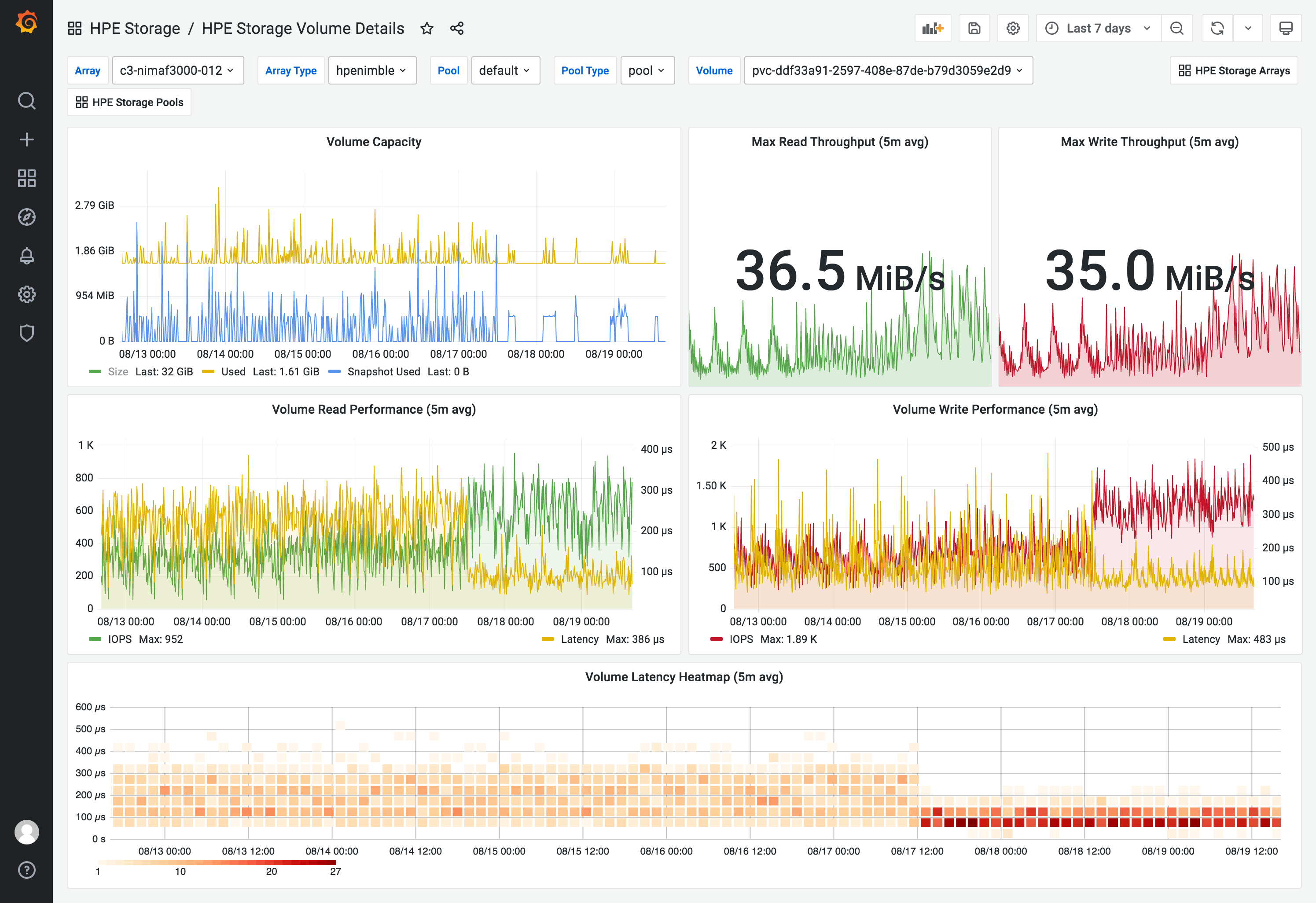

This dashboard provide an overview of a particular volume found in the datasource using a HPE Storage Array Exporter for Prometheus scrape target.
Requirements
- Scrape target label named “array” with the storage array name or designation.
- Requires the following drill-down dashboards to function properly:
The source metrics needs to be normalized with the following metric_relabel_configs for the scrape target.
metric_relabel_configs:
- source_labels: [__name__]
action: labelmap
regex: "cpg|pool"
replacement: "storagepool"
- source_labels: [__name__]
regex: "^hpe(primera|nimble|3par|alletra6000|alletra9000)_(.*)"
target_label: "__name__"
replacement: "hpe_$2"
- source_labels: [__name__]
regex: "^hpe_(pool|cpg)_(.*)"
target_label: "__name__"
replacement: "hpe_storagepool_$2"Resources
This dashboard utilize the officially supported exporter for HPE storage systems.
Support
This dashboard is provided, as-is, as an example and it’s not officially supported by HPE. Join us on Slack at slack.hpedev.io in the storage platform channels if you have questions or feedback.
Data source config
Collector type:
Collector plugins:
Collector config:
