HPE Storage Volumes

List volumes in a pool or CPG for volume drill-down.

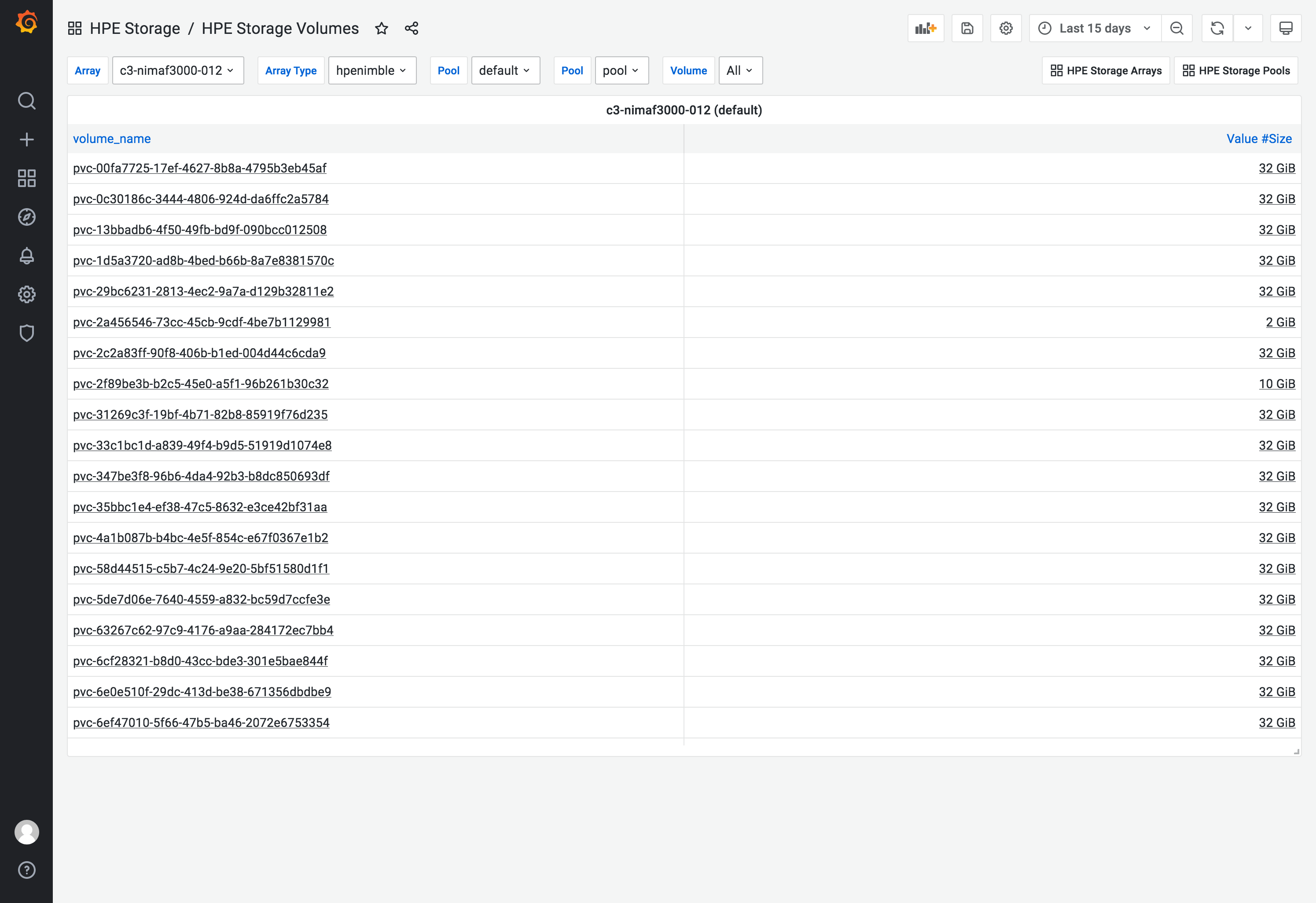

HPE Storage Volumes screenshot 1

This dashboard enumerates volumes found in particular pool or CPG found in the datasource using a HPE Storage Array Exporter for Prometheus scrape target.

Requirements

The source metrics needs to be normalized with the following metric_relabel_configs for the scrape target.

metric_relabel_configs:
  - source_labels: [__name__]
    action: labelmap
    regex: "cpg|pool"
    replacement: "storagepool"
  - source_labels: [__name__]
    regex: "^hpe(primera|nimble|3par|alletra6000|alletra9000)_(.*)"
    target_label: "__name__"
    replacement: "hpe_$2"
  - source_labels: [__name__]
    regex: "^hpe_(pool|cpg)_(.*)"
    target_label: "__name__"
    replacement: "hpe_storagepool_$2"

Resources

This dashboard utilize the officially supported exporter for HPE storage systems.

Support

This dashboard is provided, as-is, as an example and it’s not officially supported by HPE. Join us on Slack at slack.hpedev.io in the storage platform channels if you have questions or feedback.
