HPE CSI Driver for Kubernetes Namespace Explorer

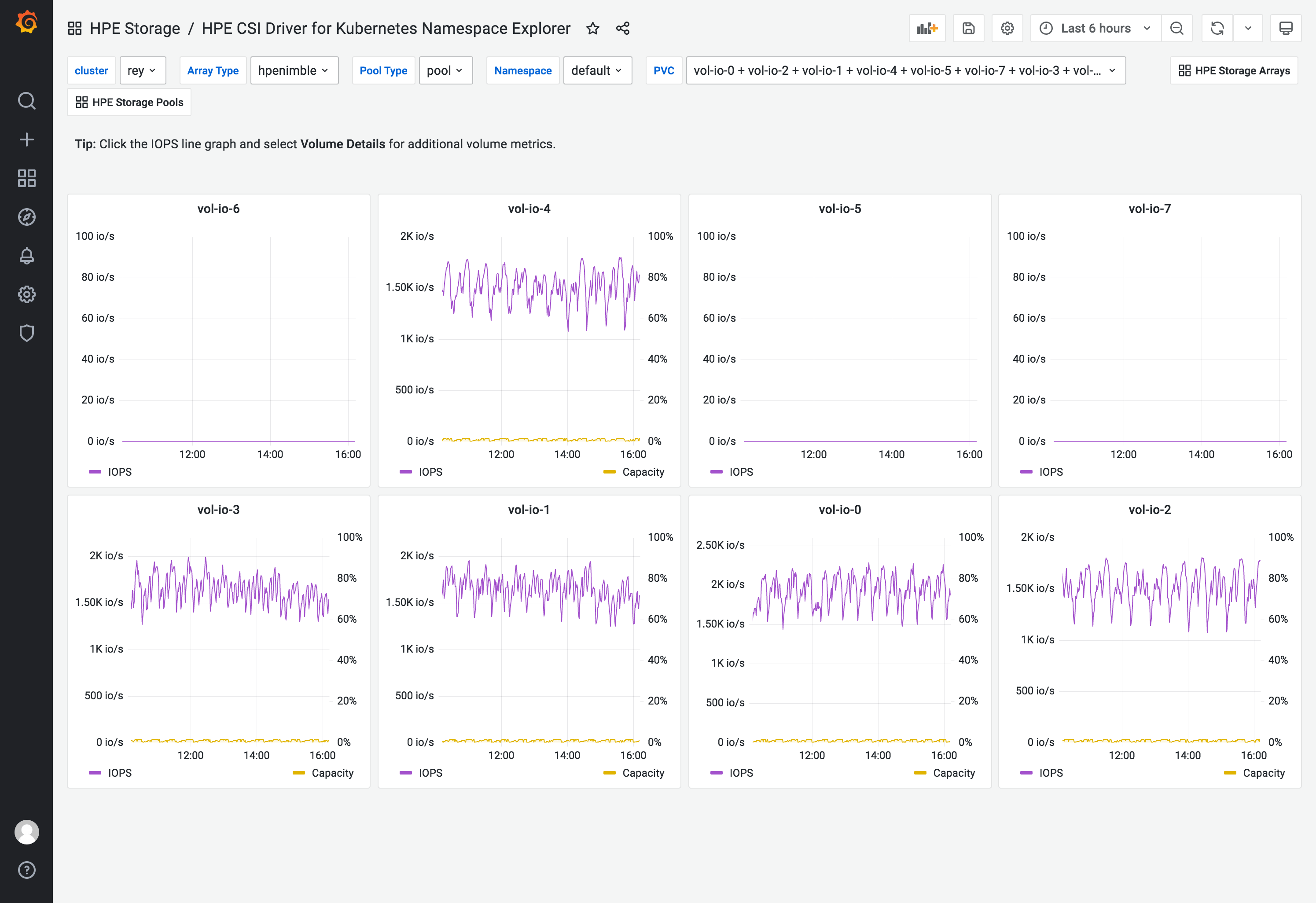

Provides an overview of a Namespace from a HPE CSI Driver for Kubernetes perspective.
This dashboard enumerates PersistentVolumeClaims
in a Kubernetes Namespace and provide drill-down capabilities.
Requirements
HPE CSI Info Metrics Provider for Kubernetes deployed on the cluster with a “cluster” target label designating a cluster name. The source metrics needs to be normalized with the following metric_relabel_configs
for the scrape target.
metric_relabel_configs:
- source_labels: [__name__]
action: labelmap
regex: "cpg|pool"
replacement: "storagepool"
- source_labels: [__name__]
regex: "^hpe(primera|nimble|3par|alletra6000|alletra9000)_(.*)"
target_label: "__name__"
replacement: "hpe_$2"
- source_labels: [__name__]
regex: "^hpe_(pool|cpg)_(.*)"
target_label: "__name__"
replacement: "hpe_storagepool_$2"
HPE Storage Array Exporter for Prometheus
- Scrape target label named “array” with the storage array name or designation.
- Requires the following drill-down dashboards to function properly:
Resources
This dashboard utilize the officially supported exporters for HPE storage systems.
Support
This dashboard is provided, as-is, as an example and it’s not officially supported by HPE. Join us on Slack at slack.hpedev.io in the storage platform channels if you have questions or feedback.
