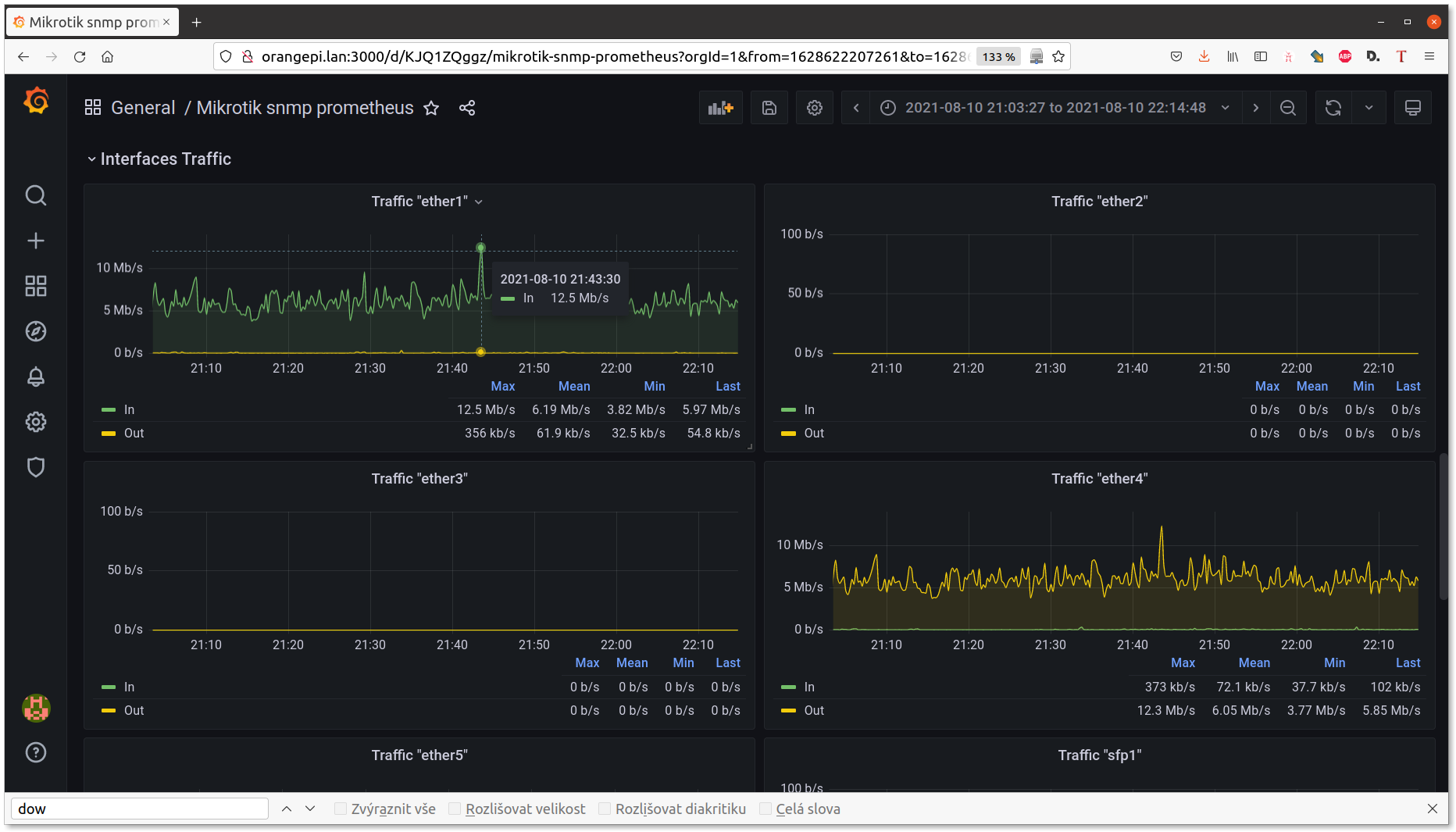

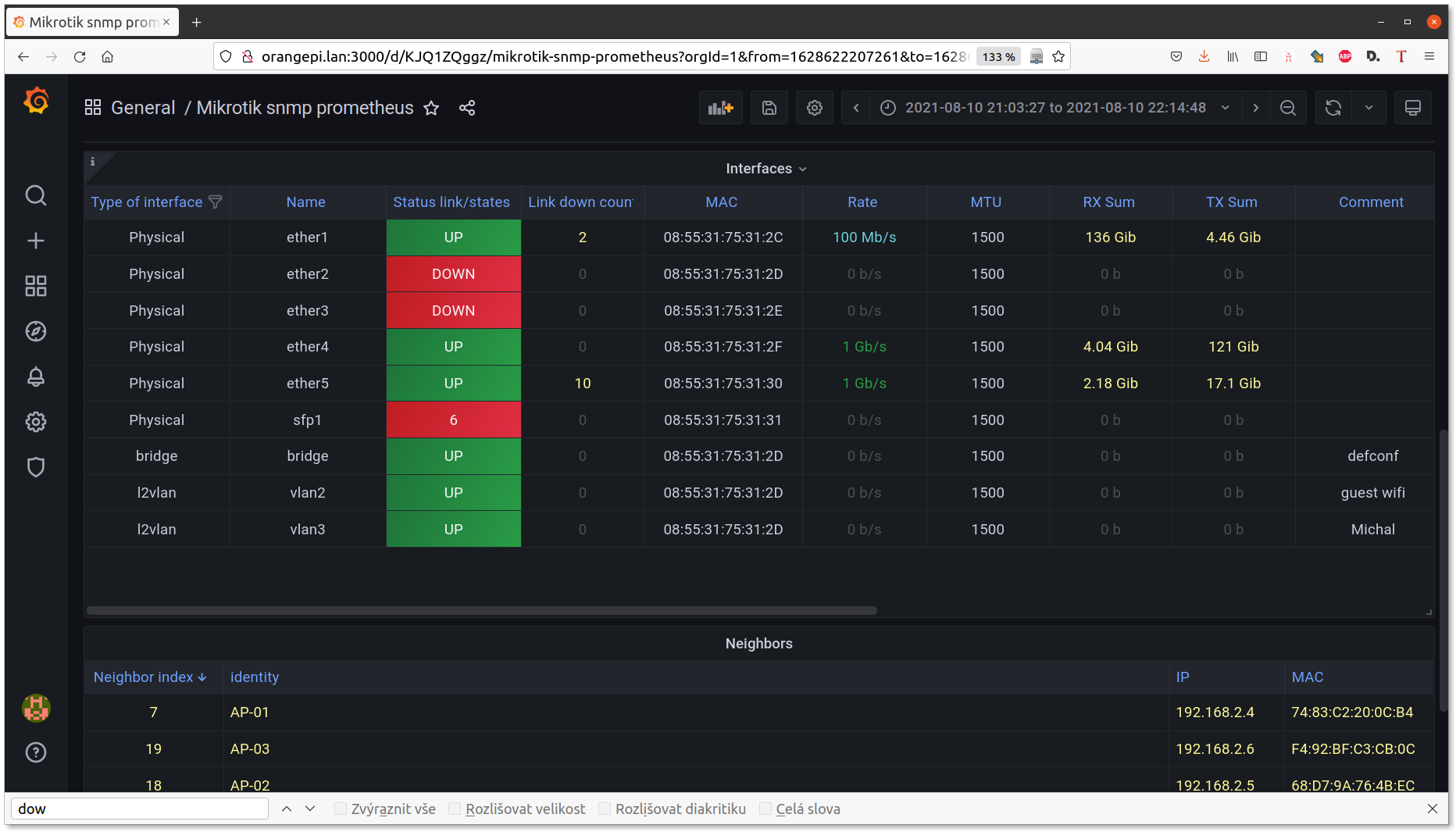

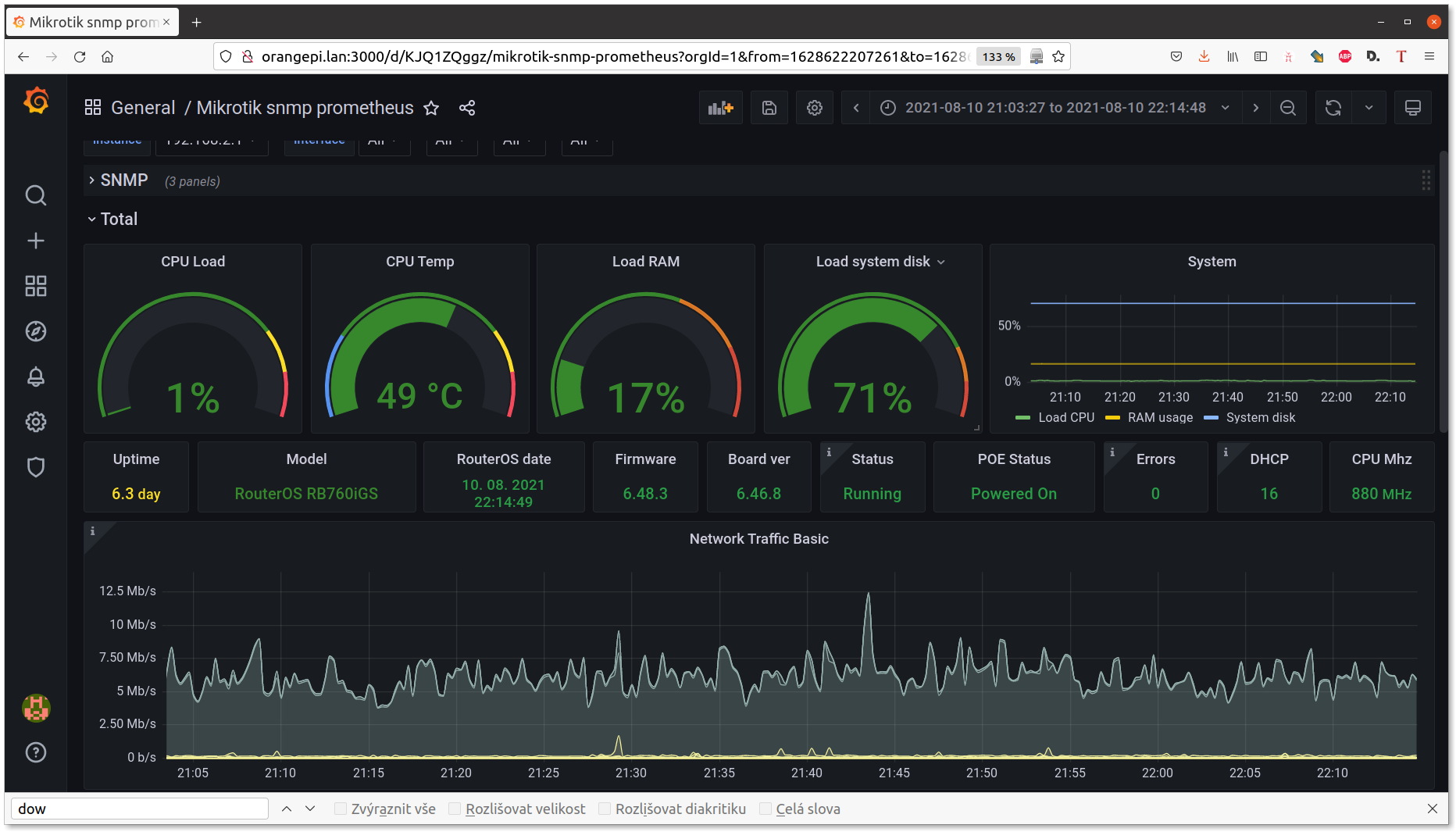

Mikrotik snmp monitoring (prometheus)
This dashboard is based on ID 14420. It is a matter of simplification and clarity. It depends on Prometheus and SNMP Exporter https://github.com/prometheus/snmp_exporter In order for the data to be complete, it is necessary to write “params: module: [mikrotik]” in the Prometheus target config. Tested on MikroTik RB760iGS hEX S and Orange Pi Plus R1 with Docker. Last version compatible with snmp-exporter v0.23.0 / 2023-07-20
