JMX Dashboard(Basic)

jmx exporter monitor

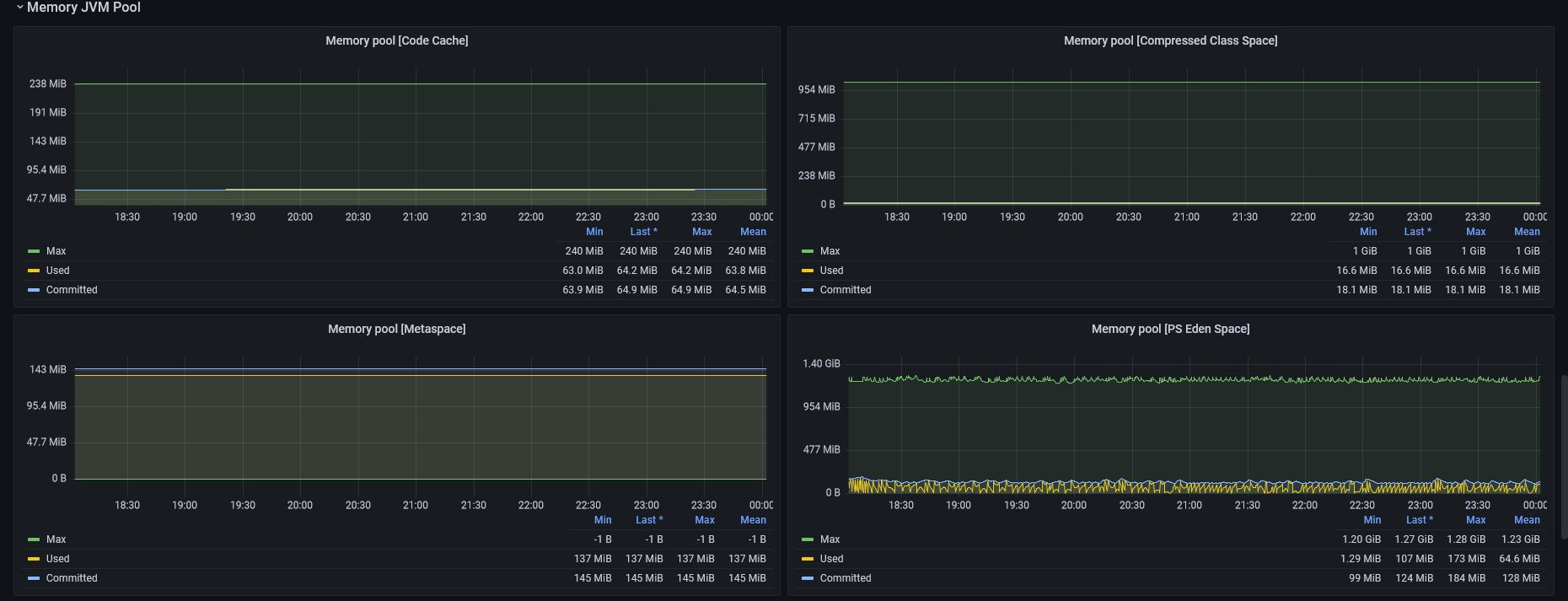

JMX Dashboard(Basic) screenshot 1

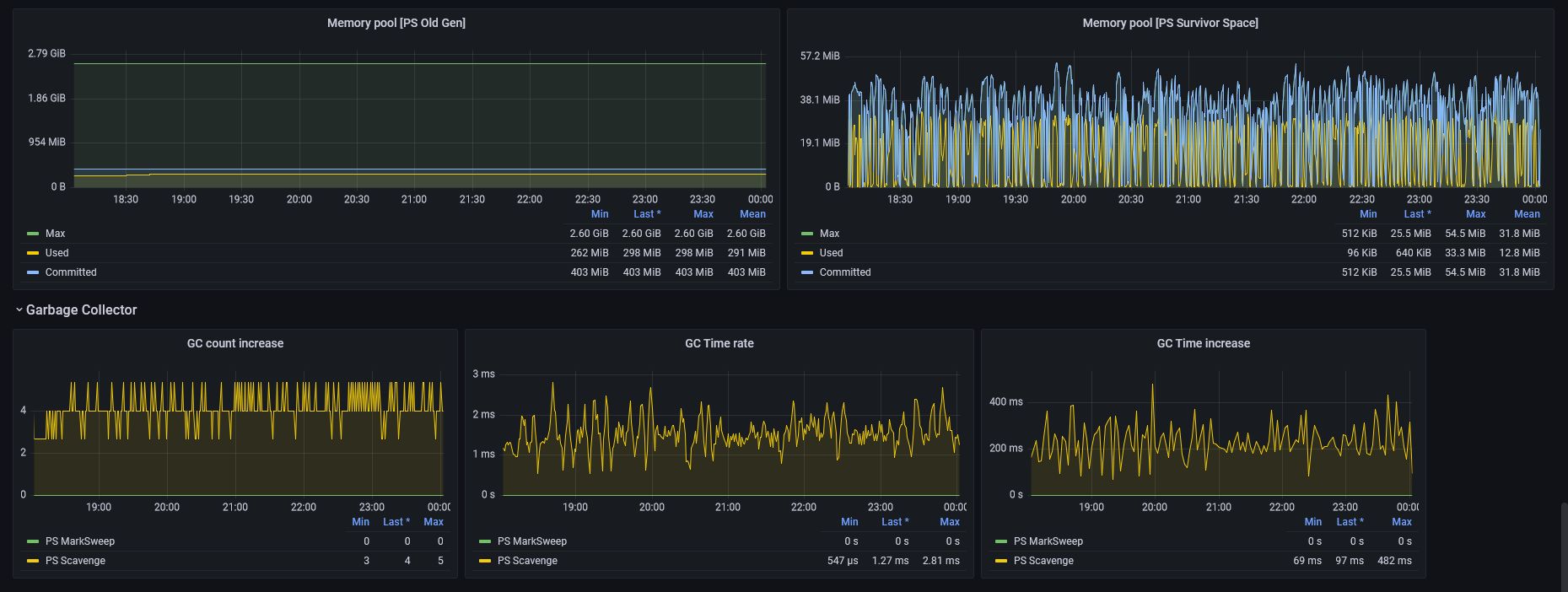

JMX Dashboard(Basic) screenshot 2

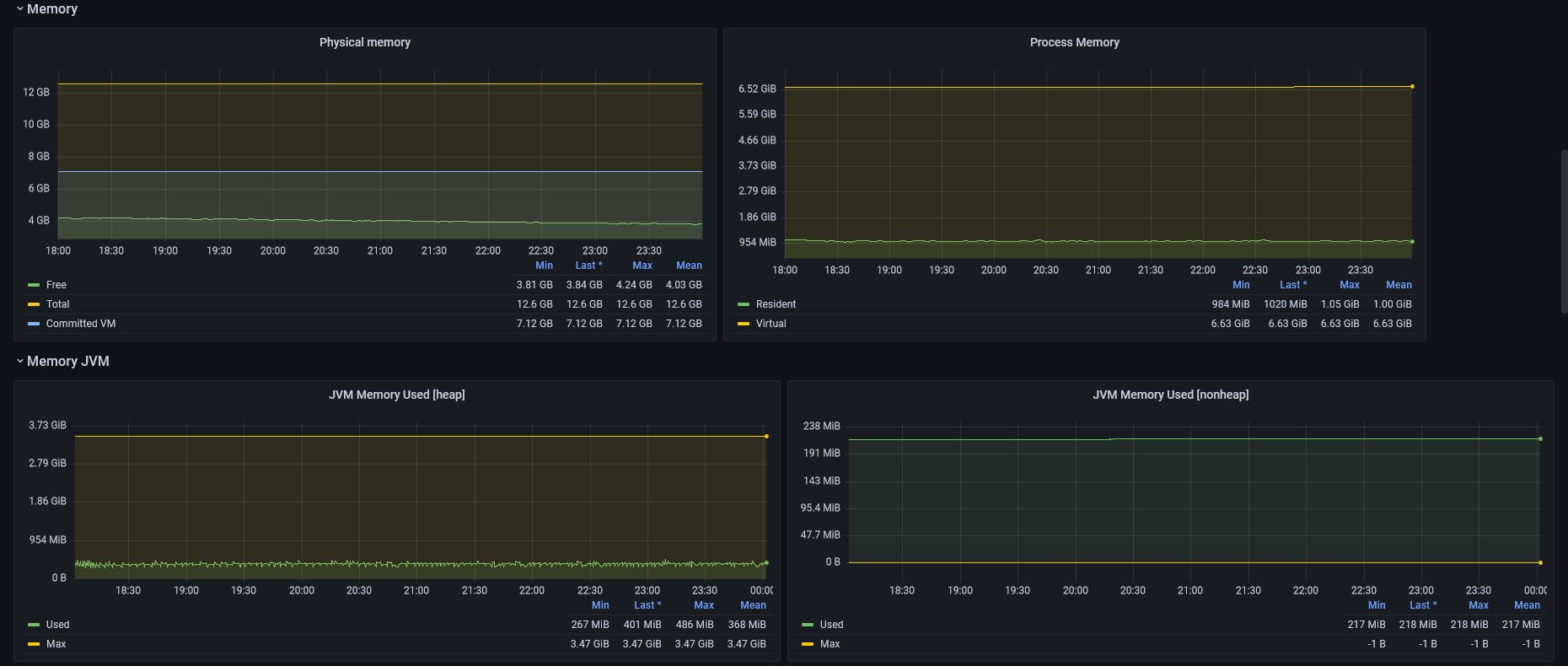

JMX Dashboard(Basic) screenshot 3

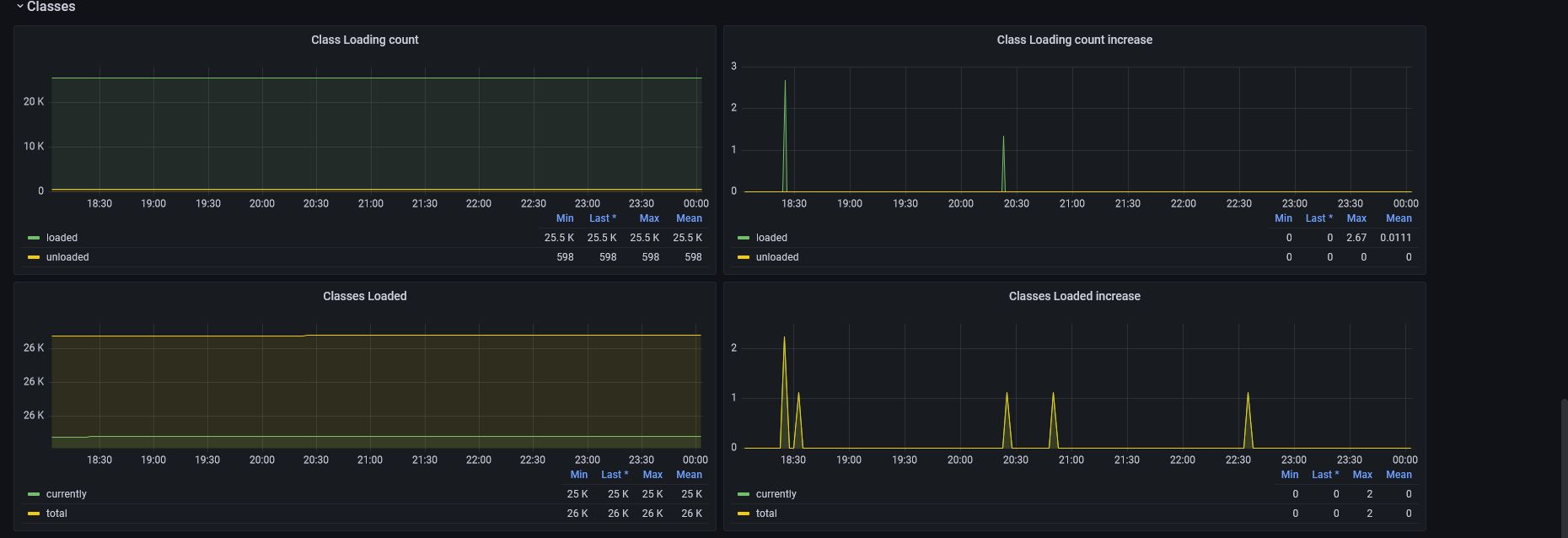

JMX Dashboard(Basic) screenshot 4

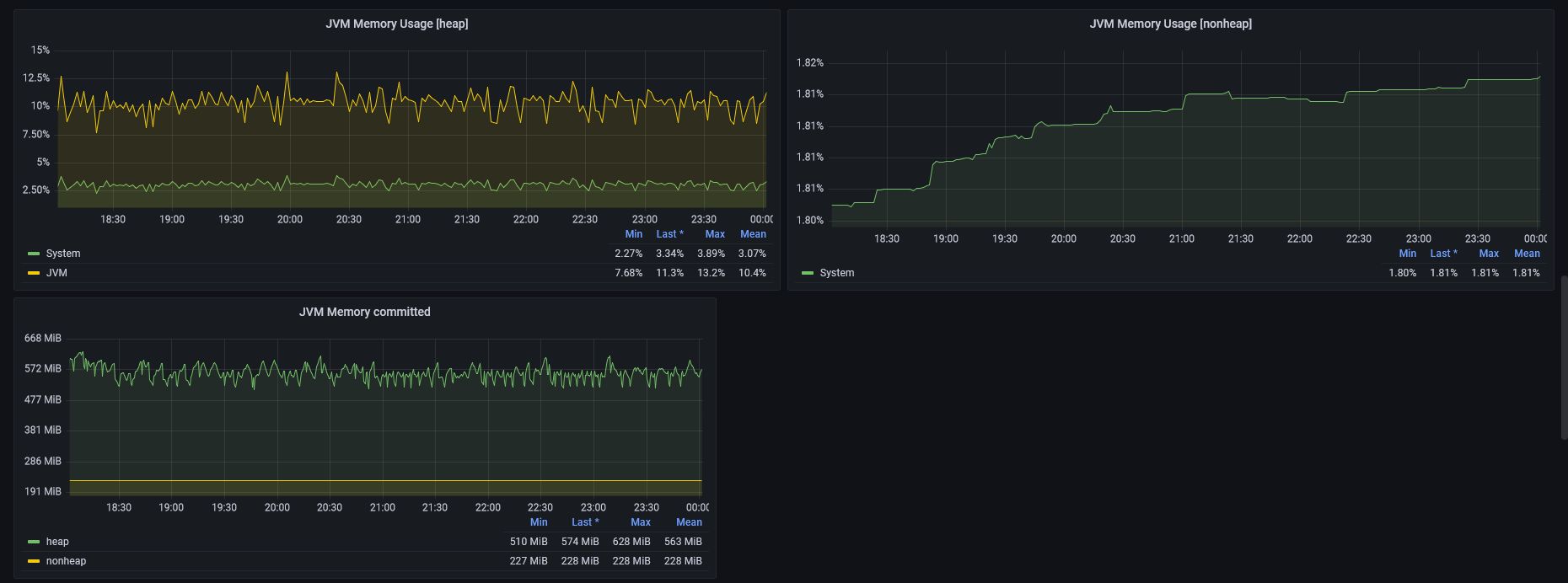

JMX Dashboard(Basic) screenshot 5

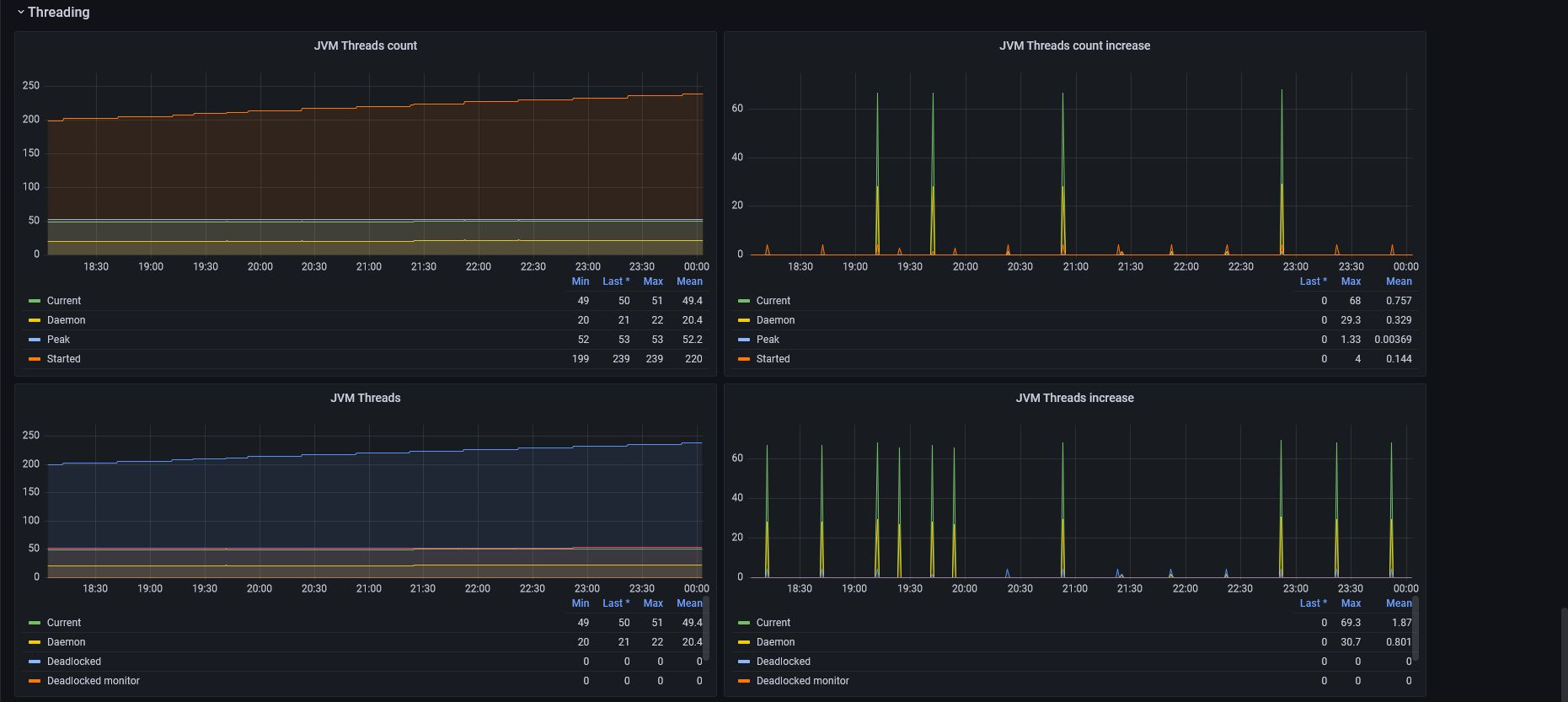

JMX Dashboard(Basic) screenshot 6

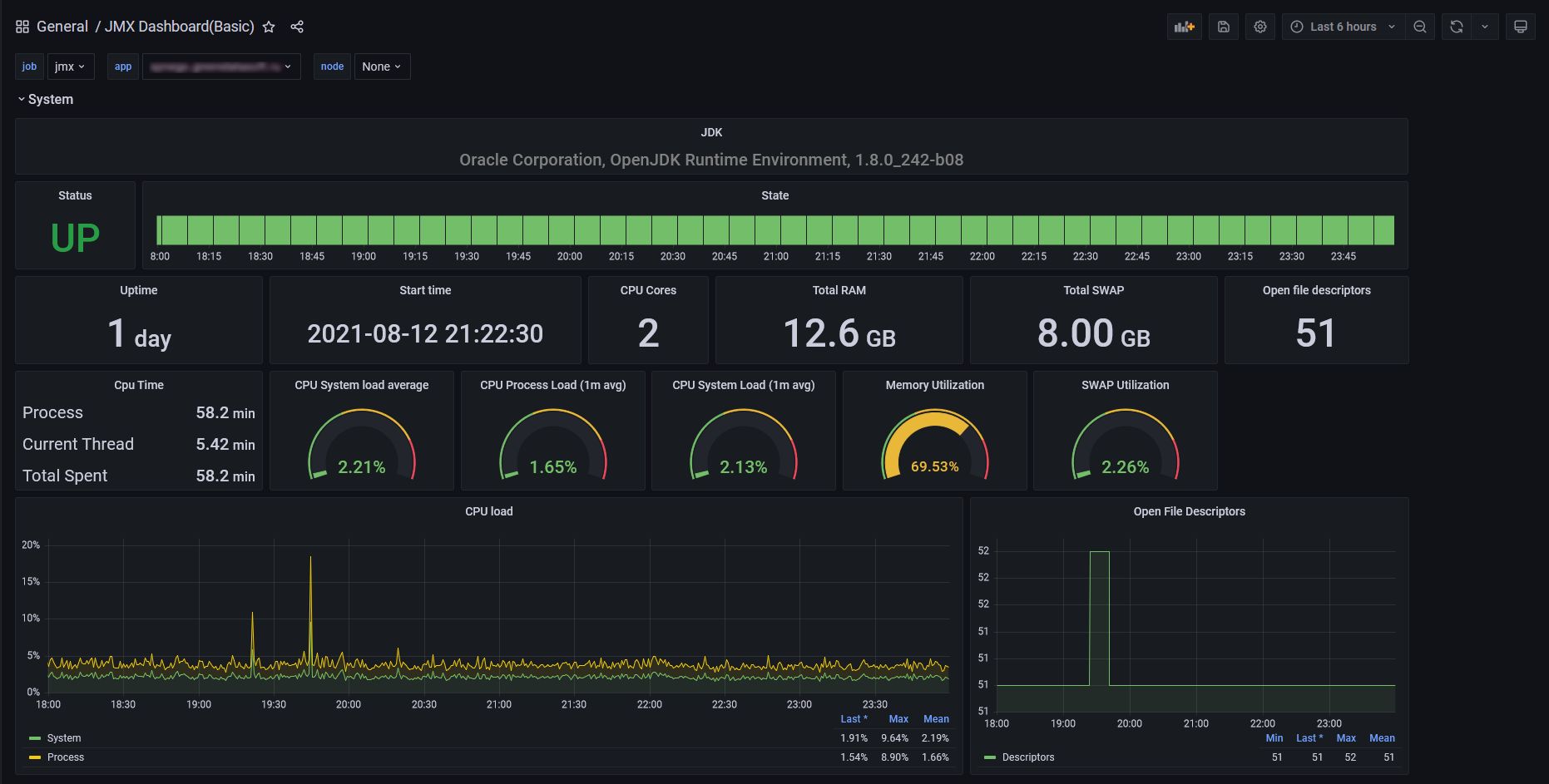

JMX Dashboard(Basic) screenshot 7

Description

Dashboard on basic metrics for prometheus/jmx_exporter.

Requirements:

  • The agent JMX variables lowercaseOutputName and lowercaseOutputLabelNames must be set to false or undefined.

Sample Prometheus configuration:

yaml
global:
  scrape_interval:     15s
  evaluation_interval: 15s

scrape_configs:
# Задание сбора данных самой службы
- job_name: 'prometheus'
  static_configs:
  - targets: ['localhost:9090']

# Задание для сбора метрик Java приложений
- job_name: 'jmx'
  metrics_path: /
  scheme: http
  static_configs:
  # Targets for multi-nodes apps
  - targets: ['srv-apps-001.domain.loc:19000']
    labels:
      instance: 'multi-node.domain.com[node-01.domain.loc]'
  - targets: ['srv-apps-002.domain.loc:19000']
    labels:
      instance: 'multi-node.domain.com[node-02.domain.loc]'
  # Target for apps witch one node:
  - targets: ['srv-apps-003.domain.loc:19000', 'srv-apps-004.domain.loc:19000']
  - targets: ['srv-apps-005.domain.loc:19000']
    labels:
      instance: 'one-node.domain.com'
