Netdata: Weblog Overview

Graphs and stats from Netdata's web_log module

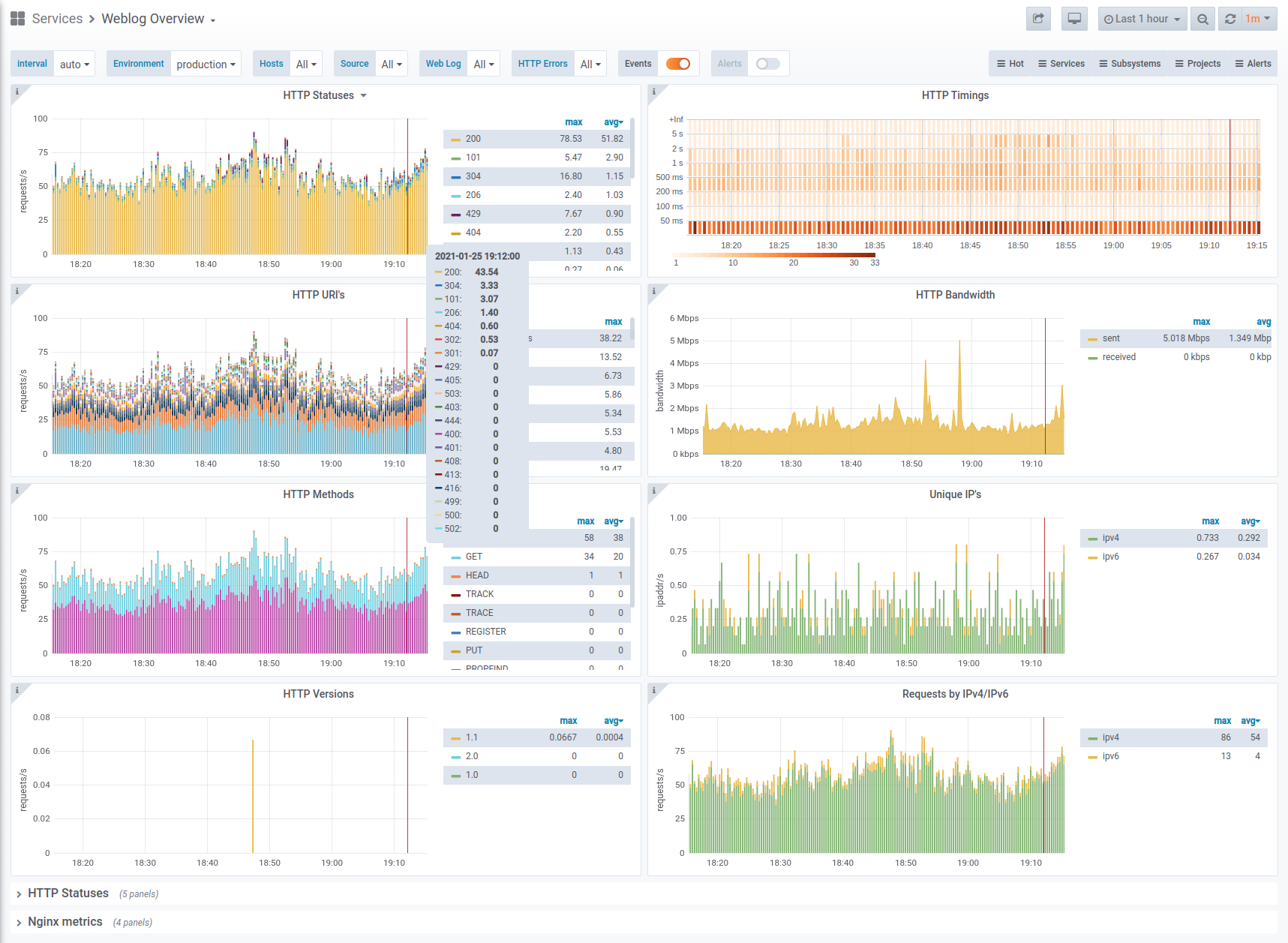

Netdata: Weblog Overview screenshot 1

About dashboard

A dashboard with an overview of metrics from weblog plugin:

  • HTTP statuses (error codes, sent to client)
  • HTTP Timings (requests grouped by response time)
  • HTTP URI (requests by common prefix)
  • HTTP Bandwidth (sent and received)
  • HTTP Methods (GET, POST, HEAD, etc)
  • HTTP Versions (1.x. 2.0)
  • Unique IP’s
  • Requests via IPv4 and IPv6

More dashboards for Netdata you can find here.

How to use

Netdata setup

Follow these instructions to get metrics from web server logs in Netdata.

Prometheus setup

Please note that you need Netdata as an exporter for metrics. Plus, these labels are mandatory:

  • job
  • env
  • instance
  • group
  • source

In your prometheus.yml it should look like this:

yaml
- job_name: netdata
  metrics_path: /api/v1/allmetrics?format=prometheus_all_hosts&source=raw
  relabel_configs:
  - source_labels: [__address__]
    regex: ^(.+)\.\w+:\d+
    target_label: instance
    action: replace
  static_configs:
  - targets: [netdata.hostname.here:19999]
    labels:
      env: production
      group: applications
      source: newproject

WARNING: Without these labels, this dashboard won’t be fully functioning.

License

GPL3

Author

OSSHelp Team, see https://oss.help
