MongoDB Atlas Overview

Dashboard

This dashboard allows you to fetch process, database, and disk logs from MongoDB Atlas API
Last updated: 2 years ago

Start with Grafana Cloud and the new FREE tier. Includes 10K series Prometheus or Graphite Metrics and 50gb Loki Logs

Downloads: 374

Reviews: 1

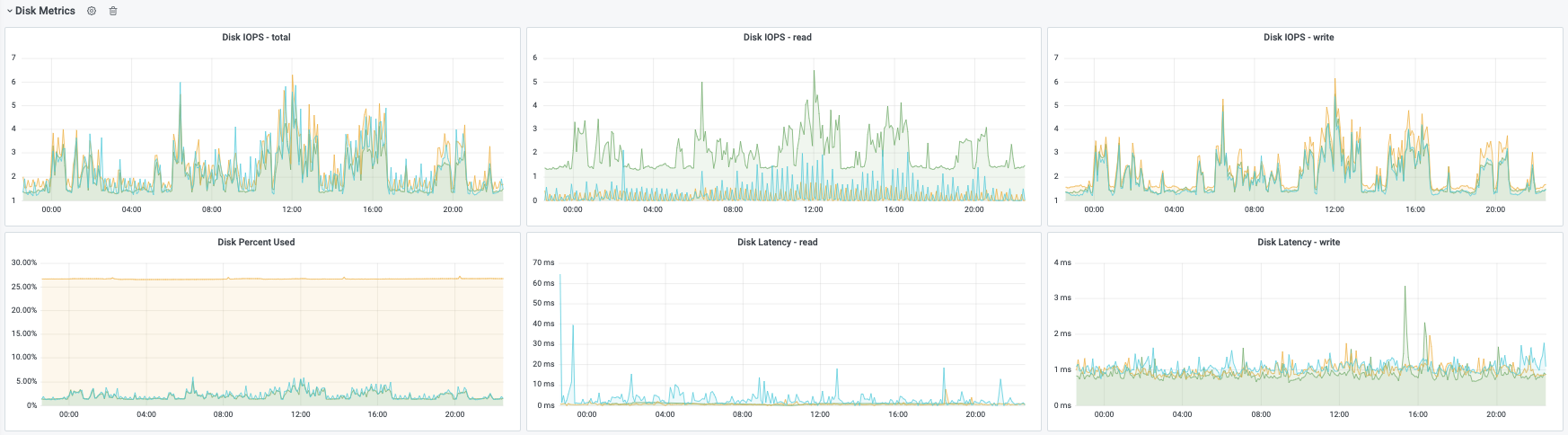

  • Screen Shot 2020-12-13 at 22.30.20.png
    Screen Shot 2020-12-13 at 22.30.20.png

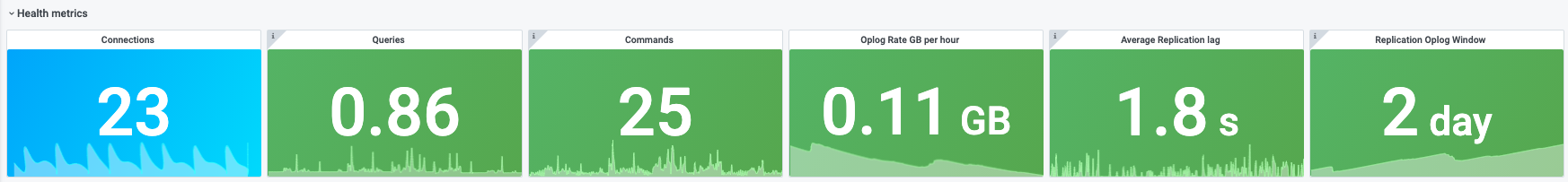

  • Screen Shot 2020-12-13 at 22.30.54.png
    Screen Shot 2020-12-13 at 22.30.54.png

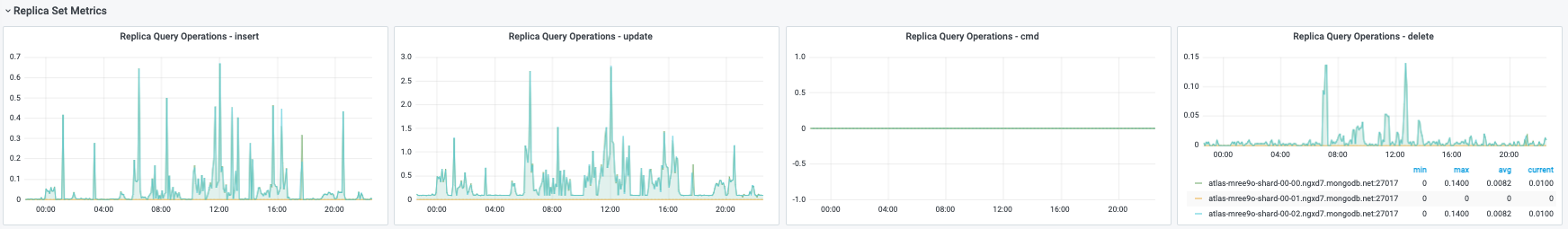

  • Screen Shot 2020-12-13 at 22.32.16.png
    Screen Shot 2020-12-13 at 22.32.16.png

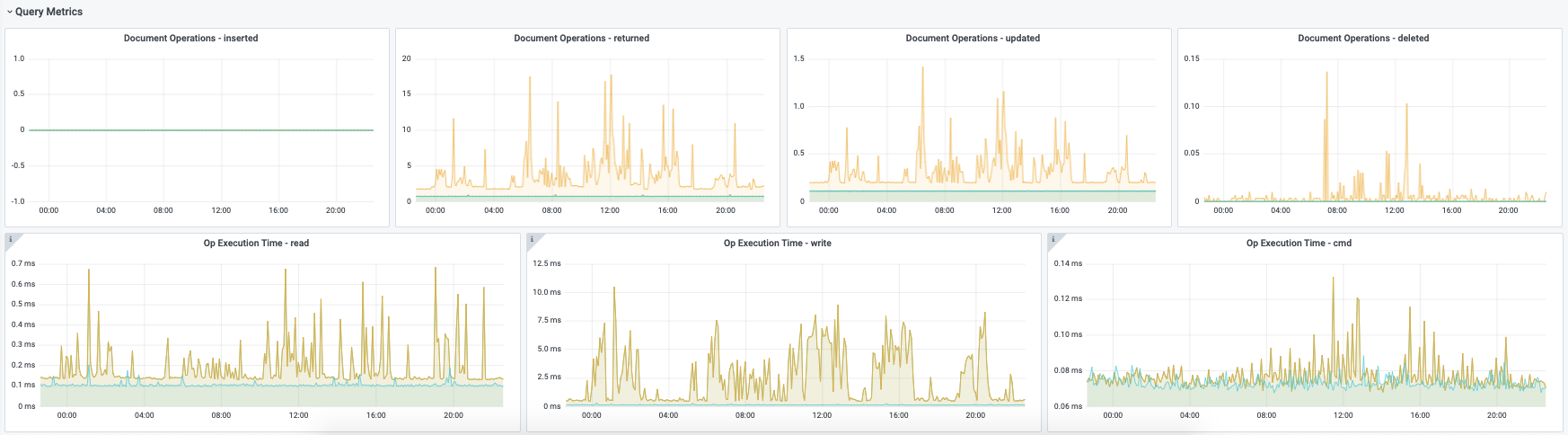

  • Screen Shot 2020-12-13 at 22.33.56.png
    Screen Shot 2020-12-13 at 22.33.56.png

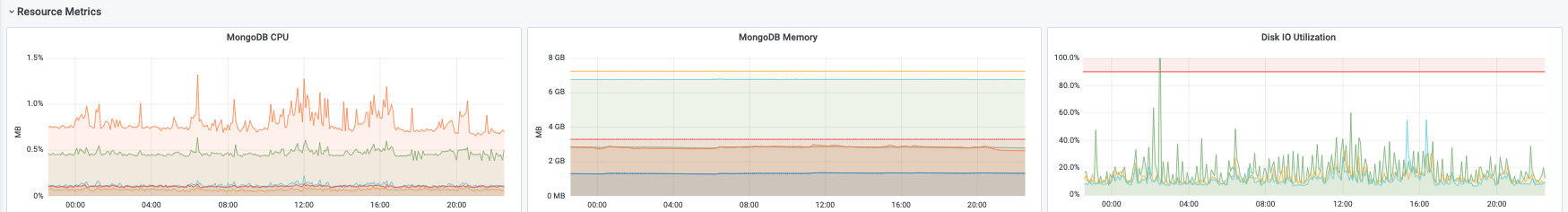

  • Screen Shot 2020-12-13 at 22.35.00.png
    Screen Shot 2020-12-13 at 22.35.00.png

MongoDB Atlas Dashboard

This dashboard uses Grafana MongoDB Atlas Logs Datasource and allows to fetch process, database, and disk logs from MongoDB Atlas API in your Grafana dashboard. All metrics available on MongoDB Atlas API are listed on Measurement Types

Importing

Since datasource doesn't support Grafana's template variable, as an attempt to solve this I'm using input values on pre-import to be able to "dynamic" allow customization.

IMPORTANT: This dashboard expects that cluster is a replica set with 3 nodes. If you have more replica sets or even less feel free to change the dashboard before import

Getting the information from MongoDB Atlas Cloud panel

There some information needed to build the dashboard that will need to get from the cloud panel to address the templating issue mentioned above. Also, some information will

Project ID

  • Login into the Mongo Atlas Cloud panel
  • Click on the Project name link
  • The URL will show the ID as follow https://cloud.mongodb.com/v2/[project-id]#clusters

Cluster ID

  • Login into the Mongo Atlas Cloud panel
  • Click on the Project name link
  • On the cluster page click on "Metrics" just below the cluster name
  • The URL will show the ID as follow: https://cloud.mongodb.com/v2/5d7bf6609ccf643cd8465d2c#host/replicaSet/[cluster-id]

MONGO_ID

  • Login into the Mongo Atlas Cloud panel
  • Click on the Project name link
  • On the cluster page click on the cluster name
  • Click on the link of the PRIMARY server name
  • At the top of the page you will see ORG > PROJECT > ATLAS-[MONGO_ID]-SHARD-0

DNS_PREFIX

  • Login into the Mongo Atlas Cloud panel
  • Click on the Project name link
  • On the cluster page click on the cluster name
  • Click on the link of the PRIMARY server name
  • At the top of the page you will see cluster-name-shard-00-01.[DNS_PREFIX].mongodb.net:27017
Get this dashboard:
13560
Dependencies:
  • Grafana 6.6.2

  • MongoDB Atlas Logs 1.0.0
