RARE/freeRouter - bridge MAC bytes

Display bridge byte metrics

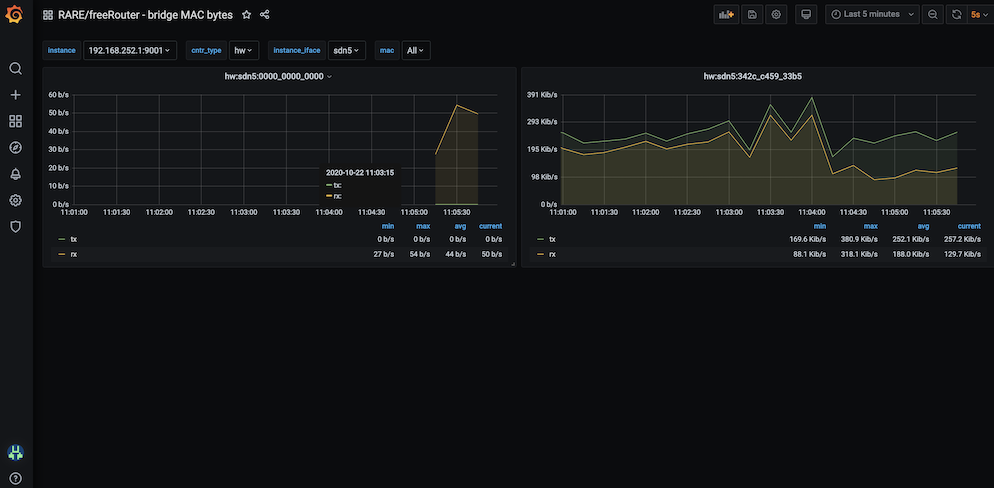

RARE/freeRouter - bridge MAC bytes screenshot 1

scope:local to freeRouter node

freeRouter Prometheus configuration: (copy & paste in freeRouter CLI)

  • Create hardware and software sensor
sensor bridge
path bridge/peer/peer
prefix freertr-bridge
key name bridge/peer
command sho bridge 1 | beg addr
prepend br_mac_
name 0 mac=
addname 1 * ifc=
replace \. _
column 3 name pack_tx
column 3 split + typ="sw" typ="hw"
column 4 name pack_rx
column 4 split + typ="sw" typ="hw"
column 5 name pack_dr
column 5 split + typ="sw" typ="hw"
column 6 name byte_tx
column 6 split + typ="sw" typ="hw"
column 7 name byte_rx
column 7 split + typ="sw" typ="hw"
column 8 name byte_dr
column 8 split + typ="sw" typ="hw"
.
exit
  • freeRtr server Prometheus agent configuration
server prometheus pr
 sensor bridge
 vrf <PROMETHEUS_VRF>
 exit
  • Prometheus server configuration (sample config with 2 nodes)
global:
  scrape_interval: 15s
  scrape_timeout: 10s
  evaluation_interval: 30s
alerting:
  alertmanagers:
  - static_configs:
    - targets: []
    scheme: http
    timeout: 10s
scrape_configs:
- job_name: router
  scrape_interval: 15s
  scrape_timeout: 10s
  metrics_path: /metrics
  scheme: http
  static_configs:
  - targets:
    - <prometheus_agent_ip_1>:9001
    labels:
      node_name: <prometheus_agent_1_node_name>
  - targets:
    - <prometheus_agent_ip_2>:9001
    labels:
      node_name: <prometheus_agent_2_node_name>
