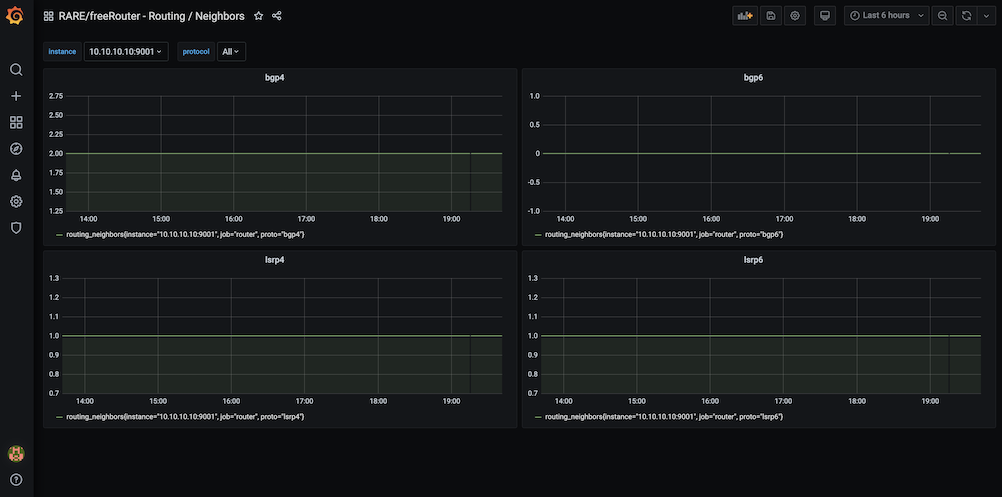

RARE/freeRouter - Routing / Neighbors
scope:local to freeRouter node
freeRouter Prometheus configuration: (copy & paste in freeRouter CLI)
metric routing4 command sho ipv4 protocol inet | beg computed
metric routing4 prepend routing_
metric routing4 name 0 proto=
metric routing4 addname 1 * id=
metric routing4 skip 2
metric routing4 column 2 name ifaces
metric routing4 column 3 name neighbors
metric routing4 column 4 name computed_unicast
metric routing4 column 5 name computed_multicast
metric routing4 column 6 name computed_flowspec
metric routing4 column 7 name computed_changed
metric routing4 column 9 name redisted_unicast
metric routing4 column 10 name redisted_multicast
metric routing4 column 11 name redisted_flowspec
metric routing4 column 12 name redisted_changed
metric routing6 command sho ipv6 protocol inet | beg computed
metric routing6 prepend routing_
metric routing6 name 0 proto=
metric routing6 addname 1 * id=
metric routing6 skip 2
metric routing6 column 2 name ifaces
metric routing6 column 3 name neighbors
metric routing6 column 4 name computed_unicast
metric routing6 column 5 name computed_multicast
metric routing6 column 6 name computed_flowspec
metric routing6 column 7 name computed_changed
metric routing6 column 9 name redisted_unicast
metric routing6 column 10 name redisted_multicast
metric routing6 column 11 name redisted_flowspec
metric routing6 column 12 name redisted_changedData source config
Collector type:
Collector plugins:
Collector config:
