Dashboard Covid19 to Zabbix. https://github.com/bernardolankheet/ZBX-GRA-COVID19 Homologated: Zabbix 4.2.8, 4.4.4 and 4.4.7 Grafana 6.6.2, 6.7.1 Required plugins: 1) grafana-worldmap-panel - https://grafana.com/grafana/plugins/grafana-worldmap-panel 2) alexanderzobnin-zabbix-app - https://grafana.com/grafana/plugins/alexanderzobnin-zabbix-app

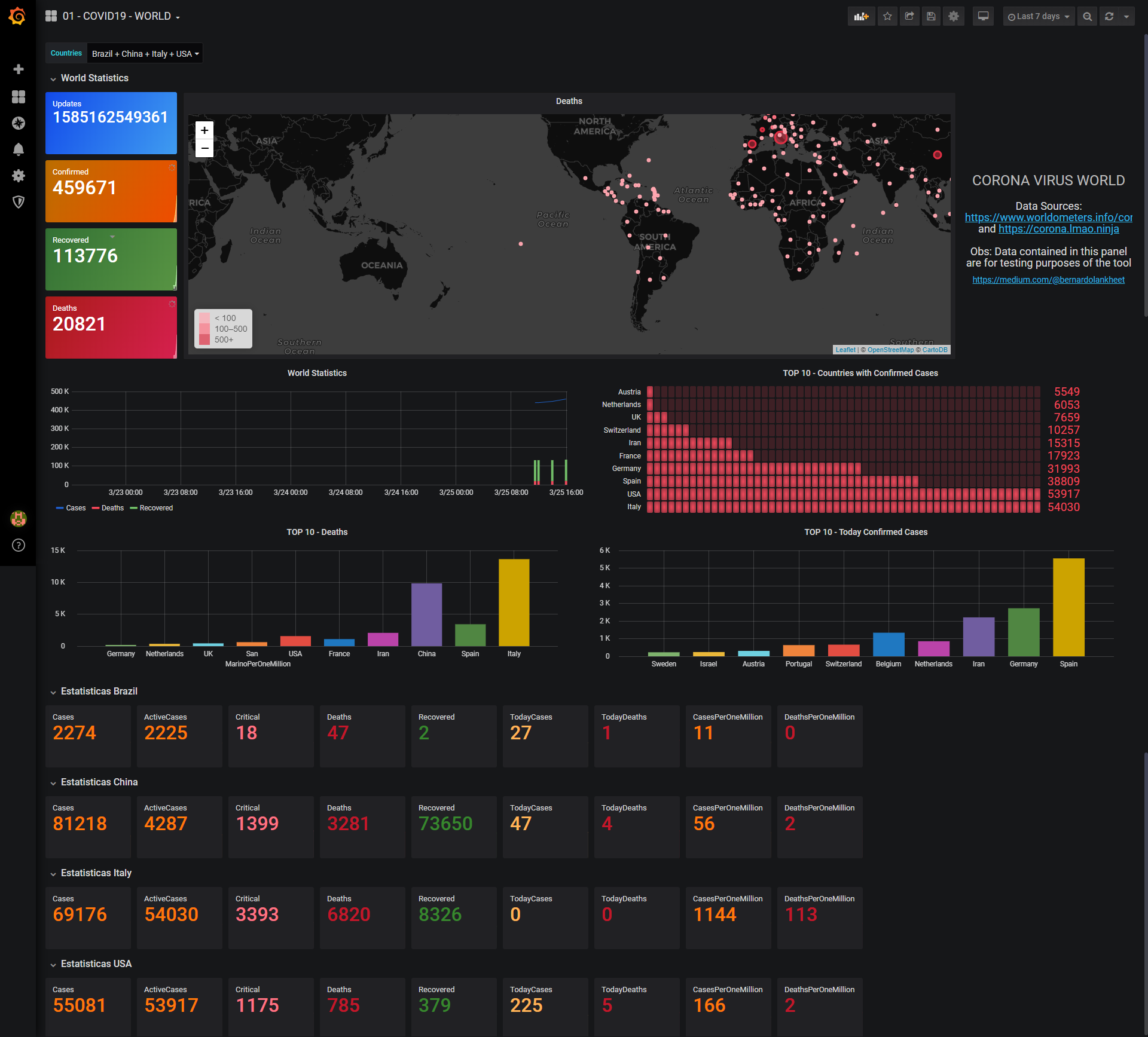

COVID19 screenshot 1

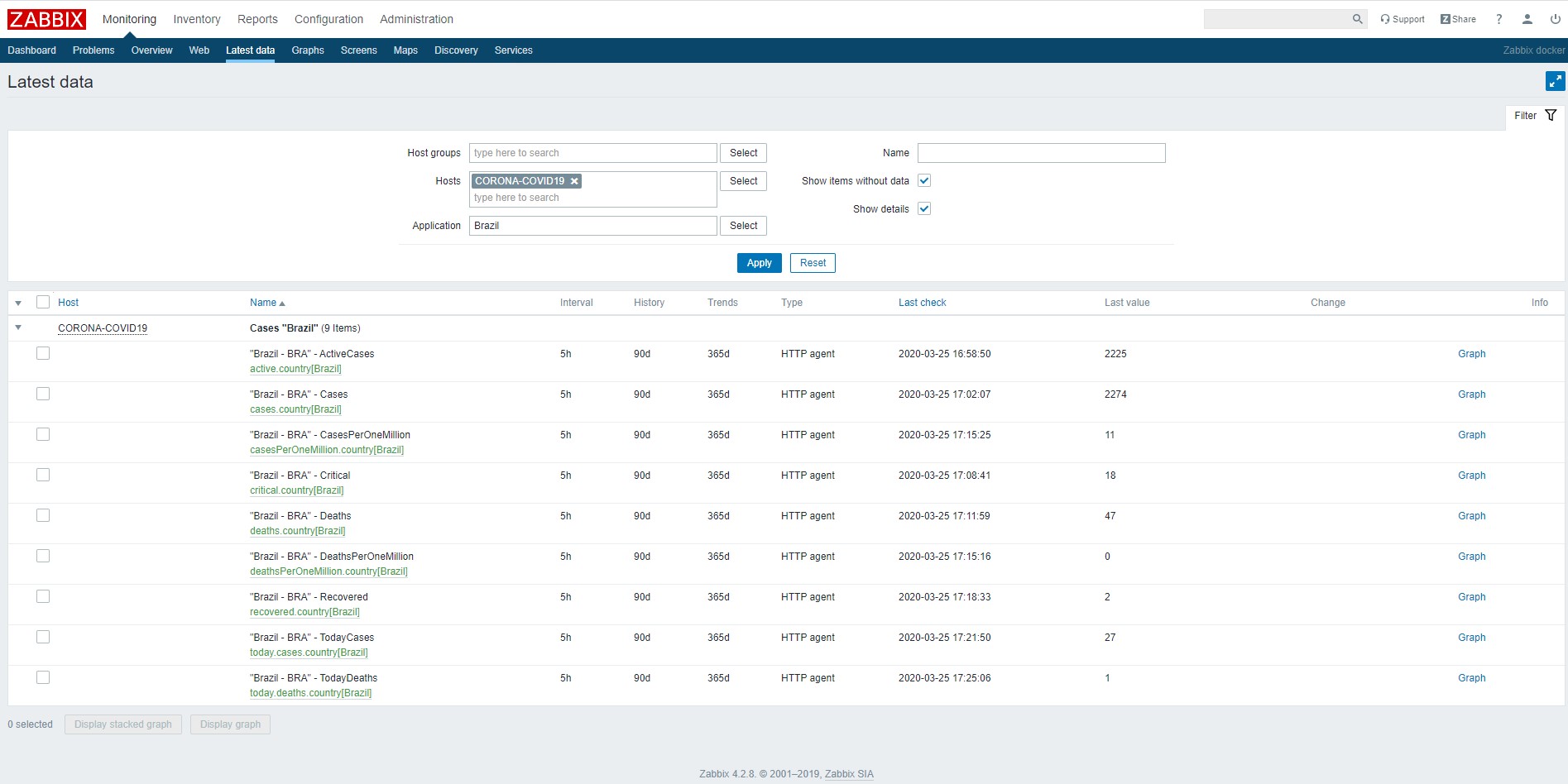

COVID19 screenshot 2

EN-US

Homologated:

Zabbix 4.2.8, 4.4.4 and 4.4.7

Grafana 6.6.2, 6.7.1

Required plugins:

  1. grafana-worldmap-panel - https://grafana.com/grafana/plugins/grafana-worldmap-panel
  2. alexanderzobnin-zabbix-app - https://grafana.com/grafana/plugins/alexanderzobnin-zabbix-app

Import Template_Module_HTTP_LLD_W_Corona into Zabbix

Create a host with the name “CORONA-COVID19”, you can use the local interface (127.0.0.1: 10050) and the Hostgroup use the name “CORONAVIRUS” and link the template to the host.

Wait for data collection, or use the function “Check now” in the item and in the LLD to speed up the collection

Imports the Dashboard in Grafana

When importing the Template into Garfana, select your Data Source.

Note: If the list does not appear in countries, check if the applications and items were generated in Zabbix.

PR-BR

Homologado:

Zabbix 4.2.8, 4.4.4 e 4.4.7

Grafana 6.6.2, 6.7.1

Plugins necessarios:

  1. grafana-worldmap-panel - https://grafana.com/grafana/plugins/grafana-worldmap-panel
  2. alexanderzobnin-zabbix-app - https://grafana.com/grafana/plugins/alexanderzobnin-zabbix-app

Importe o Template_Module_HTTP_LLD_W_Corona para o Zabbix

Crie um host com nome “CORONA-COVID19”, pode usar interface local (127.0.0.1: 10050) e o Hostgroup use o nome “CORONAVIRUS” e vincule o template ao host.

Aguarde coleta de dados, ou utilize a função “Check now” no item e no LLD para agilizar a coleta.

Importe a Dashboard no Grafana

Ao importar o Template para o Garfana, selecione seu Data Source.

Obs: Caso em paises não apareça a lista, verifique se as aplicações e itens foram gerados no Zabbix.
