K8s / Storage / Heketi

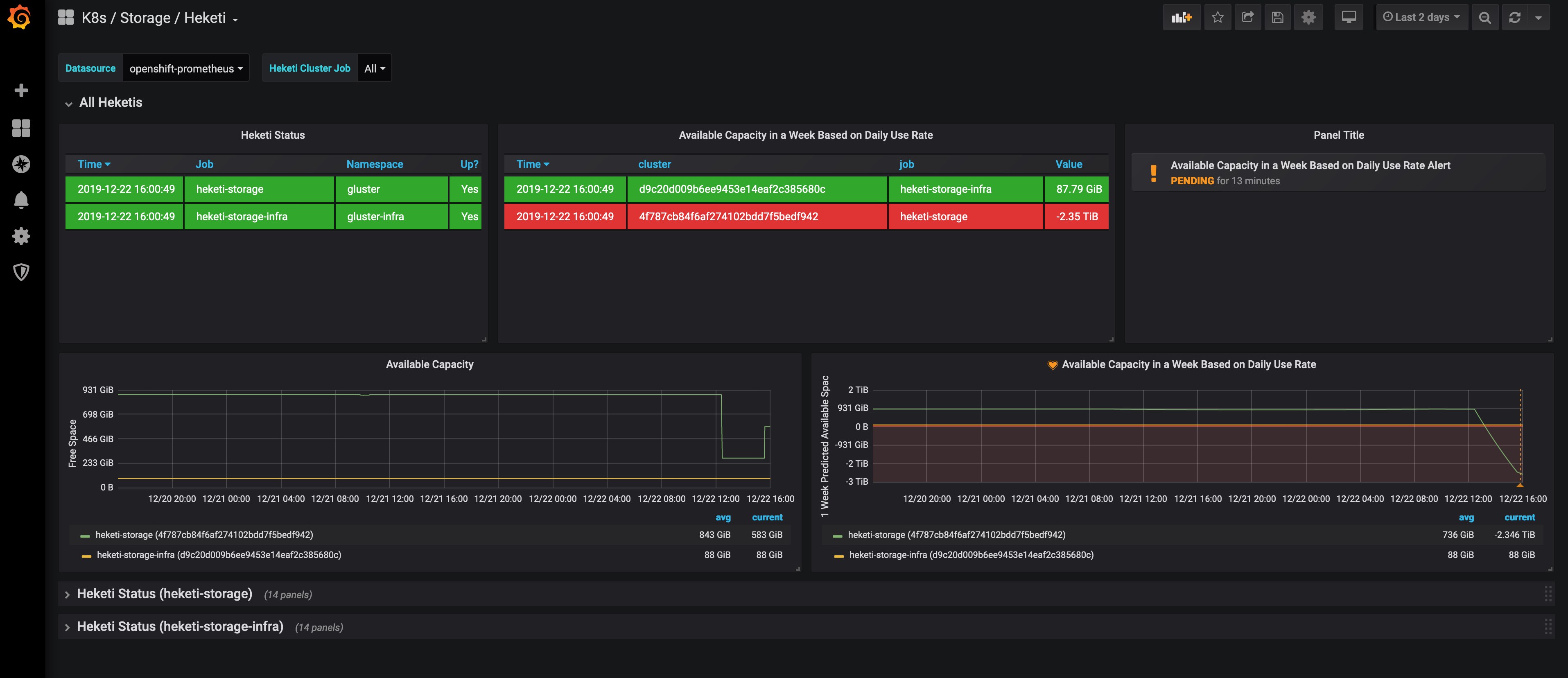

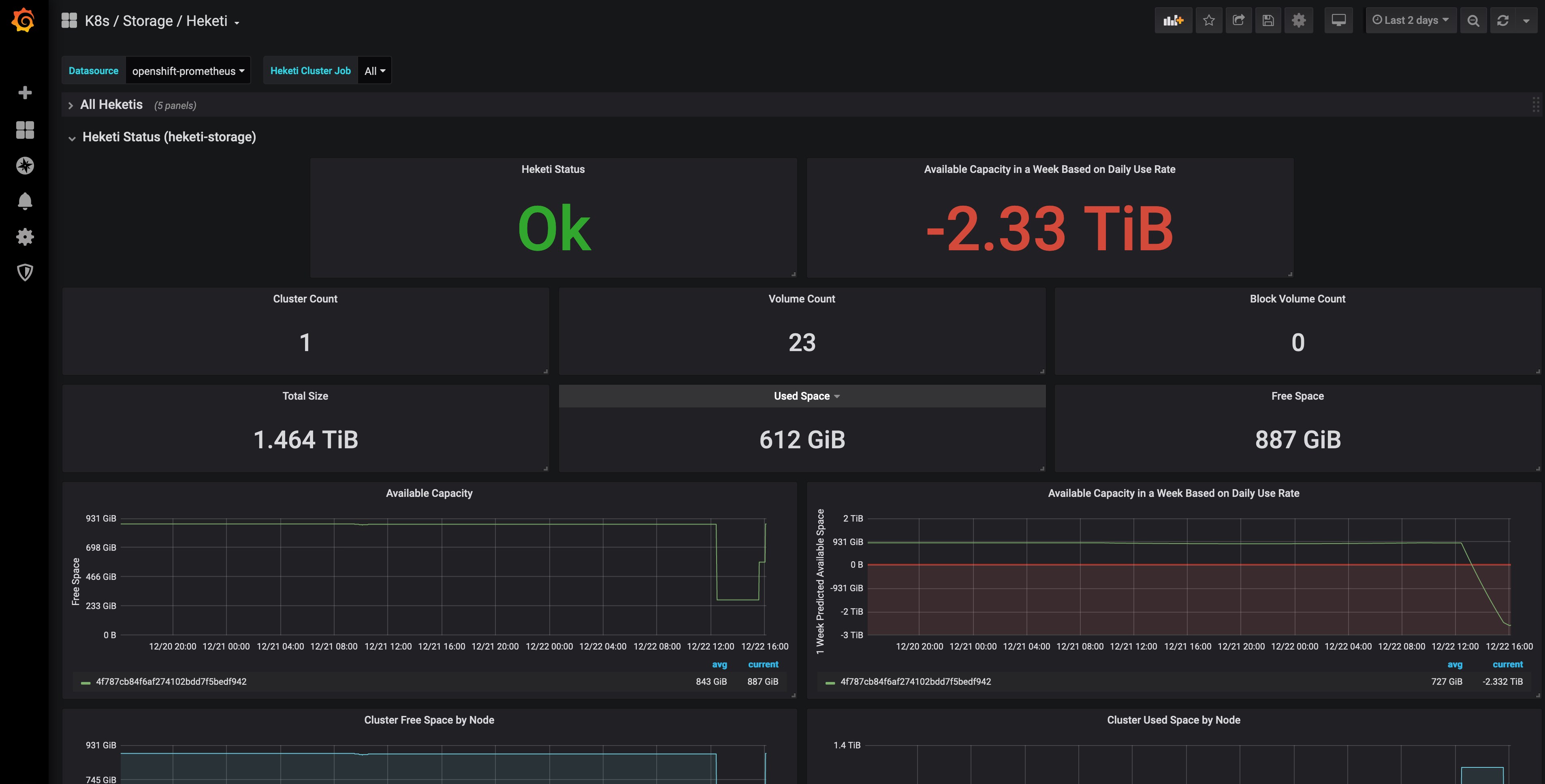

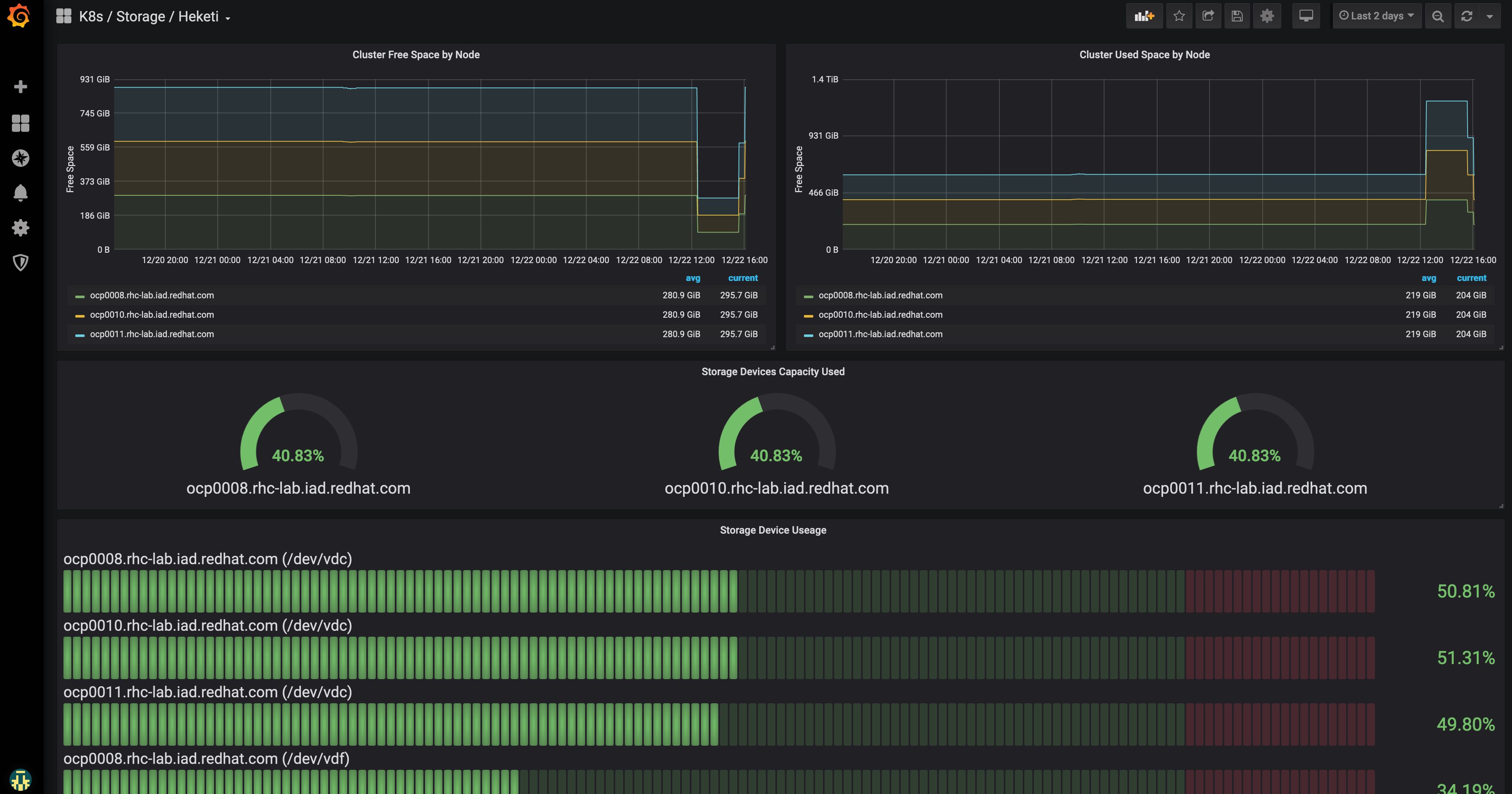

Dashboard of data exported from Heketi via Prometheus Service as deployed by OpenShift Container Storage (OCS) 3.x.

Overview

Dashboard of data exported from Heketi via Prometheus Service as deployed by OpenShift Container Storage (OCS) 3.x.

Expects

heketi_cluster_count
heketi_device_free_bytes
heketi_device_size_bytes
heketi_device_used_bytes
heketi_nodes_count
heketi_volumes_count
heketi_block_volumes_count
heketi_up

Published Grafana Alerts

Available Capacity in a Week Based on Daily Use Rate Alert

Documentation

Set up Prometheus on OpenShift - Red Hat OpenShiftr Container Platform 3.11: Configuring Clusters: Prometheus Cluster Monitoring
Set up OCS 3.11 to export Heketi data to Prometheus - Red Hat OpenShift Container Storage 3.11: Operations Guide: 10.1. Available Metrics for File Storage and Block Storage.

Tested With

OpenShift Container Platform (OCP)
- v3.11.154
OpenShift Container Storage (OCS)
- 3.11
Grafana
- v6.5.2
Prometheus
- v2.3.2
