LDAP Monitor

Dashboard

Monitor your 389 Directory Server
Last updated: 2 months ago

Start with Grafana Cloud and the new FREE tier. Includes 10K series Prometheus or Graphite Metrics and 50gb Loki Logs

Downloads: 166

Reviews: 0

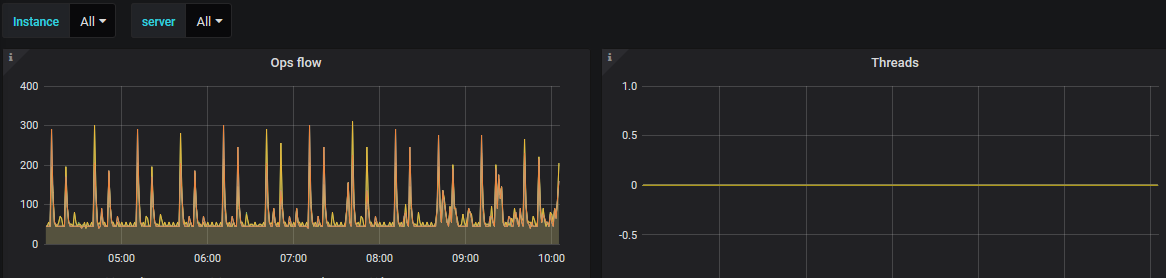

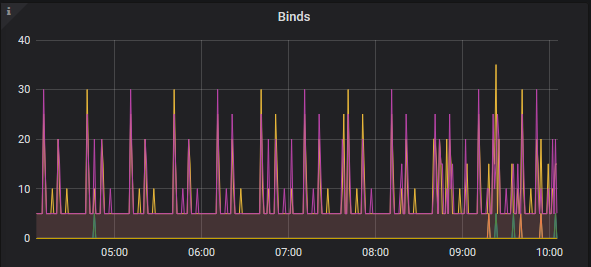

  • binds.PNG
  • vars.PNG

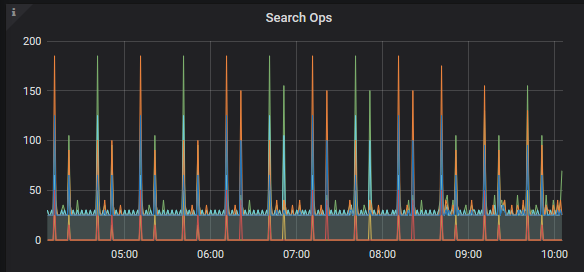

  • searchop.PNG

You want to monitor the 389 Directory Server. Please download and compile the ds389 input plugin, now in beta version at Github.

  • Create your telegraf config file, with many LDAP instances as your need.
  • Test the plugin to ensure you are collecting the data as explained in the plugin README
  • Then install this dashboard and enjoy!

PS: the alert section still has to improve

The plugin is still waiting to be added to Telegraf. Meanwhile you can add it as external here

Collector Configuration Details

# 389 Directory Server cn=Monitor plugin
[[inputs.ds389]]
  host = "localhost"
  port = 389

  # ldaps, starttls, or no encryption. default is an empty string, disabling all encryption.
  # note that port will likely need to be changed to 636 for ldaps
  # valid options: "" | "starttls" | "ldaps"
  #protocol = ""

  # skip peer certificate verification. Default is false.
  insecure_skip_verify = false

  # Path to PEM-encoded Root certificate to use to verify server certificate
  tls_ca = "/etc/ssl/certs.pem"

  # dn/password to bind with. If bind_dn is empty, an anonymous bind is performed.
  bindDn = ""
  bindPassword = ""

  ## Gather dbname to monitor
  # Comma separated list of db filename
  # dbtomonitor = ["exampleDB"]
  # If true, alldbmonitor monitors all db and overrides "dbtomonitor".
  alldbmonitor = false

  # Connections status monitor
  status = false

  [inputs.ds389.tags]
    instance = "instance-name"
Get this dashboard:
10587
Dependencies:
