Grafana Mimir Overview networking dashboard
The Overview networking dashboard shows receive and transmit bandwidth, in-flight requests, and TCP connections. The dashboard groups Mimir components into “Writes”, “Reads” and “Backend”.
This dashboard requires additional resources metrics.
Example

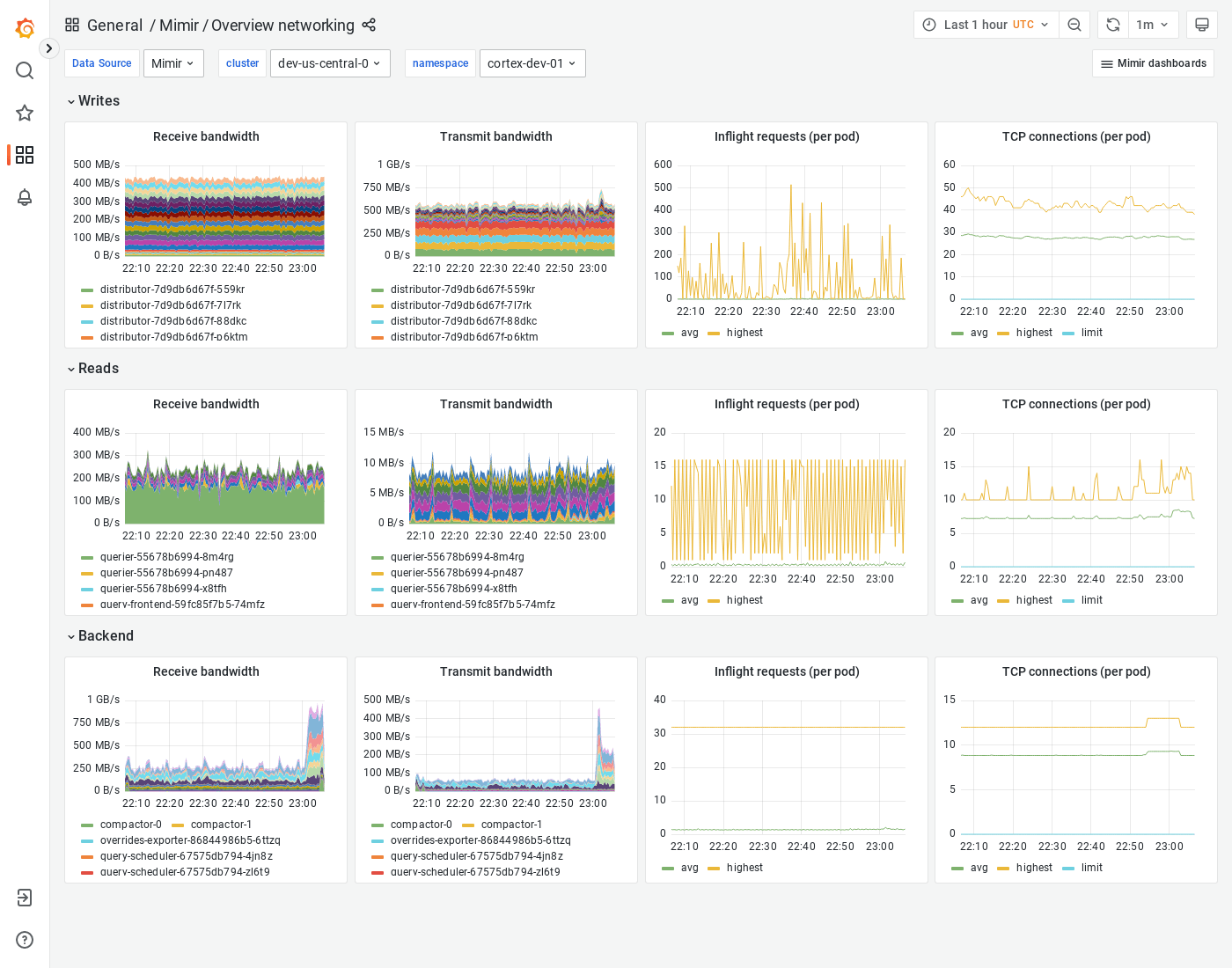

The following example shows a Overview networking dashboard from a demo cluster.
