Grafana Mimir Writes networking dashboard

The Writes networking dashboard shows receive/transmit bandwidth, inflight requests, and TCP connections. The dashboard isolates each service on the write path into its own section and displays the order in which a write request flows.

This dashboard requires additional resources metrics.

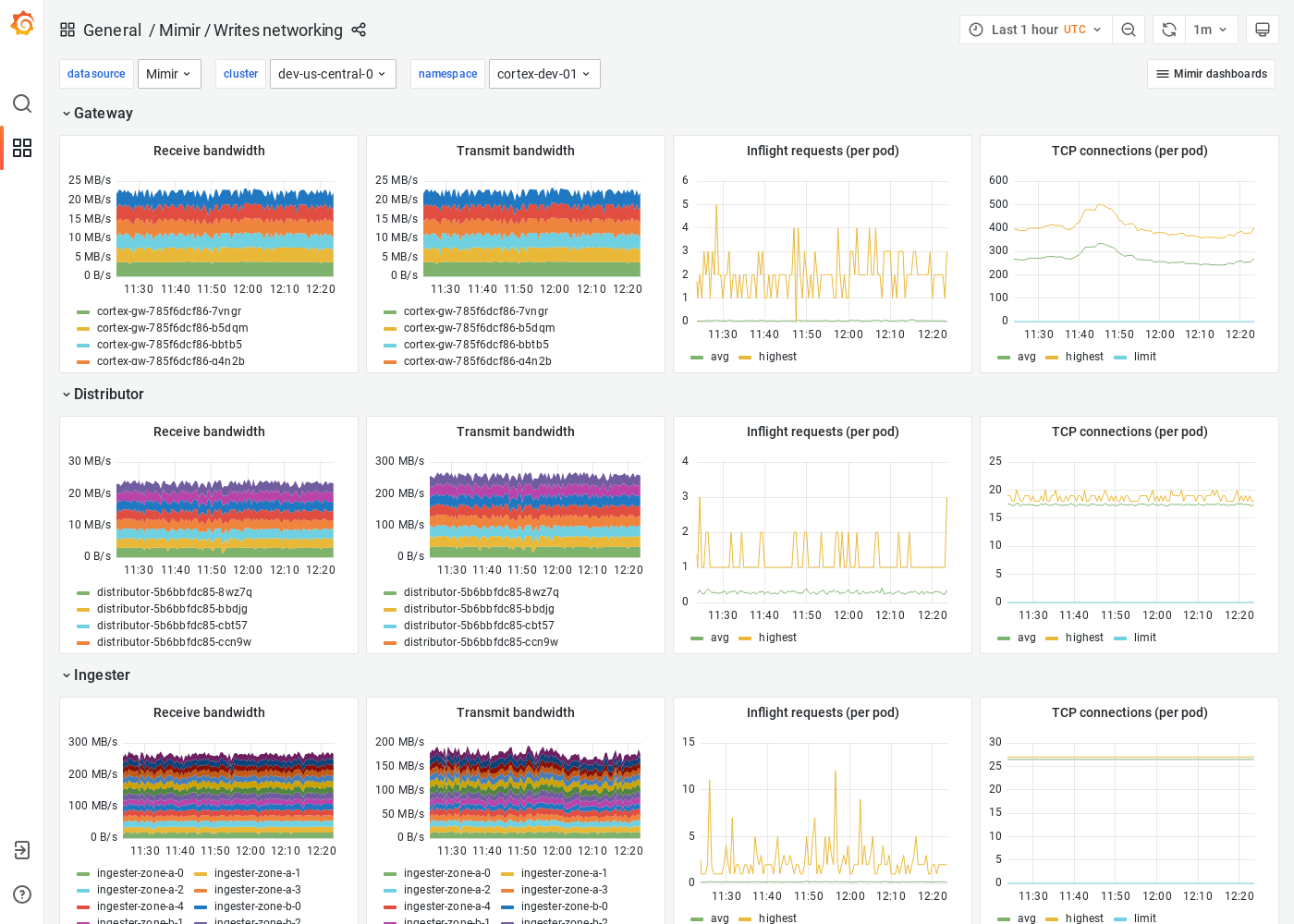

The following example shows a Writes networking dashboard from a demo cluster.

Grafana Mimir writes networking dashboard
