Grafana Mimir Reads networking dashboard

The Reads networking dashboard shows receive and transmit bandwidth, in-flight requests, and TCP connections. The dashboard isolates each service on the read path into its own section and displays the order in which a read request flows.

This dashboard requires additional resources metrics.

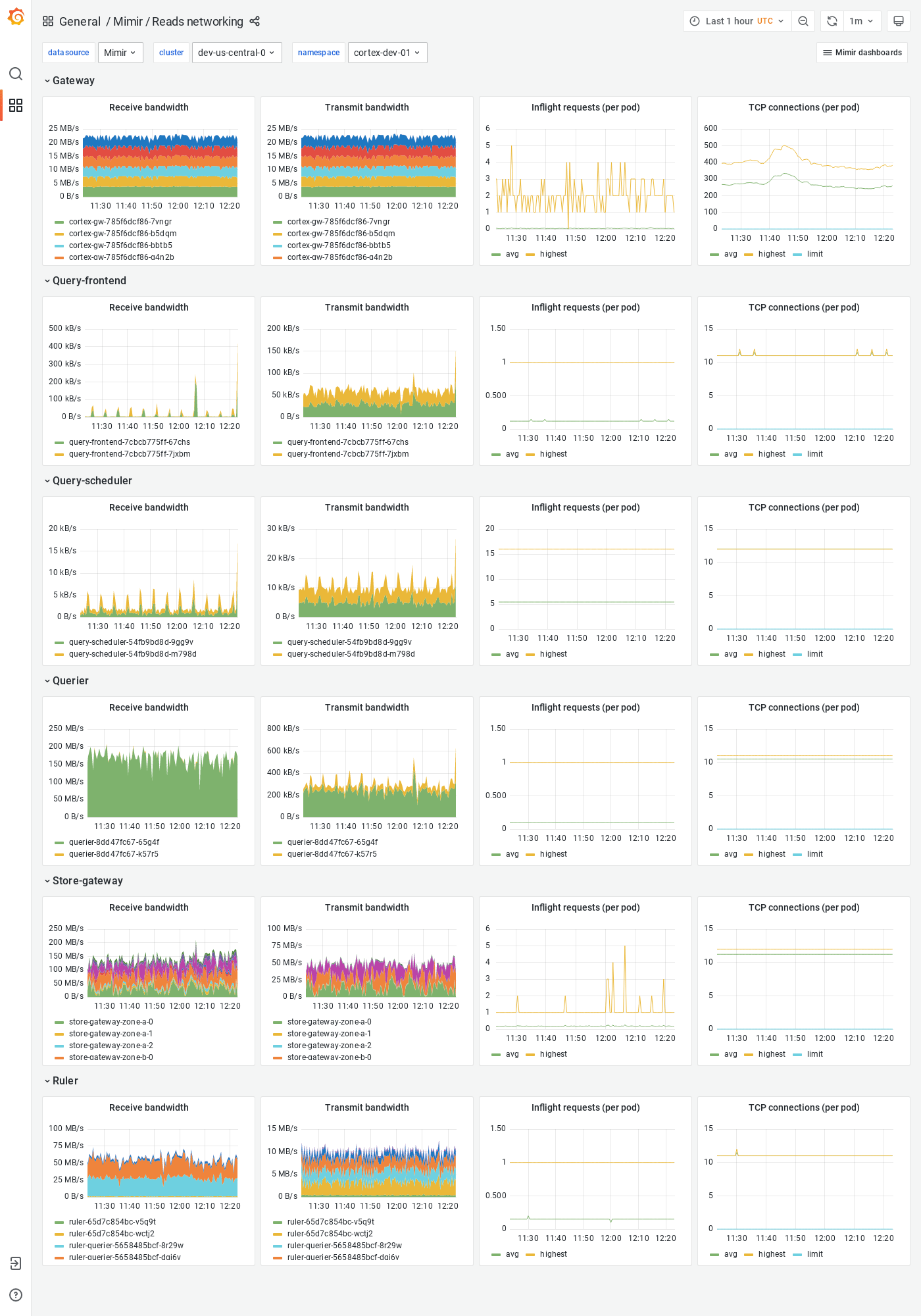

The following example shows a Reads networking dashboard from a demo cluster.

Grafana Mimir reads networking dashboard
