Status history

Status histories show periodic states over time. Each field or series is rendered as a horizontal row. Boxes are rendered and centered around each value.

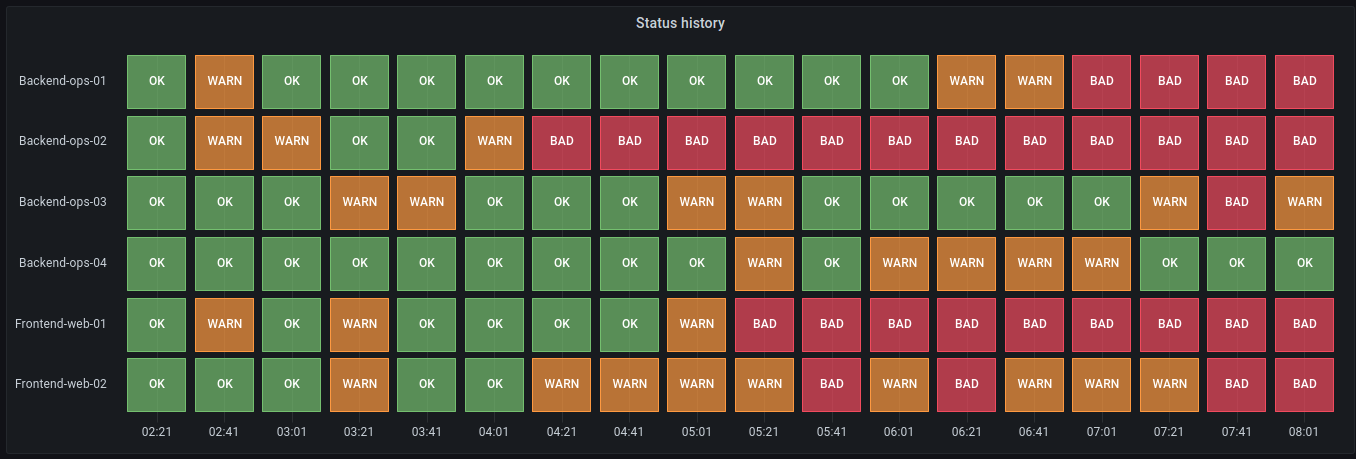

Status history example
Status history example

Supported data

A status history works with string, boolean and numerical fields or time series. A time field is required. You can use value mappings to color strings or assign text values to numerical ranges.

Display options

Use these options to refine the visualization.

Show values

Controls whether values are rendered inside the value boxes. Auto will render values if there is sufficient space.

Column width

Controls the width of boxes. 1 = maximum space and 0 = minimum space.

Line width

Controls line width of state regions.

Fill opacity

Controls the opacity of state regions.

Value mappings

To assign colors to boolean or string values, use the Value mappings.

Value mappings side editor
Value mappings side editor

Time series data with thresholds

The visualization can be used with time series data as well. In this case, the thresholds are used to color the boxes. You can also use gradient color schemes to color values.

state timeline with time series
state timeline with time series

Legend options

When the legend option is enabled it can show either the value mappings or the threshold brackets. To show the value mappings in the legend, it’s important that the Color scheme as referenced in Color scheme is set to Single color or Classic palette. To see the threshold brackets in the legend set the Color scheme to From thresholds.

Legend mode

Use these settings to define how the legend appears in your visualization. For more information about the legend, refer to Configure a legend.

  • List - Displays the legend as a list. This is a default display mode of the legend.
  • Table - Displays the legend as a table.
  • Hidden - Hides the legend.

Legend placement

Choose where to display the legend.

  • Bottom - Below the graph.
  • Right - To the right of the graph.

Legend values

Choose which of the standard calculations to show in the legend. You can have more than one.
