State timelines show discrete state changes over time. Each field or series is rendered as its unique horizontal band. State regions can either be rendered with or without values. This visualization works well with string or boolean states but can also be used with time series. When used with time series, the thresholds are used to turn the numerical values into discrete state regions.
State timeline options
Use these options to refine the visualization.
Merge equal consecutive values
Controls whether Grafana merges identical values if they are next to each other.
Controls whether values are rendered inside the state regions. Auto will render values if there is sufficient space.
Controls value alignment inside state regions.
Controls how much space between rows there are. 1 = no space = 0.5 = 50% space.
Controls line width of state regions.
Controls the opacity of state regions.

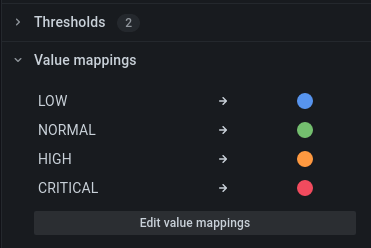

To assign colors to boolean or string values, you can use Value mappings.

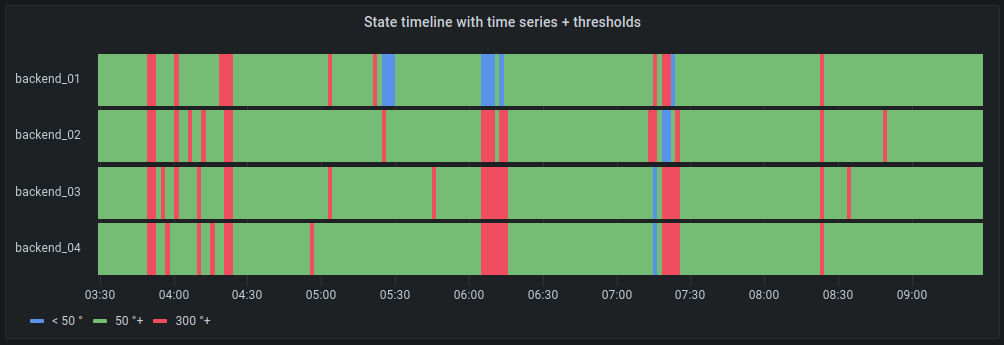

Time series data with thresholds
The visualization can be used with time series data as well. In this case, the thresholds are used to turn the time series into discrete colored state regions.
When the legend option is enabled it can show either the value mappings or the threshold brackets. To show the value mappings in the legend, it’s important that the
Color scheme as referenced in Color scheme is set to
Single color or
Classic palette. To see the threshold brackets in the legend set the
Color scheme to
Use these settings to define how the legend appears in your visualization. For more information about the legend, refer to Configure a legend.
- List - Displays the legend as a list. This is a default display mode of the legend.
- Table - Displays the legend as a table.
- Hidden - Hides the legend.
Choose where to display the legend.
- Bottom - Below the graph.
- Right - To the right of the graph.
Choose which of the standard calculations to show in the legend. You can have more than one.
