Important: This documentation is about an older version. It's relevant only to the release noted, many of the features and functions have been updated or replaced. Please view the current version.

Enterprise Open source

Alert notifications

When an alert changes state, it sends out notifications. Each alert rule can have multiple notifications. In order to add a notification to an alert rule you first need to add and configure a notification channel (can be email, PagerDuty, or other integration).

This is done from the Notification channels page.

Note: Alerting is only available in Grafana v4.0 and above.

Add a notification channel

  1. In the Grafana side bar, hover your cursor over the Alerting (bell) icon and then click Notification channels.
  2. Click Add channel.
  3. Fill out the fields or select options described below.

New notification channel fields

Default (send on all alerts)

  • Name - Enter a name for this channel. It will be displayed when users add notifications to alert rules.
  • Type - Select the channel type. Refer to the List of supported notifiers for details.
  • Default (send on all alerts) - When selected, this option sends a notification on this channel for all alert rules.
  • Include Image - See Enable images in notifications for details.
  • Disable Resolve Message - When selected, this option disables the resolve message [OK] that is sent when the alerting state returns to false.
  • Send reminders - When this option is checked additional notifications (reminders) will be sent for triggered alerts. You can specify how often reminders should be sent using number of seconds (s), minutes (m) or hours (h), for example 30s, 3m, 5m or 1h.

Important: Alert reminders are sent after rules are evaluated. Therefore a reminder can never be sent more frequently than a configured alert rule evaluation interval.

These examples show how often and when reminders are sent for a triggered alert.

Alert rule evaluation intervalSend reminders everyReminder sent every (after last alert notification)
30s15s~30 seconds
1m5m~5 minutes
5m15m~15 minutes
6m20m~24 minutes
1h15m~1 hour
1h2h~2 hours

List of supported notifiers

NameTypeSupports imagesSupport alert rule tags
DingDingdingdingyes, external onlyno
Google Hangouts Chatgooglechatyes, external onlyno
Hipchathipchatyes, external onlyno
Kafkakafkayes, external onlyno
Linelineyes, external onlyno
Microsoft Teamsteamsyes, external onlyno
OpsGenieopsgenieyes, external onlyyes
Pagerdutypagerdutyyes, external onlyyes
Prometheus Alertmanagerprometheus-alertmanageryes, external onlyyes
Sensusensuyes, external onlyno
Threemathreemayes, external onlyno
VictorOpsvictoropsyes, external onlyno
Webhookwebhookyes, external onlyyes


To enable email notifications you have to setup SMTP settings in the Grafana config. Email notifications will upload an image of the alert graph to an external image destination if available or fallback to attaching the image to the email. Be aware that if you use the local image storage email servers and clients might not be able to access the image.

Single emailSend a single email to all recipients. Disabled per default.
AddressesEmail addresses to recipients. You can enter multiple email addresses using a “;” separator.

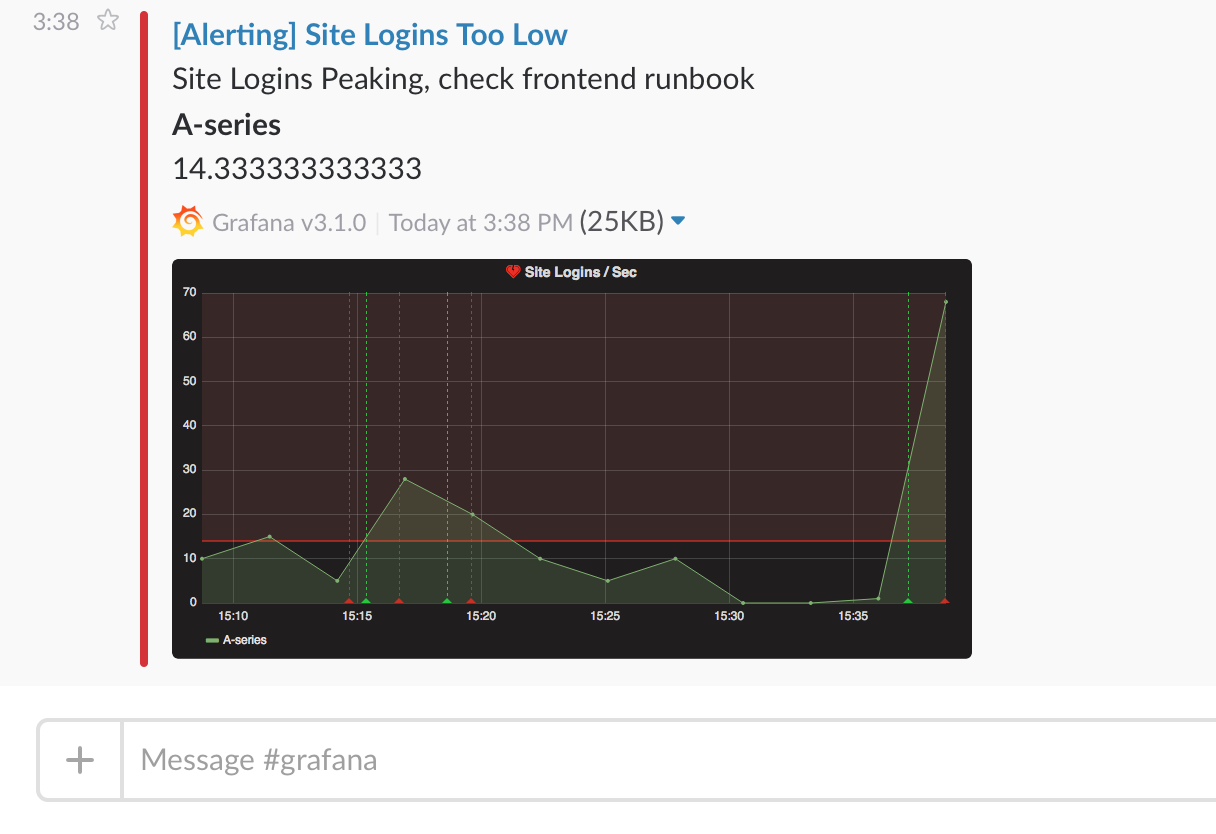

Alerting Slack Notification
Alerting Slack Notification

To set up Slack, you need to configure an incoming Slack webhook URL. You can follow Sending messages using Incoming Webhooks on how to do that. If you want to include screenshots of the firing alerts in the Slack messages you have to configure either the external image destination in Grafana or a bot integration via Slack Apps. Follow Slack’s guide to set up a bot integration and use the token provided, which starts with “xoxb”.

UrlSlack incoming webhook URL, or eventually the chat.postMessage Slack API endpoint.
UsernameSet the username for the bot’s message.
RecipientAllows you to override the Slack recipient. You must either provide a channel Slack ID, a user Slack ID, a username reference (@<user>, all lowercase, no whitespace), or a channel reference (#<channel>, all lowercase, no whitespace). If you use the chat.postMessage Slack API endpoint, this is required.
Icon emojiProvide an emoji to use as the icon for the bot’s message. Ex :smile:
Icon URLProvide a URL to an image to use as the icon for the bot’s message.
Mention UsersOptionally mention one or more users in the Slack notification sent by Grafana. You have to refer to users, comma-separated, via their corresponding Slack IDs (which you can find by clicking the overflow button on each user’s Slack profile).
Mention GroupsOptionally mention one or more groups in the Slack notification sent by Grafana. You have to refer to groups, comma-separated, via their corresponding Slack IDs (which you can get from each group’s Slack profile URL).
Mention ChannelOptionally mention either all channel members or just active ones.
TokenIf provided, Grafana will upload the generated image via Slack’s file.upload API method, not the external image destination. If you use the chat.postMessage Slack API endpoint, this is required.

If you are using the token for a slack bot, then you have to invite the bot to the channel you want to send notifications and add the channel to the recipient field.


To set up PagerDuty, all you have to do is to provide an integration key.

Integration KeyIntegration key for PagerDuty.
SeverityLevel for dynamic notifications, default is critical (1)
Auto resolve incidentsResolve incidents in PagerDuty once the alert goes back to ok
Message in detailsRemoves the Alert message from the PD summary field and puts it into custom details instead (2)

Note: The tags Severity, Class, Group, and Component have special meaning in the Pagerduty Common Event Format - PD-CEF. If an alert panel defines these tag keys, then they are transposed to the root of the event sent to Pagerduty. This means they will be available within the Pagerduty UI and Filtering tools. A Severity tag set on an alert overrides the global Severity set on the notification channel if it’s a valid level.

Using Message In Details will change the structure of the custom_details field in the PagerDuty Event. This might break custom event rules in your PagerDuty rules if you rely on the fields in payload.custom_details. Move any existing rules using custom_details.myMetric to custom_details.queries.myMetric. This behavior will become the default in a future version of Grafana.


The webhook notification is a simple way to send information about a state change over HTTP to a custom endpoint. Using this notification you could integrate Grafana into a system of your choosing.

Example json body:

  "message":"Notification Message",
  "ruleName":"Panel Title alert",
    "tag name":"tag value"
  "title":"[Alerting] Panel Title alert"
  • state - The possible values for alert state are: ok, paused, alerting, pending, no_data.


Instructions in Chinese.

In DingTalk PC Client:

  1. Click “more” icon on upper right of the panel.

  2. Click “Robot Manage” item in the pop menu, there will be a new panel call “Robot Manage”.

  3. In the “Robot Manage” panel, select “customized: customized robot with Webhook”.

  4. In the next new panel named “robot detail”, click “Add” button.

  5. In “Add Robot” panel, input a nickname for the robot and select a “message group” which the robot will join in. click “next”.

  6. There will be a Webhook URL in the panel, looks like this: Copy this URL to the grafana Dingtalk setting page and then click “finish”.

Dingtalk supports the following “message type”: text, link and markdown. Only the link message type is supported.


Notifications can be sent to a Kafka topic from Grafana using the Kafka REST Proxy. There are a couple of configuration options which need to be set up in Grafana UI under Kafka Settings:

  1. Kafka REST Proxy endpoint.

  2. Kafka Topic.

Once these two properties are set, you can send the alerts to Kafka for further processing or throttling.

Google Hangouts Chat

Notifications can be sent by setting up an incoming webhook in Google Hangouts chat. Configuring such a webhook is described here.


Squadcast helps you get alerted via Phone call, SMS, Email and Push notifications and lets you take actions on those alerts. Grafana notifications can be sent to Squadcast via a simple incoming webhook. Refer the official Squadcast support documentation for configuring these webhooks.

Prometheus Alertmanager

Alertmanager handles alerts sent by client applications such as Prometheus server or Grafana. It takes care of deduplicating, grouping, and routing them to the correct receiver. Grafana notifications can be sent to Alertmanager via a simple incoming webhook. Refer to the official Prometheus Alertmanager documentation for configuration information.

Caution: In case of a high-availability setup, do not load balance traffic between Grafana and Alertmanagers to keep coherence between all your Alertmanager instances. Instead, point Grafana to a list of all Alertmanagers, by listing their URLs comma-separated in the notification channel configuration.

Enable images in notifications

Grafana can render the panel associated with the alert rule as a PNG image and include that in the notification. Read more about the requirements and how to configure image rendering.

You must configure an external image storage provider in order to receive images in alert notifications. If your notification channel requires that the image be publicly accessible (e.g. Slack, PagerDuty), configure a provider which uploads the image to a remote image store like Amazon S3, Webdav, Google Cloud Storage, or Azure Blob Storage. Otherwise, the local provider can be used to serve the image directly from Grafana.

Notification services which need public image access are marked as ’external only'.

All alert notifications contain a link back to the triggered alert in the Grafana instance. This URL is based on the domain setting in Grafana.
