Dashboard URL variables

Dashboard URL variables allow you to provide more context when you share a dashboard URL.

For example, you could share a basic URL to your dashboard that looks like this:

https://${your-domain}/path/to/your/dashboard

This allows someone to navigate to the dashboard, but doesn’t provide any helpful context that might be available.

Instead, you can add dashboard variables, passed as query parameters in the dashboard URL, to provide a URL like this:

https://${your-domain}/path/to/your/dashboard?var-example=value

This allows you to provide added context to the dashboard when someone navigates to it.

Variables as query parameters

Grafana interprets query string parameters prefixed with var- as variables in the given dashboard.

For example:

https://${your-domain}/path/to/your/dashboard?var-example=value

In this URL, the query parameter var-example=value represents the dashboard variable example with a value of value.

Multiple values for a variable

To pass multiple values, repeat the variable parameter once for each value:

https://${your-domain}/path/to/your/dashboard?var-example=value1&var-example=value2

Grafana interprets var-example=value1&var-example=value2 as the dashboard variable example with two values: value1 and value2.

Example

This dashboard in Grafana Play passes the variable server with multiple values, and the variables app and interval with a single value each.

Ad hoc filters

Ad hoc filters apply key/value filters to all metric queries that use the specified data source. For more information, refer to Add ad hoc filters.

To pass an ad hoc filter as a query parameter, use the variable syntax to pass the ad hoc filter variable. Then provide the key, operator, and value as a pipe-separated list.

For example:

https://${your-domain}/path/to/your/dashboard?var-adhoc=example_key|=|example_value

In this URL, the query parameter var-adhoc=key|=|value applies the ad hoc filter configured as the adhoc dashboard variable using the example_key key, the = operator, and the example_value value.

Note

When sharing URLs with ad hoc filters, remember to encode the URL. In the preceding example, replace the pipes (|) with %7C and the equality operator (=) with %3D.

Example

This dashboard in Grafana Play passes the ad hoc filter variable adhoc with the filter value datacenter = America.

Time range control using the URL

You can control the time range of a dashboard by providing the following query parameters in the dashboard URL:

  • from - Defines the lower limit of the time range, specified in ms, epoch, or relative time.
  • to - Defines the upper limit of the time range, specified in ms, epoch, or relative time.
  • time and time.window - Defines a time range from time-time.window/2 to time+time.window/2. Both parameters should be specified in ms. For example ?time=1500000000000&time.window=10000 results in a 10-second time range from 1499999995000 to 1500000005000`.
  • timezone - Defines the time zone. For example timezone=Europe/Madrid.

Since these aren’t variables, they don’t require the var- prefix.

The following example shows a dashboard with the time range of the last five minutes:

https://${your-domain}/path/to/your/dashboard?from=now-5m&to=now

When you create dashboard links the dashboard settings, you can have current dashboard variables included in the link by selecting that option:

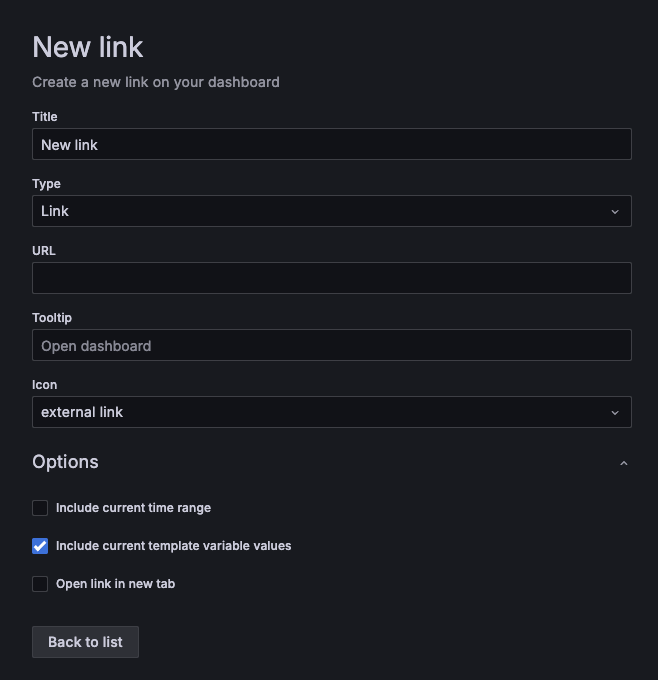

Dashboard link page with variables option selected

For steps to add variables to dashboard links, refer to Manage dashboard links.
