Configure high availability

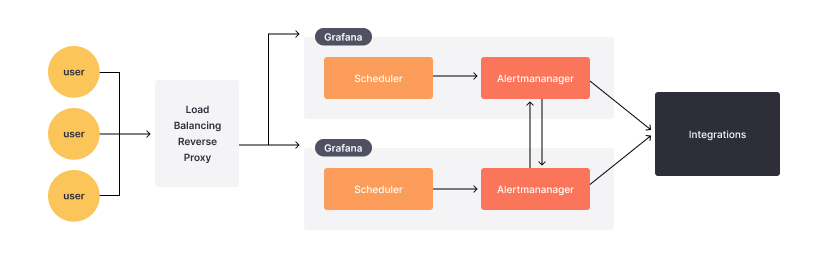

Grafana Alerting uses the Prometheus model of separating the evaluation of alert rules from the delivering of notifications. In this model, the evaluation of alert rules is done in the alert generator and the delivering of notifications is done in the alert receiver. In Grafana Alerting, the alert generator is the Scheduler and the receiver is the Alertmanager.

High availability
High availability

When running multiple instances of Grafana, all alert rules are evaluated on all instances. You can think of the evaluation of alert rules as being duplicated by the number of running Grafana instances. This is how Grafana Alerting makes sure that as long as at least one Grafana instance is working, alert rules are still be evaluated and notifications for alerts are still sent.

You can find this duplication in state history and it is a good way to verify your high availability setup.

While the alert generator evaluates all alert rules on all instances, the alert receiver makes a best-effort attempt to avoid duplicate notifications. The alertmanagers use a gossip protocol to share information between them to prevent sending duplicated notifications.

Alertmanager chooses availability over consistency, which may result in occasional duplicated or out-of-order notifications. It takes the opinion that duplicate or out-of-order notifications are better than no notifications.

Alertmanagers also gossip silences, which means a silence created on one Grafana instance is replicated to all other Grafana instances. Both notifications and silences are persisted to the database periodically, and during graceful shut down.

Enable alerting high availability using Memberlist

Before you begin

Since gossiping of notifications and silences uses both TCP and UDP port 9094, ensure that each Grafana instance is able to accept incoming connections on these ports.

To enable high availability support:

  1. In your custom configuration file ($WORKING_DIR/conf/custom.ini), go to the [unified_alerting] section.
  2. Set [ha_peers] to the number of hosts for each Grafana instance in the cluster (using a format of host:port), for example, ha_peers=10.0.0.5:9094,10.0.0.6:9094,10.0.0.7:9094. You must have at least one (1) Grafana instance added to the ha_peers section.
  3. Set [ha_listen_address] to the instance IP address using a format of host:port (or the Pod’s IP in the case of using Kubernetes). By default, it is set to listen to all interfaces (0.0.0.0).
  4. Set [ha_advertise_address] to the instance’s hostname or IP address in the format “host:port”. Use this setting when the instance is behind NAT (Network Address Translation), such as in Docker Swarm or Kubernetes service, where external and internal addresses differ. This address helps other cluster instances communicate with it. The setting is optional.
  5. Set [ha_peer_timeout] in the [unified_alerting] section of the custom.ini to specify the time to wait for an instance to send a notification via the Alertmanager. The default value is 15s, but it may increase if Grafana servers are located in different geographic regions or if the network latency between them is high.

For a demo, see this example using Docker Compose.

Enable alerting high availability using Redis

As an alternative to Memberlist, you can use Redis for high availability. This is useful if you want to have a central database for HA and cannot support the meshing of all Grafana servers.

  1. Make sure you have a Redis server that supports pub/sub. If you use a proxy in front of your Redis cluster, make sure the proxy supports pub/sub.
  2. In your custom configuration file ($WORKING_DIR/conf/custom.ini), go to the [unified_alerting] section.
  3. Set ha_redis_address to the Redis server address Grafana should connect to.
  4. Optional: Set the username and password if authentication is enabled on the Redis server using ha_redis_username and ha_redis_password.
  5. Optional: Set ha_redis_prefix to something unique if you plan to share the Redis server with multiple Grafana instances.
  6. Optional: Set ha_redis_tls_enabled to true and configure the corresponding ha_redis_tls_* fields to secure communications between Grafana and Redis with Transport Layer Security (TLS).
  7. Set [ha_advertise_address] to ha_advertise_address = "${POD_IP}:9094" This is required if the instance doesn’t have an IP address that is part of RFC 6890 with a default route.

For a demo, see this example using Docker Compose.

Enable alerting high availability using Kubernetes

  1. You can expose the Pod IP through an environment variable via the container definition.

    yaml
    env:
      - name: POD_IP
        valueFrom:
          fieldRef:
            fieldPath: status.podIP
  2. Add the port 9094 to the Grafana deployment:

    yaml
    ports:
      - containerPort: 3000
        name: http-grafana
        protocol: TCP
      - containerPort: 9094
        name: grafana-alert
        protocol: TCP
  3. Add the environment variables to the Grafana deployment:

    yaml
    env:
      - name: POD_IP
        valueFrom:
          fieldRef:
            fieldPath: status.podIP
  4. Create a headless service that returns the Pod IP instead of the service IP, which is what the ha_peers need:

    yaml
    apiVersion: v1
    kind: Service
    metadata:
      name: grafana-alerting
      namespace: grafana
      labels:
        app.kubernetes.io/name: grafana-alerting
        app.kubernetes.io/part-of: grafana
    spec:
      type: ClusterIP
      clusterIP: 'None'
      ports:
        - port: 9094
      selector:
        app: grafana
  5. Make sure your grafana deployment has the label matching the selector, e.g. app:grafana:

  6. Add in the grafana.ini:

    bash
    [unified_alerting]
    enabled = true
    ha_listen_address = "${POD_IP}:9094"
    ha_peers = "grafana-alerting.grafana:9094"
    ha_advertise_address = "${POD_IP}:9094"
    ha_peer_timeout = 15s
    ha_reconnect_timeout = 2m

Verify your high availability setup

When running multiple Grafana instances, all alert rules are evaluated on every instance. This multiple evaluation of alert rules is visible in the state history and provides a straightforward way to verify that your high availability configuration is working correctly.

Note

If using a mix of execute_alerts=false and execute_alerts=true on the HA nodes, since the alert state is not shared amongst the Grafana instances, the instances with execute_alerts=false do not show any alert status.

The HA settings (ha_peers, etc.) apply only to communication between alertmanagers, synchronizing silences and attempting to avoid duplicate notifications, as described in the introduction.

You can also confirm your high availability setup by monitoring Alertmanager metrics exposed by Grafana.

MetricDescription
alertmanager_cluster_membersNumber indicating current number of members in cluster.
alertmanager_cluster_messages_received_totalTotal number of cluster messages received.
alertmanager_cluster_messages_received_size_totalTotal size of cluster messages received.
alertmanager_cluster_messages_sent_totalTotal number of cluster messages sent.
alertmanager_cluster_messages_sent_size_totalTotal number of cluster messages received.
alertmanager_cluster_messages_publish_failures_totalTotal number of messages that failed to be published.
alertmanager_cluster_pings_secondsHistogram of latencies for ping messages.
alertmanager_cluster_pings_failures_totalTotal number of failed pings.
alertmanager_peer_positionThe position an Alertmanager instance believes it holds, which defines its role in the cluster. Peers should be numbered sequentially, starting from zero.

You can confirm the number of Grafana instances in your alerting high availability setup by querying the alertmanager_cluster_members and alertmanager_peer_position metrics.

Note that these alerting high availability metrics are exposed via the /metrics endpoint in Grafana, and are not automatically collected or displayed. If you have a Prometheus instance connected to Grafana, add a scrape_config to scrape Grafana metrics and then query these metrics in Explore.

yaml
- job_name: grafana
  honor_timestamps: true
  scrape_interval: 15s
  scrape_timeout: 10s
  metrics_path: /metrics
  scheme: http
  follow_redirects: true
  static_configs:
    - targets:
        - grafana:3000

For more information on monitoring alerting metrics, refer to Alerting meta-monitoring. For a demo, see alerting high availability examples using Docker Compose.

Prevent duplicate notifications

In high-availability mode, each Grafana instance runs its own pre-configured alertmanager to handle alert notifications.

When multiple Grafana instances are running, all alert rules are evaluated on each instance. By default, each instance sends firing alerts to its respective alertmanager. This results in notification handling being duplicated across all running Grafana instances.

Alertmanagers in HA mode communicate with each other to coordinate notification delivery. However, this setup can sometimes lead to duplicated or out-of-order notifications. By design, HA prioritizes sending duplicate notifications over the risk of missing notifications.

To avoid duplicate notifications, you can configure a shared alertmanager to manage notifications for all Grafana instances. For more information, refer to add an external alertmanager.
