prometheus.exporter.gcp
The prometheus.exporter.gcp
component embeds stackdriver_exporter
.
It lets you collect GCP Cloud Monitoring (formerly stackdriver), translate them to prometheus-compatible format and remote write.
The component supports all metrics available via the GCP monitoring API.
Metric names follow the template stackdriver_<monitored_resource>_<metric_type_prefix>_<metric_type>
.

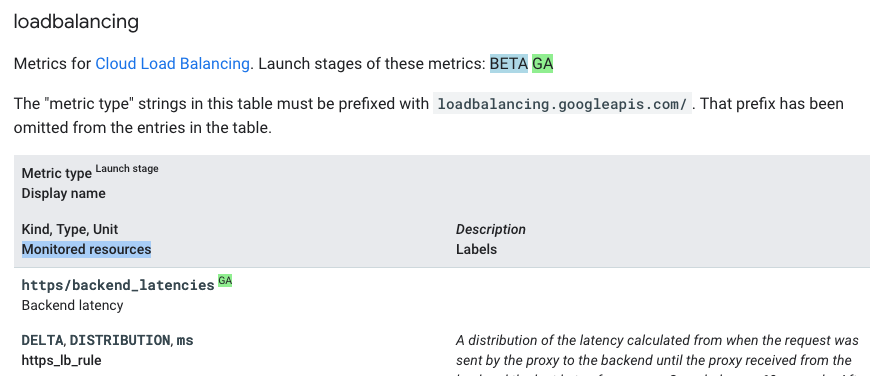

The following example shows a load balancing metric:
![Example GCP exporter configuration metric](/media/docs/alloy/gcp-exporter-config-metric-example.png)
The following list shows its attributes:
monitored_resource = https_lb_rule
metric_type_prefix = loadbalancing.googleapis.com/
metric_type = https/backend_latencies
These attributes result in a final metric name of stackdriver_https_lb_rule_loadbalancing_googleapis_com_https_backend_latencies
Authentication
Alloy must be running in an environment with access to the GCP project it’s scraping. The exporter uses the Google Golang Client Library, which offers a variety of ways to provide credentials. Choose the option that works best for you.
After deciding how Alloy will obtain credentials, ensure the account is set up with the IAM role roles/monitoring.viewer
.
Since the exporter gathers all of its data from GCP monitoring APIs, this is the only permission needed.
Usage
prometheus.exporter.gcp "pubsub" {
project_ids = [
"foo",
"bar",
]
metrics_prefixes = [
"pubsub.googleapis.com/snapshot",
"pubsub.googleapis.com/subscription/num_undelivered_messages",
"pubsub.googleapis.com/subscription/oldest_unacked_message_age",
]
}
Arguments
You can use the following arguments to configure the exporter’s behavior. Omitted fields take their default values.
Note
If you are supplying a list of strings for the
extra_filters
argument, any string values within a particular filter string must be enclosed in escaped double quotes. For example,loadbalancing.googleapis.com:resource.labels.backend_target_name="sample-value"
must be encoded as"loadbalancing.googleapis.com:resource.labels.backend_target_name=\"sample-value\""
in the Alloy configuration.
For extra_filters
, the targeted_metric_prefix
is used to ensure the filter is only applied to the metric_prefix(es) where it makes sense.
It doesn’t explicitly have to match a value from metric_prefixes
, but the targeted_metric_prefix
must be at least a prefix to one or more metric_prefixes
.
The filter_query
is applied to a final metrics API query when querying for metric data.
The final query sent to the metrics API already includes filters for project and metric type.
Each applicable filter_query
is appended to the query with an AND.
You can read more about the metric API filter options in the GCP documentation.
For request_interval
, most of the time the default works perfectly fine.
Most documented metrics include a comments of the form Sampled every X seconds. After sampling, data is not visible for up to Y seconds.
As long as your request_interval
is >= Y
you should have no issues.
Consider using ingest_delay
if you would like this to be done programmatically or are gathering slower moving metrics.
For ingest_delay
, you can find the values for this in documented metrics as After sampling, data is not visible for up to Y seconds.
Since the GCP ingestion delay is an “at worst”, this is off by default to ensure data is gathered as soon as it’s available.
Exported fields
The following fields are exported and can be referenced by other components.
For example, the targets
can either be passed to a discovery.relabel
component to rewrite the targets’ label sets or to a prometheus.scrape
component that collects the exposed metrics.
The exported targets use the configured in-memory traffic address specified by the run command.
Component health
prometheus.exporter.gcp
is only reported as unhealthy if given an invalid configuration.
In those cases, exported fields retain their last healthy values.
Debug information
prometheus.exporter.gcp
doesn’t expose any component-specific debug information.
Debug metrics
prometheus.exporter.gcp
doesn’t expose any component-specific debug metrics.
Examples
prometheus.exporter.gcp "lb_with_filter" {
project_ids = [
"foo",
"bar",
]
metrics_prefixes = [
"loadbalancing.googleapis.com",
]
extra_filters = [
"loadbalancing.googleapis.com:resource.labels.backend_target_name=\"sample-value\"",
]
}
prometheus.exporter.gcp "lb_subset_with_filter" {
project_ids = [
"foo",
"bar",
]
metrics_prefixes = [
"loadbalancing.googleapis.com/https/request_bytes_count",
"loadbalancing.googleapis.com/https/total_latencies",
]
extra_filters = [
"loadbalancing.googleapis.com:resource.labels.backend_target_name=\"sample-value\"",
]
}
Compatible components
prometheus.exporter.gcp
has exports that can be consumed by the following components:
- Components that consume Targets
Note
Connecting some components may not be sensible or components may require further configuration to make the connection work correctly. Refer to the linked documentation for more details.
