Storage schema

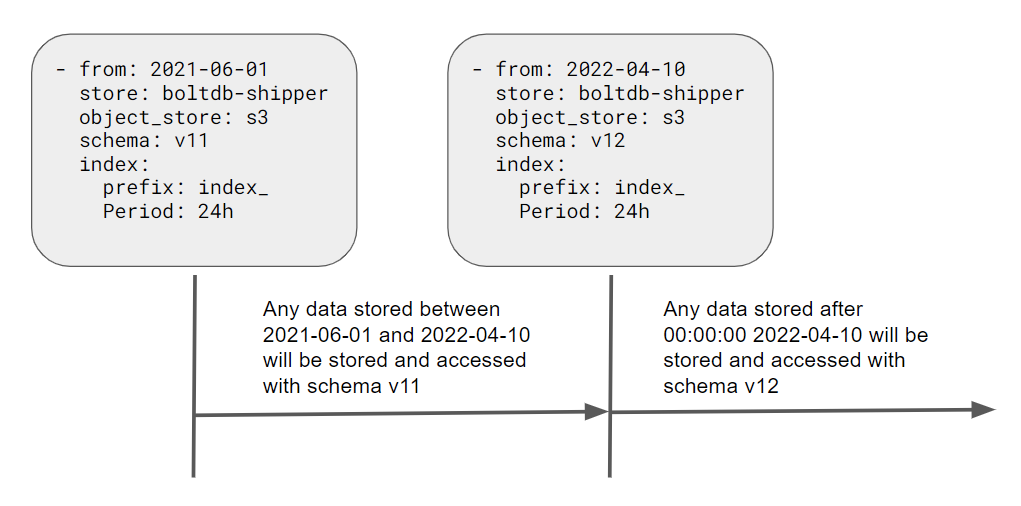

To support iterations over the storage layer contents, Loki has a configurable storage schema. The schema is defined to apply over periods of time. A from value marks the starting point of that schema. The schema is active until another entry defines a new schema with a new from date.

schema_example

Loki uses the defined schemas to determine which format to use when storing and querying the data.

Use of a schema allows Loki to iterate over the storage layer without requiring migration of existing data.

New Loki installs

For a new Loki install with no previous data, here is an example schema configuration with recommended values

schema_config:
  configs:
    - from: 2024-04-01
      object_store: s3
      store: tsdb
      schema: v13
      index:
        prefix: index_
        period: 24h
PropertyDescription
fromfor a new install, this must be a date in the past, use a recent date. Format is YYYY-MM-DD.
object_stores3, azure, gcs, alibabacloud, bos, cos, swift, filesystem, or a named_store (see StorageConfig).
storetsdb is the current and only recommended value for store.
schemav13 is the most recent schema and recommended value.
prefix:any value without spaces is acceptable.
period:must be 24h.

Changing the schema

Here are items to consider when changing the schema; if schema changes are not done properly, a scenario can be created which prevents data from being read.

  • Always set the from date in the new schema to a date in the future.

    The from date is interpreted by Loki to start at 00:00:00 UTC. Therefore, Loki must have a date in the future to be able to transition to the new schema when that date and time arrives.

    Be aware of your relation to UTC when using the current date. Make sure that UTC 00:00:00 has not already passed for your current date.

    As an example, assume that the current date is 2022-04-10, and you want to update to the v13 schema, so you restart Loki with 2022-04-11 as the from date for the new schema. If you forget to take into account that your timezone is UTC -5:00 and it’s currently 20:00 hours in your local timezone, that is actually 2022-04-11T01:00:00 UTC. When Loki starts it will see the new schema and begin to write and store objects following that new schema. If you then try to query data that was written between 00:00:00 and 01:00:00 UTC, Loki will use the new schema and the data will be unreadable, because it was created with the previous schema.

  • You cannot undo or roll back a schema change.

    Any data written with an active schema can only be read by that schema. If you wish to return to the previous schema; you can add another new entry with the previous schema settings.

Schema configuration example

schema_config:
  configs:
    - from: "2020-07-31"
      index:
        period: 24h
        prefix: loki_ops_index_
      object_store: gcs
      schema: v11
      store: tsdb
    - from: "2022-01-20"
      index:
        period: 24h
        prefix: loki_ops_index_
      object_store: gcs
      schema: v13
      store: tsdb
