Configure the Grafana Pyroscope data source
To configure basic settings for the data source, complete the following steps:
Click Connections in the left-side menu.
Under Your connections, click Data sources.
Enter
Grafana Pyroscope
in the search bar.Click Grafana Pyroscope to display the Settings tab of the data source.
Set the data source’s basic configuration options:
Name Description Name
A name to specify the data source in panels, queries, and Explore. Default
The default data source will be pre-selected for new panels. URL
The URL of the Grafana Pyroscope instance, for example, http://localhost:4100
.Basic Auth

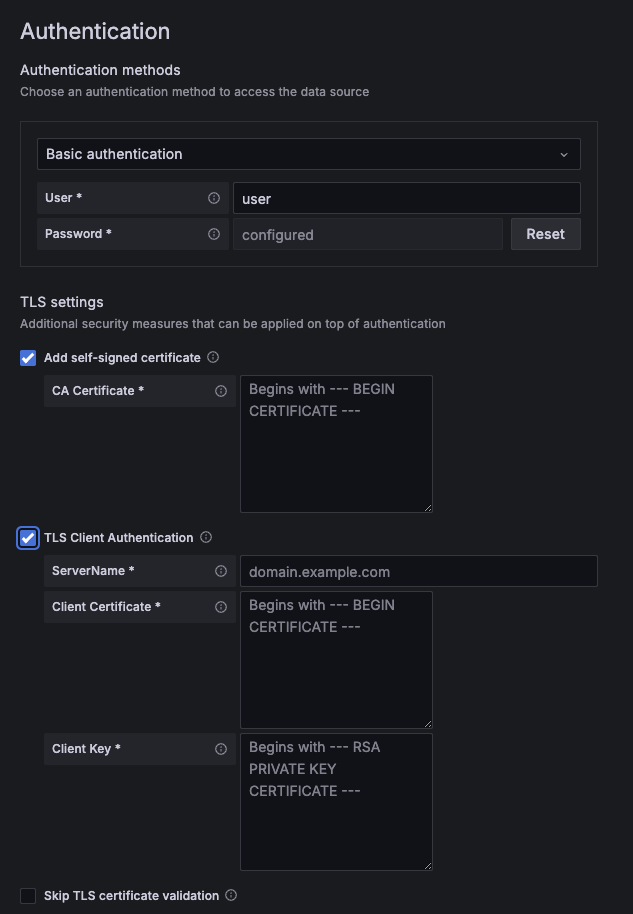

Enable basic authentication to the data source. User
User name for basic authentication. Password
Password for basic authentication. Minimal step
Used for queries returning timeseries data. The Pyroscope backend, similar to Prometheus, scrapes profiles at certain intervals. To prevent querying at smaller interval, use Minimal step same or higher than your Pyroscope scrape interval. This prevents returning too many data points to the frontend.
